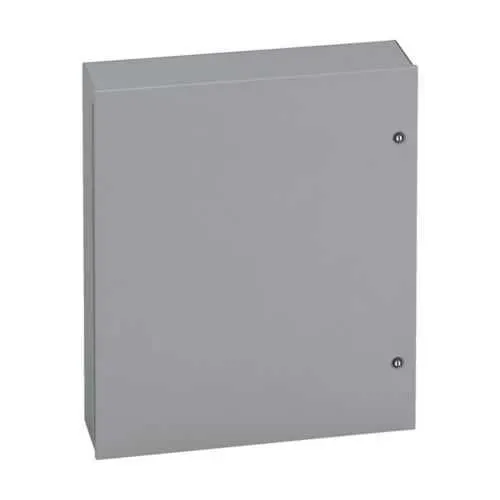

Eaton 423613-1 Panel Enclosures - NEMA 1 Type 1
Part Number: 423613-1
Quick Summary
Panel enclosures like the Eaton 423613-1 protect electrical components in industrial control panels. Design teams often struggle with secure mounting, environmental exposure, and staying compliant across varied facilities. It meets UL 50, CSA C22.2, and NEMA ratings, providing reliable, code-aligned performance for everyday control cabinet needs. With a wall-mount, hinged-cover design and a durable 14 gauge carbon steel body finished in ANSI 61 gray, it supports maintenance efficiency and lifecycle cost reduction while ensuring a professional, compliant appearance in the plant floor or electrical room.
Product Information
Extended Description
423613-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 42" height, 13" length, 36" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
423613-1
UPC
782051088915
Product Length/Depth
13 in
Product Height
42 in
Product Width
36 in
Product Weight
125.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Durable carbon steel construction with 14 gauge wall thickness and painted ANSI 61 gray finish → Business impact: Provides robust protection against impacts and corrosion, extending service life in manufacturing environments. Application: Ideal for 42 in x 36 in x 13 in control panels in production lines. Feature: Large, standard enclosure dimensions (42 in height, 36 in width, 13 in depth) and 125.8 lb weight → Business impact: Facilitates easy component layout and wiring, reducing installation time and rework. Application: Suitable for medium single-door configurations in wall-mounted cabinets. Feature: UL 50, CSA C22.2 and NEMA ratings → Business impact: Ensures regulatory compliance and safer operation, lowering risk, audits, and downtime. Application: Used in facilities requiring formal enclosure approvals and traceable certification. Feature: Hinged cover with keyhole mounting slots → Business impact: Quick, secure access for maintenance and upgrades, minimizing system downtime. Application: Fast serviceability in busy control rooms and on the production floor. Feature: Color and finish features (ANSI 61 gray paint) and overall aesthetics → Business impact: Improves visibility and ease of cleaning, reducing maintenance labor. Application: White-glove compliant installations in regulated environments. Insight: The combination of wall-mount capability, hinged access, and standard dimensions supports straightforward retrofit and compatibility with a wide range of Eaton B-Line accessories and internal components, delivering predictable project timelines and cost savings.
Get a Quick Quote for a Eaton 423613-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 423613-1?
Enquire Now
FAQs
The 423613-1 supports wall mounting with a hinged cover and keyhole slots for secure attachment. This configuration enables fast access for routine maintenance while keeping the enclosure securely fixed to the wall, simplifying retrofits in existing control rooms or new installations.
The enclosure measures 42 inches high, 36 inches wide, and 13 inches deep, with a weight of 125.8 pounds. It is constructed from 14-gauge carbon steel and finished in ANSI 61 gray paint for durability and visibility in typical industrial settings.
This Type 1 enclosure is certified to UL 50, CSA C22.2, and NEMA standards, offering reliable indoor protection for electrical components. It is designed for regulated environments, though it is not IP-rated for outdoor exposure; suitable for controlled indoor facilities.
Expect UL 50, CSA C22.2, and NEMA ratings, with a NEMA 1 enclosure class. These certifications support safe operation, code compliance, and audit readiness in most indoor industrial facilities and electrical rooms.
The hinged cover and secure mounting reduce maintenance downtime by providing quick access to internal components. Its durable carbon steel construction and standard dimensions support long service life, lower replacement frequency, and predictable installation costs, improving overall lifecycle return on investment for control panels.
