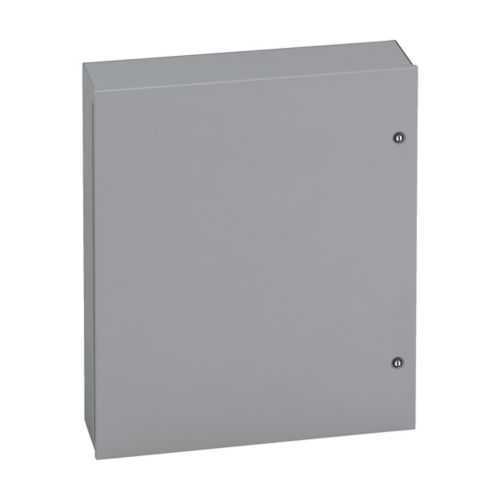

Eaton 42369-1 Panel Enclosures - NEMA 1 Certified
Part Number: 42369-1
Quick Summary
Eaton 42369-1 panel enclosures provide secure NEMA 1 protection for wall-mounted electrical panels. This solution reduces field rework and installation delays in tight spaces by delivering quick access with a hinged cover. Certified to UL 50, CSA C22.2, and NEMA standards, these enclosures meet core reliability and safety requirements. Built from carbon steel with a 14-gauge wall, they balance durability with cost efficiency. Their 42 in height, 36 in width, and 9 in depth support sizable control panels while enabling straightforward mounting and maintenance. Ideal for industrial automation, commercial electrical rooms, and service bays, they pair with B-Line accessories to streamline installations.
Product Information
Extended Description
42369-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 42" height, 9" length, 36" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
42369-1
UPC
782051088878
Product Length/Depth
9 in
Product Height
42 in
Product Width
36 in
Product Weight
111.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Type 1 enclosure with hinged cover and NEMA 1 rating; Benefit: code-compliant protection reduces risk of dust and ingress while enabling rapid access for maintenance; Application: ideal for wall-mounted control panels in manufacturing floors and service areas. Feature: 14 gauge carbon steel construction with ANSI 61 gray painted finish; Benefit: rugged durability and predictable corrosion resistance that extend service life in harsh environments; Application: long-term installations in industrial facilities. Feature: Wall-mount design with keyhole slots; Benefit: flexible, fast installation and easy relocation or reconfiguration without structural work; Application: spaces with evolving electrical layouts. Feature: Medium single door configuration; Benefit: optimized internal clearance for common panel components and simplified wiring management; Application: standard control panels and electrical closets. Feature: Dimensions and weight (42 in x 36 in x 9 in; 111.8 lb); Benefit: clear space planning and transport fit, enabling efficient onsite logistics; Application: projects with limited footprints and strict space constraints. Feature: Certifications UL 50, CSA C22.2, NEMA; Benefit: robust regulatory compliance and confident audits; Application: regulated facilities in manufacturing, data centers, and commercial buildings. The combination of compatibility with B-Line accessories and standard mounting features supports scalable deployments and future upgrades.
Get a Quick Quote for a Eaton 42369-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 42369-1?
Enquire Now
FAQs
The 42369-1 employs a wall-mount design with keyhole slots for flexible positioning and quick installation. The hinged cover provides easy access to internal components, reducing maintenance time. This enclosure accommodates standard electrical components and aligns with B-Line accessories, enabling scalable layouts without custom mounting hardware.
Yes. The 42369-1 is certified to UL 50, CSA C22.2, and carries a NEMA 1 rating, indicating sealed protection suitable for light indoor environments. This combination ensures regulatory compliance, predictable performance, and safer operation in typical office, commercial, and light industrial spaces.
Industries focused on control panel assemblies, electrical rooms, and machine automation benefit most. The enclosure supports standard electrical components, provides durable housing against dust and incidental impacts, and integrates smoothly with B-Line system accessories for scalable control cabinets in manufacturing, processing plants, and facilities management.
The enclosure meets UL 50, CSA C22.2, and NEMA standards. These certifications simplify supplier qualification and internal audits by clearly demonstrating compliance with recognized industry safety and performance requirements, reducing the need for additional impedance testing and enabling smoother regulatory reviews during facility inspections.
The hinged door and accessible internal space reduce troubleshooting and routine maintenance time, translating into higher uptime. Durable carbon steel construction and standard mounting options minimize lifecycle replacement costs, while compatibility with accessories enables efficient upgrades and reconfiguration, delivering measurable return on investment through lower labor and material expenses over the enclosure’s life.
