Eaton 4412-4XSFW Wireway - 304 Stainless Steel NEMA 4X
Part Number: 4412-4XSFW
Quick Summary

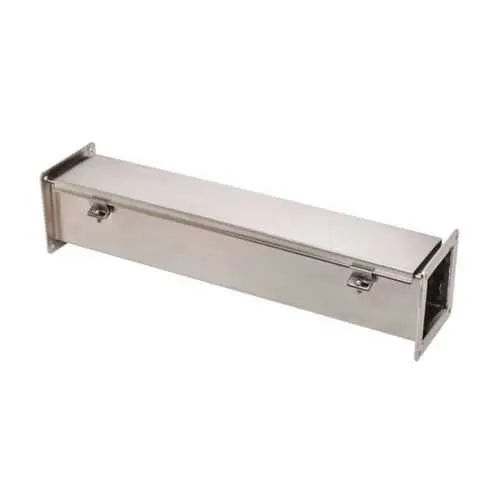

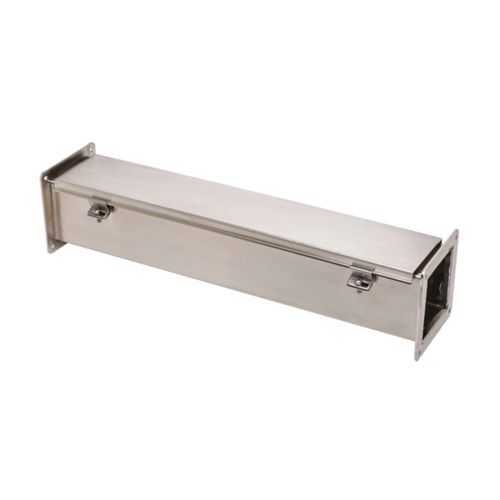

The Eaton 4412-4XSFW wireway provides rugged protection for electrical wiring in industrial spaces. Cramped equipment rooms and exposed cables can complicate maintenance and safety; this enclosure addresses those challenges with a robust, corrosion-resistant solution. It carries CSA C22.2 UL Listed certification and is NEMA 4X rated, reinforcing reliability in harsh environments. By integrating with the B-Line wireway family, it enables scalable, code-compliant installations while delivering straightforward access and long-term maintenance advantages for panel and conduit layouts.
Product Information
Extended Description
4412-4XSFW Eaton: Eaton B-Line series wireway, 4" height, 12" length, 4" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
4412-4XSFW
UPC
782051134254
Product Length/Depth
12 in
Product Height
4 in
Product Width
4 in
Product Weight
4.912 lb
Certifications
CSA C22.2. UL Listed
Material thickness
16 gauge
Finish color
#4 brushed
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured by hinges, screwclamps&s.s. hardware
Type
4XSFW wireway
NEMA 4X stainless steel construction with 16 gauge material delivers superior corrosion resistance and durability, reducing replacement cycles and downtime in outdoor or washdown areas. The hinged cover with screw clamps and stainless hardware provides quick, secure access to routed cables, accelerating maintenance and changeouts without sacrificing enclosure integrity. A wireway hanger mounting system supports flexible, clean installations across walls and ceilings, improving workflow and space utilization in crowded electrical rooms. The 12 in length by 4 in height and 4 in width (4XSFW) cross-section fits common control panels and equipment bays, while seamless poured-in-place construction minimizes gaps and potential ingress paths. Certification compliance (CSA C22.2 UL Listed) and the NEMA 4X rating help ensure regulatory alignment and long-term reliability for industrial applications. Compatibility with other B-Line accessories extends future-proofing and simplifies retrofits, reducing total cost of ownership.
Get a Quick Quote for a Eaton 4412-4XSFW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4412-4XSFW?
Enquire Now
FAQs
Install the 4412-4XSFW using the included wireway hanger mounting where feasible, position the channel to align with equipment, and secure the hinged cover with the provided screw clamps and stainless hardware. Ensure seals and closures are properly engaged to maintain the NEMA 4X rating, then route cables with minimal bending radii to prevent damage.
Yes. The 4412-4XSFW features a 304 stainless steel construction with a NEMA 4X rating and a #4 brushed finish, delivering strong corrosion resistance and protection against water and dust ingress in harsh outdoor or washdown environments, while maintaining easy cable access through its hinged cover.
The product is CSA C22.2 UL Listed, ensuring compliance with electrical safety standards. The NEMA 4X rating confirms suitability for harsh, corrosive environments, supporting longer service life and reduced regulatory risk in industrial facilities.
The wireway has a 12 inch length, 4 inch height, and 4 inch width, forming a 4XSFW cross-section. It uses 16 gauge thickness of 304 stainless steel and weighs approximately 4.912 pounds, offering a compact yet sturdy enclosure for tight spaces.
Intended for long service life in demanding environments, the 4412-4XSFW reduces maintenance and replacement costs through corrosion resistance, a hinged cover for quick access, and compatibility with B-Line accessories for scalable, low-downtime wiring solutions.
