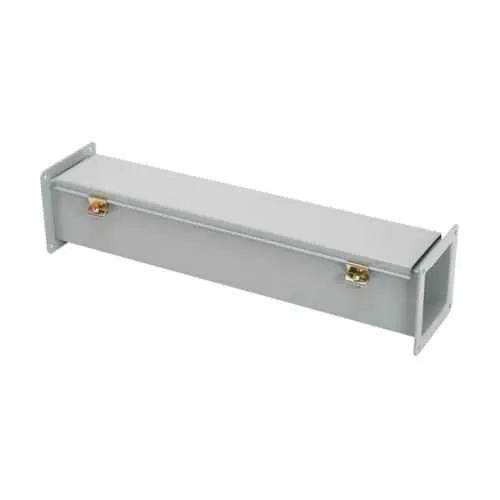

Eaton 4424-12FW Wireway - Hinged Cover, UL Listed, NEMA 12
Part Number: 4424-12FW
Quick Summary
Eaton 4424-12FW Wireway provides rugged cable routing for industrial enclosures. In busy plants, cramped spaces and frequent access drive the need for dependable, easy-to-service wire management. This model carries UL Listed and CSA C22.2 certifications alongside a NEMA 12 rating, ensuring reliable protection against dust and light liquids in harsh environments. Built from 14-gauge steel with an ANSI 61 gray finish, it delivers tough durability while keeping maintenance simple. The hinged cover and heavy-duty clamps support quick inspections and fast reconfigurations, and the wireway hanger mounting method streamlines installation within Eaton's B-Line system. For engineers and maintenance teams, it translates to reduced downtime and safer, neater panel wiring across demanding facilities.
Product Information
Extended Description
4424-12FW Eaton: Eaton B-Line series wireway, 4" height, 24" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
4424-12FW
UPC
782051109450
Product Length/Depth
24 in
Product Height
4 in
Product Width
4 in
Product Weight
10.649 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured with heavy-duty hinges&screw clamps
Type
12FW wireway
Feature: 4 in height, 4 in width, 24 in length; 12FW wireway. Business Impact: Compact footprint optimizes enclosure real estate and simplifies cable routing in cramped electrical rooms. Application: Control panels and machine enclosures where space is at a premium. Feature: Hinged cover with heavy-duty hinges and screw clamps. Business Impact: Enables rapid access for inspections and maintenance, reducing downtime. Application: Regular cabling reconfigurations and troubleshooting. Feature: 14 gauge steel with ANSI 61 gray finish. Business Impact: Durable, corrosion-resistant enclosure component with a consistent industry appearance. Application: Harsh manufacturing environments requiring long-term reliability. Feature: Wireway hanger mounting method. Business Impact: Simplifies installation and alignment, minimizing field fit issues. Application: New installations and retrofits within standard B-Line frameworks. Feature: Certifications CSA C22.2 and UL Listed. Business Impact: Ensures regulatory compliance and risk mitigation in regulated facilities. Application: Projects with stringent electrical safety standards and inspection requirements. Feature: Seamless poured-in-place construction. Business Impact: Enhanced structural integrity and cover alignment for reliable service life. Application: Heavy-use industrial settings demanding dependable protection of interior cables.
Get a Quick Quote for a Eaton 4424-12FW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4424-12FW?
Enquire Now
FAQs
The 4424-12FW uses a wireway hanger mounting method and a hinged cover secured with heavy-duty hinges and screw clamps. For installation, mount the section to the enclosure framework using standard hangers, align the cover, and secure with the clamps. Verify the 14 gauge steel body is properly seated and test hinge operation to ensure smooth, serviceable access during maintenance.
Key specs include a 4 inch height, 4 inch width, and 24 inch length, forming a 12FW wireway. It features 14 gauge steel construction with ANSI 61 gray finish, NEMA 12 rating, and is UL Listed along with CSA C22.2. The catalog number is 4424-12FW and it weighs about 10.649 pounds, with a hinged cover for easy access.
Yes. The NEMA 12-rated design provides dust and light liquid protection, while the ANSI 61 gray finish on 14 gauge steel offers durable, factory-grade compatibility. The hinged cover and heavy-duty clamps support frequent access without compromising enclosure integrity, making it well-suited for demanding manufacturing settings and long service life.
The 4424-12FW is UL Listed and CSA C22.2 compliant. These certifications indicate compliance with recognized safety standards, reducing regulatory risk and providing assurance for regulated facilities. The combination supports safer installations, easier audits, and peace of mind when integrating into critical electrical enclosures.
The hinged cover enables rapid inspections and reconfigurations, reducing maintenance downtime. Its 14 gauge steel construction provides durable protection for cables, lowering replacement and repair costs over time. When used within Eaton's B-Line family, it offers scalable, modular routing that aligns with lifecycle cost reduction and streamlined facility upgrades.
