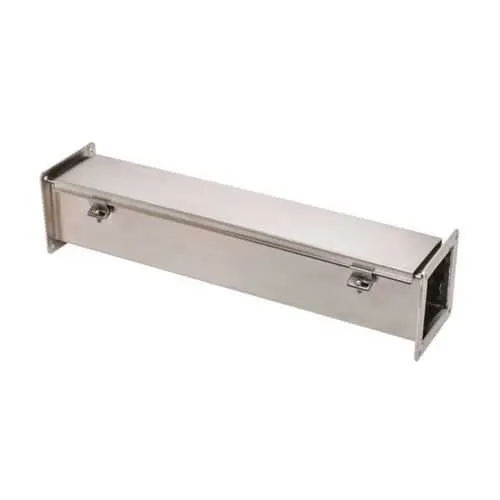

Eaton 4424-4XSFW Wireway - NEMA 4X, 304 Stainless
Part Number: 4424-4XSFW
Quick Summary
Eaton B-Line series wireway delivers rugged, organized cable routing for industrial enclosures. Many installations struggle with moisture, dust ingress, and corrosion that threaten reliability and uptime. This model carries a NEMA 4X rating and is UL Listed and CSA C22.2 certified, with durable 304 stainless steel construction for long service life. Designed for harsh environments, it integrates with Eaton wireway systems and provides easy access, reducing maintenance time while protecting critical power and control cabling. For manufacturers and integrators, this wireway delivers reliable protection, clean installations, and measurable improvements in site reliability and total cost of ownership.
Product Information
Extended Description
4424-4XSFW Eaton: Eaton B-Line series wireway, 4" height, 24" length, 4" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
4424-4XSFW
UPC
782051134261
Product Length/Depth
24 in
Product Height
4 in
Product Width
4 in
Product Weight
8.498 lb
Certifications
CSA C22.2. UL Listed
Material thickness
16 gauge
Finish color
#4 brushed
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured by hinges, screwclamps&s.s. hardware
Type
4XSFW wireway
Eaton B-Line 4XSFW wireway uses 304 stainless steel with a 16 gauge thickness, delivering superior corrosion resistance and structural integrity in wet or dusty environments. Feature → Business Impact → Application: The 304 stainless steel, seamless poured-in-place construction minimizes seams where contaminants can collect, boosting cleanliness and reducing maintenance cycles in food processing and pharma lines. Feature → Business Impact → Application: NEMA 4X enclosure rating provides dependable protection against moisture and corrosion, translating to longer service life and lower replacement costs in outdoor or wash-down areas. Feature → Business Impact → Application: Hinged cover with screw clamps and stainless hardware enables quick access for inspections and maintenance, reducing downtime on production lines and improving changeover efficiency in manufacturing. Feature → Business Impact → Application: 4 in by 4 in by 24 in footprint fits compact enclosures while maintaining ample cable capacity, easing retrofits and new installs in electrical rooms and control panels. Feature → Business Impact → Application: Wireway hanger mounting simplifies installation within existing B-Line systems, speeding up project timelines and ensuring robust support for vertical and horizontal runs. Feature → Business Impact → Application: The 16 gauge thickness and 304 stainless steel finish (#4 brushed) meet industry expectations for durability and aesthetics in industrial environments, supporting long-term asset protection and easier surface cleaning.
Get a Quick Quote for a Eaton 4424-4XSFW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4424-4XSFW?
Enquire Now
FAQs
To install the 4424-4XSFW wireway, mount the sections using the provided wireway hanger hardware within your B-Line system. Use the hinged cover for quick access during maintenance, and secure with the included screw clamps and stainless steel hardware to maintain a tight, corrosion-resistant assembly. Ensure mating flanges and compatible accessories are aligned to preserve NEMA 4X integrity.
Key specs include 4 inch by 4 inch cross-section, 24 inch length, 16 gauge material thickness, and 304 stainless steel construction finished in #4 brushed. The assembly supports NEMA 4X enclosure protection and UL CSA certifications, providing reliable service in wet or dusty environments while maintaining structural rigidity and ease of cleaning.
Yes. The 4424-4XSFW is designed for harsh environments with a NEMA 4X rating and 304 stainless steel construction, which resist moisture, corrosion, and wash-down processes. This makes it appropriate for outdoor installations, food and beverage processing, and other demanding industrial settings where reliable enclosure protection is required.
The 4424-4XSFW carries UL listed and CSA C22.2 certifications, ensuring compliance with recognized safety standards. These certifications provide confidence in electrical protection, material integrity, and performance under typical industrial conditions, which is critical for regulated facilities and procurement requirements.
The combination of 304 stainless steel, 16 gauge thickness, and a hinged cover minimizes corrosion risk and simplifies inspections, reducing maintenance downtime. Over the life of a system, this translates to lower replacement costs, fewer unscheduled outages, and a higher return on investment through improved uptime and asset longevity.
