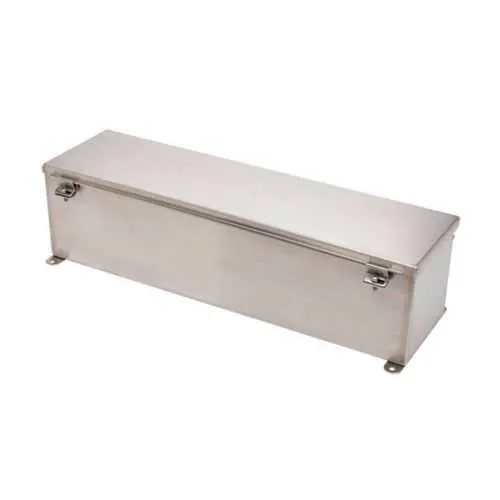

Eaton 4424-4XSWT Wiring Trough - NEMA 4X, 304 Stainless
Part Number: 4424-4XSWT
Quick Summary
Eaton B-Line series wiring trough provides durable cable management for industrial control panels and electrical enclosures. Engineers often grapple with corrosion, difficult mounting alignment, and limited access in tight spaces, which can drive maintenance costs and downtime. This model carries CSA C22.2 UL Listed certification, a NEMA 4X rating, and is fabricated from 304 stainless steel to withstand washdown environments and long service life. By aligning with Eaton’s B-Line system, it delivers faster installation, reduced field rewiring, and predictable performance over the equipment life cycle. For panel builders and service teams, it translates to lower total cost of ownership and more reliable enclosure integrity.
Product Information
Extended Description
4424-4XSWT Eaton: Eaton B-Line series wiring trough, 4" height, 24" length, 4" width, 4XSWT wiring trough, Welded external mounting feet, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 14 gauge
Product Name
Eaton B-Line series wiring trough
Catalog Number
4424-4XSWT
UPC
782051172126
Product Length/Depth
24 in
Product Height
4 in
Product Width
4 in
Product Weight
11.362 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
#4 brushed
Closure type
Hinged
Special features
Cover heldby semi-hinges,screw clamps,s.s hardware
Type
4XSWT wiring trough
Feature → Business Impact → ApplicationFeature: 4XSWT form factor with 4 in height, 4 in width, and 24 in length, constructed from 14 gauge 304 stainless steel. Benefit: Robust structural strength and corrosion resistance in harsh environments, reducing replacement cycles and warranty exposure. Application: Ideal for control panels and process enclosures in food and beverage, chemical, and manufacturing facilities where washdown is common.Feature: Hinged cover with welded external mounting feet and semi-hinged cover design, plus screw clamps and stainless steel hardware. Benefit: Quick access for inspection and maintenance without compromising enclosure integrity, shortening downtime and labor costs. Application: Routine wiring reconfiguration and routine servicing on assembly lines and packaging equipment.Feature: Seamless poured in place fabrication and #4 brushed finish. Benefit: Eliminates crevices that trap dust or moisture, improving hygiene and long-term reliability, while delivering a professional appearance. Application: Environments requiring easy cleaning and aesthetic consistency, including clean rooms and automated packaging lines.Feature: CSA C22.2 UL Listed certification and NEMA 4X rating. Benefit: Compliance with critical electrical standards and proven protection against dust, water, and corrosion. Application: Industrial facilities with stringent safety audits and outdoor or washdown exposure.Feature: Compatibility with Eaton B-Line series accessories and mounting methods. Benefit: Faster installation, fewer custom parts, and scalable configurations to support evolving wiring needs. Application: Panel builders integrating the trough into larger B-Line layouts for multi-line automation systems.
Get a Quick Quote for a Eaton 4424-4XSWT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4424-4XSWT?
Enquire Now
FAQs
The 4424-4XSWT features welded external mounting feet and a hinged cover with semi-hinges and screw clamps, enabling secure, tool-friendly installation. Its 24 inch length and 4x4 inch footprint fit standard panel openings, while the #4 brushed stainless finish simplifies cleaning in washdown environments. This design supports quick reconfiguration during panel expansion or maintenance without sacrificing enclosure integrity.
This wiring trough is CSA C22.2 UL Listed and NEMA 4X rated, demonstrating compliance with industry safety standards and suitability for harsh environments. Constructed from 304 stainless steel with a 14 gauge thickness, it provides robust corrosion resistance and long service life in demanding facilities such as manufacturing and processing plants.
Yes. The unit’s NEMA 4X rating, combined with 304 stainless steel construction and a seamless fabrication process, makes it appropriate for outdoor installations and washdown areas. The hinged cover and stainless hardware maintain protection against dust, moisture, and chemical exposure while ensuring easy access for maintenance.
The wiring trough measures 24 inches in length with a height of 4 inches and a width of 4 inches. It uses 14 gauge 304 stainless steel and weighs approximately 11.362 pounds, offering a sturdy yet manageable profile for mounting on equipment racks and control panels.
The 4424-4XSWT is designed for seamless compatibility with Eaton B-Line series accessories, including welded external mounting feet and compatible covers. This supports scalable, modular wiring layouts, simplifies installation alongside other B-Line enclosures, and reduces the need for custom fabrication or adapters.
