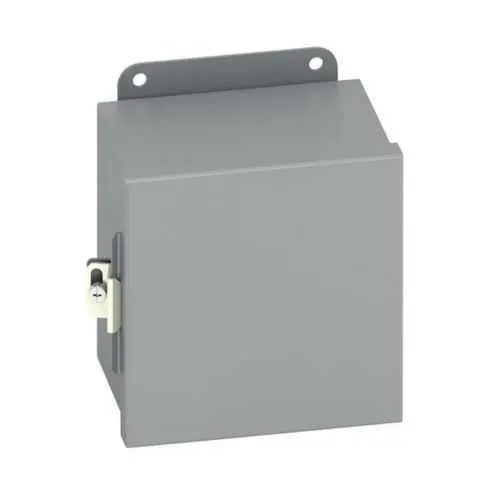

Eaton 443-12CHC JIC Panel Enclosure - NEMA 12 Certification
Part Number: 443-12CHC
Quick Summary
The Eaton 443-12CHC JIC panel enclosure protects electrical controls in industrial and commercial spaces. Installers need secure, compliant housings that resist dust and moisture while fitting tight wall footprints. It carries UL 508A and CSA C22.2 certifications alongside a NEMA 12 rating for reliable, industry-compliant protection. Built from carbon steel with a seamless poured-in-place gasket and a hinged door, it offers durable protection in harsh environments. Its wall-mount design with external mounting feet enables fast, repeatable deployments, helping reduce installation time and lifecycle costs.
Product Information
Extended Description
443-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 4" height, 3" length, 4" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
443-12CHC
UPC
782051750003
Product Length/Depth
3 in
Product Height
4 in
Product Width
4 in
Product Weight
2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge, plated door clamps
NEMA Rating
12
Country of origin
US
Feature: Robust carbon steel construction with a painted ANSI 61 gray finish. Business Impact: Delivers durable protection against impact, corrosion, and environmental contaminants, reducing downtime and maintenance costs. Application: Ideal for demanding industrial automation panels and machine controls in manufacturing floors. Paragraph continues to explain how this mitigates field service events and extends enclosure life. Feature: Compact footprint with 4 in height, 4 in width, and 3 in depth. Business Impact: Space-saving enclosure that fits tight electrical racks and small-control layouts, accelerating panel design and installation. Application: Perfect for compact junction boxes and modular panels in packaging lines. Feature: External mounting feet and wall-mount capability. Business Impact: Simplifies mounting alignment and reduces field labor time during retrofits or new builds. Application: Quick, reliable installations in retrofit projects or new machine installations. Feature: Hinged cover with continuous piano hinge and seamless gasket. Business Impact: Ensures long door life, dependable sealing, and easy service access, lowering maintenance windows. Application: Use in dusty or moist environments where reliable ingress protection is critical. Feature: Certifications and standards including UL 508A, CSA C22.2, and NEMA 12. Business Impact: Verifies compliance with global electrical safety and performance requirements, enabling regulatory acceptance and safer operations. Application: Suitable for general purpose industrial control panels and automation equipment in US and global facilities.
Get a Quick Quote for a Eaton 443-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 443-12CHC?
Enquire Now
FAQs
The 443-12CHC is designed for wall mounting with external mounting feet, allowing installers to choose a rigid, surface-mounted installation or retrofit an existing panel. The hinged door and continuous piano hinge provide easy access for wiring, testing, and routine maintenance, while the compact 4x4x3 in footprint suits crowded electrical spaces.
Yes. It is a NEMA 12-rated carbon steel enclosure with a seamless gasket, designed to resist dust and moisture in industrial settings. Certification-wise, it carries UL 508A and CSA C22.2 endorsements, aligning with global safety and performance standards for electrical control panels.
The enclosure measures 4 in tall, 4 in wide, and 3 in deep, with a 16 gauge carbon steel wall. It is intended for wall mounting via external feet, enabling quick alignment and stable mounting in tight spaces, which is ideal for small control panels and junction boxes.
Yes, the 12CHC enclosure provides a compact yet functional housing for small automation controllers and terminal blocks. Its hinged door and gasket seal simplify frequent access, while the 4x4x3 in footprint supports standard DIN-rail or compact terminal layouts commonly used in packaging, material handling, and light automation lines.
Choosing the 443-12CHC delivers regulatory compliance, reliable protection against dust and moisture, and a quick-install solution that reduces commissioning time. Its compact size and wall-mount capability save valuable panel space, while UL 508A/CSA C22.2 certification support risk reduction and safer operation across industrial facilities.
