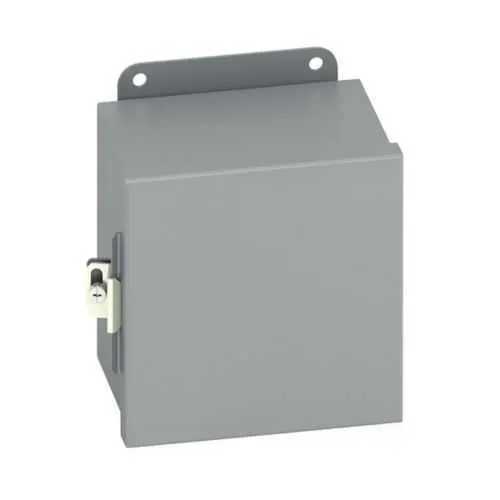

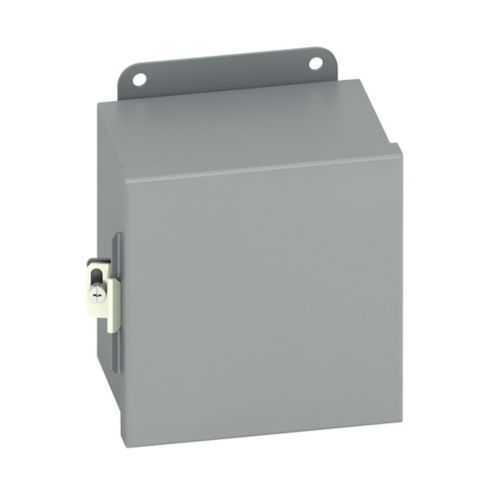

Eaton 444-12CHC JIC panel enclosure - NEMA 12
Part Number: 444-12CHC
Quick Summary
The Eaton 444-12CHC JIC panel enclosure protects small control panels in light industrial environments. This compact, wall-mounted enclosure offers a 4x4x4 in footprint to fit tight spaces without compromising access or safety. With a carbon steel body and a seamless gasket, it delivers reliable protection against dust and incidental moisture. The unit is certified to UL 508A, CSA C22.2, and NEMA 12 standards, supporting compliant panel installations in commercial and industrial settings. Built as part of the Eaton B-Line series, it pairs durable construction with straightforward mounting. Painted ANSI 61 gray, the enclosure combines professional aesthetics with long-term maintenance efficiency and compatibility with common electrical components.
Product Information
Extended Description
444-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 4" height, 4" length, 4" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
444-12CHC
UPC
782051750201
Product Length/Depth
4 in
Product Height
4 in
Product Width
4 in
Product Weight
2.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge, plated door clamps
NEMA Rating
12
Country of origin
US
Feature: 4x4x4 in footprint provides a compact, space-saving housing that fits tight control cabinet corridors and wall cavities. Business Impact: Enables more efficient layouts and easier service access, reducing installation time and field rework. Application: Suitable for small control panels in machine bays or electrical closets where space is at a premium. Feature: NEMA 12 rating with seamless poured-in-place gasket offers dust and light splash protection. Business Impact: Improves reliability in indoor environments and supports compliance with plant cleanliness standards. Application: Ideal for indoor electrical housings and control panels in manufacturing floors and dry environments. Feature: Carbon steel construction at 16 gauge wall thickness delivers robust durability. Business Impact: Enhances mechanical protection against accidental impacts and prolongs service life in harsh environments. Application: Suitable for semi-industrial installations where vibration or handling occurs. Feature: Hinged cover with continuous piano hinge and plated door clamps enables secure, long-life access. Business Impact: Reduces maintenance downtime and ensures consistent door alignment, improving safety and usability. Application: Common in service panels and process controls requiring frequent access. Feature: External mounting feet and wall-mount capability simplify installation and alignment. Business Impact: Speeds up on-site mounting, reduces installation errors, and supports modular upgrades. Application: Particularly beneficial for retrofit projects where existing walls are used as mounting surfaces. Feature: Painted ANSI 61 gray finish with durable carbon steel exterior supports long-term corrosion resistance and a professional appearance. Business Impact: Maintains enclosure integrity in busy plant environments and reduces repaint cycles. Application: Fits standard electrical rooms and equipment rooms where aesthetic and durability matter.
Get a Quick Quote for a Eaton 444-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 444-12CHC?
Enquire Now
FAQs
The 444-12CHC is designed for wall mounting with external mounting feet, supporting straightforward, secure installation on vertical surfaces. Its compact 4x4x4 in footprint fits tight spaces, and the hinged cover with continuous piano hinge simplifies door operation. This enclosure is compatible with standard electrical components used in small control panels, reducing integration time and ensuring alignment with existing enclosures.
Core dimensions are 4 inches in length, height, and width, with a 2.3 lb weight. The enclosure is constructed from carbon steel with 16 gauge wall thickness and finished in ANSI 61 gray paint. It carries a NEMA 12 rating and is certified to UL 508A and CSA C22.2, making it suitable for indoor control panels and environments requiring dust and light splash protection.
The 444-12CHC provides NEMA 12 protection, which is intended for indoor, dry environments shielded from direct exposure to weather. It is not IP-rated for water ingress. For harsher or outdoor settings, consider enclosures with higher IP/NEMA ratings or additional protection measures. When used indoors, it delivers reliable dust and splash resistance for light industrial applications.
This enclosure adheres to UL 508A for industrial control panels and CSA C22.2 certification, with a NEMA 12 rating for indoor protection. Originating from the US, it aligns with common regulatory requirements for electrical enclosures in commercial and light industrial facilities, helping you satisfy factory safety and compliance standards.
External mounting feet simplify wall installation and alignment, reducing field labor and error. The continuous piano hinge and plated door clamps extend door life and improve maintenance cycles, while seamless gasketing preserves enclosure integrity. The result is faster deployments, lower maintenance costs, and durable protection for small control panels within Eaton’s B-Line ecosystem.
