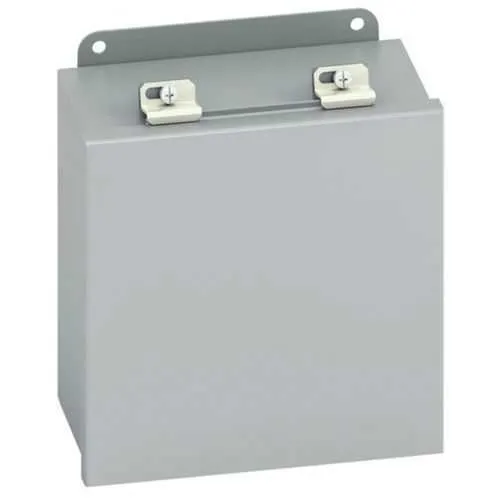

Eaton 444-12LC Enclosure - Industrial Panel Cabinet NEMA 12
Part Number: 444-12LC
Quick Summary
The Eaton 444-12LC enclosure protects electrical panels in industrial installations and wall-mount applications. Operators often struggle with moisture, dust ingress, and limited service access in tight spaces, making reliable enclosure performance critical. It carries UL 508A and CSA C22.2 listings along with a NEMA 12 rating, ensuring safety and environmental protection in demanding environments. The carbon steel construction, 16 gauge wall thickness, and seam-welded gasket deliver lasting integrity while the screw cover and semi-hinged door ease maintenance. This compact enclosure aligns with industrial control needs, offering a proven foundation for compliant, efficient panel installations and long-term total cost of ownership savings.
Product Information
Extended Description
444-12LC Eaton: Eaton B-Line series JIC panel enclosure, 4" height, 4" length, 4" width, NEMA 12, Screw cover, 12LC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
444-12LC
UPC
782051730203
Product Length/Depth
4 in
Product Height
4 in
Product Width
4 in
Product Weight
2.2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12LC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Semi-hinged
Special features
Jack chain, plated door clamps
NEMA Rating
12
Country of origin
US
The 4x4x4 inch footprint combined with wall mounting and external feet delivers a compact installation footprint that fits tight equipment rooms and confined panel spaces. This design simplifies retrofits and minimizes changes to surrounding infrastructure, accelerating installation in new lines or upgrade projects. With a NEMA 12 rating, seamless poured-in-place gasket, and a screw cover, the enclosure provides reliable dust control and light liquid ingress protection. Operators benefit from reduced cleaning cycles and fewer moisture-related interruptions in manufacturing, processing, and packaging lines. Carbon steel construction and 16 gauge wall thickness deliver strong mechanical protection without excessive bulk. The ANSI 61 gray painted finish resists wear in industrial environments, contributing to longer service life in racks, panels, and enclosures. External mounting feet and wall mounting options provide installation flexibility across plant floors and control rooms. This versatility supports quick deployment alongside existing enclosure arrays, minimizing wiring runs and cabinet spacing constraints. Semi-hinged closure, screw cover, jack chain, and plated door clamps enable fast access for maintenance while maintaining secure operation. This combination reduces tool time and improves safety during routine servicing in risk-prone environments. UL 508A and CSA C22.2 listings along with a NEMA 12 rating align with industry standards, ensuring regulatory compliance for electrical panels in North American facilities.
Get a Quick Quote for a Eaton 444-12LC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 444-12LC?
Enquire Now
FAQs
Yes. The 444-12LC is designed for wall mounting and also features external mounting feet, enabling flexible installation across varied panel layouts. This compatibility supports fast retrofits and minimizes changes to existing infrastructure, reducing installation time and onsite customization costs.
The enclosure uses carbon steel with 16 gauge walls and a seamless poured-in-place gasket, delivering dust protection and resistance to light liquid ingress. It carries a NEMA 12 rating along with UL 508A and CSA C22.2 certifications, providing regulatory assurance for industrial environments.
Absolutely. The 444-12LC is built to support UL 508A listed assemblies, including its wall-mount configuration, screw cover access, and semi-hinged door. Its construction and gasket integrity help ensure compliant, safe operation in manufacturing control panels and automation cabinets.
The enclosure is UL 508A and CSA C22.2 certified with a NEMA 12 rating. These certifications confirm electrical safety, environmental protection, and suitability for use in control panels in North American facilities, supporting compliant wiring practices and maintenance workflows.
Leverage external mounting feet for rapid mounting on existing frames, use the screw cover for quick access during inspections, and utilize the semi-hinged door to speed routine servicing. Pairing these practices with UL/CSA certified enclosures reduces downtime, extends service intervals, and lowers total cost of ownership.
