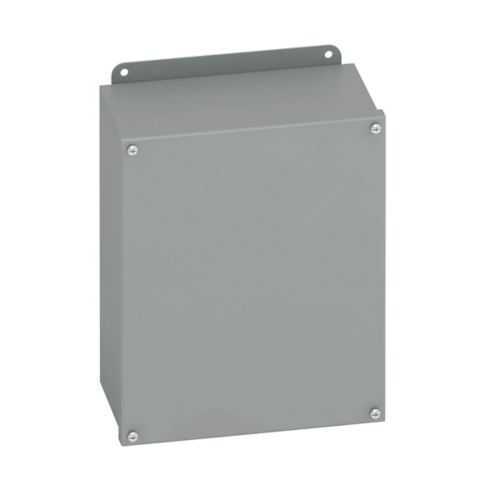

Eaton 444-12SC Enclosure - Wall Mount, NEMA 12
Part Number: 444-12SC
Quick Summary
Eaton 444-12SC enclosure offers a compact, wall-mount JIC panel enclosure for industrial control cabinets. Facilities often face space constraints and corrosion risk, making durable enclosures with secure access essential. UL 50, CSA C22.2, and NEMA 12 certifications provide electrical isolation, environmental protection, and reliable performance in demanding environments. With a 4 in by 4 in by 4 in footprint, ANSI 61 gray painted carbon steel, and an oil-resistant gasket, this enclosure supports long service life and straightforward maintenance. External mounting feet and captive plated screws simplify installation and reduce field labor, delivering measurable cost savings on projects. This makes it a practical choice for panel builders and maintenance teams seeking predictable compliance and fast, repeatable installs.
Product Information
Extended Description
444-12SC Eaton: Eaton B-Line series JIC panel enclosure, 4" height, 4" length, 4" width, NEMA 12, Screw cover, 12SC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
444-12SC
UPC
782051200409
Product Length/Depth
4 in
Product Height
4 in
Product Width
4 in
Product Weight
2.2 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12SC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Captive plated screws
NEMA Rating
12
Country of origin
US
Feature: Carbon steel enclosure with 16 gauge walls delivers rugged mechanical protection for sensitive electronics and field wiring. The compact 4x4x4 in footprint preserves valuable panel space while accommodating small control modules. Business impact: enhanced durability reduces risk from vibration and accidental impacts, extending service life and lowering maintenance costs. Application: ideal for compact automation panels in manufacturing lines, packaging equipment, and process control cabinets in harsh plant environments.Feature: Wall-mount design with external mounting feet and a screw cover enables fast, flexible installation in tight spaces. Business impact: easier alignment and quicker commissioning cut labor time on retrofit and new-build projects. Application: suitable for factory walls, machine frames, or equipment bays where surface mounting is preferred and wiring access is straightforward.Feature: NEMA 12-rated enclosure with an oil-resistant gasket and painted finish provides indoor protection against dust and light oils. Business impact: strong environmental protection supports regulatory compliance and longer interior life, reducing downtime from contamination. Application: robust housing for control electronics in dusty or mildly oily industrial areas, where seals and visibility are priorities.Feature: UL 50 and CSA C22.2 certifications support reliable electrical isolation and safety standards in North American markets. Business impact: streamlines audits, supplier qualification, and customer acceptance. Application: suitable for electrical panels requiring recognized safety credentials in US and Canadian facilities.Feature: Captive plated screws and a screw cover with external feet simplify assembly and maintenance. Business impact: reduces field labor, prevents lost hardware, and speeds routine inspections. Application: common in fielded control panels, instrument enclosures, and junction boxes where service access must be quick and secure.
Get a Quick Quote for a Eaton 444-12SC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 444-12SC?
Enquire Now
FAQs
The 444-12SC uses a wall-mount design with external mounting feet and a screw cover. This configuration simplifies alignment on vertical surfaces, enables quicker field wiring access, and reduces install time. Captive plated screws help prevent lost hardware during service, speeding maintenance and rework on tight-controller enclosures.
Yes, it is NEMA 12-rated, offering protection against dust and light oil exposure when used indoors. UL 50 and CSA C22.2 certifications reinforce electrical isolation and safety. While it isn’t an IP-rated enclosure for outdoor use, it provides dependable indoor protection for typical manufacturing, assembly, and automation environments.
The enclosure measures 4 inches in length, 4 inches in height, and 4 inches in width, aligning to a 4x4x4 in footprint. It weighs approximately 2.2 pounds, making it light enough for easy handling during installation while still offering solid structural protection for small control electronics.
It is ideal for compact automation panels, process control cabinets, electrical junctions, and small instrument enclosures in manufacturing, packaging lines, and equipment rooms. The combination of a screw cover, external feet, and 4x4x4 in footprint supports quick enclosure deployments in space-constrained environments.
The 444-12SC carries UL 50 and CSA C22.2 certifications and a NEMA 12 rating. It is manufactured in the US. The UPC for the model is 782051200409, ensuring traceability and compliance within North American procurement and auditing processes.
