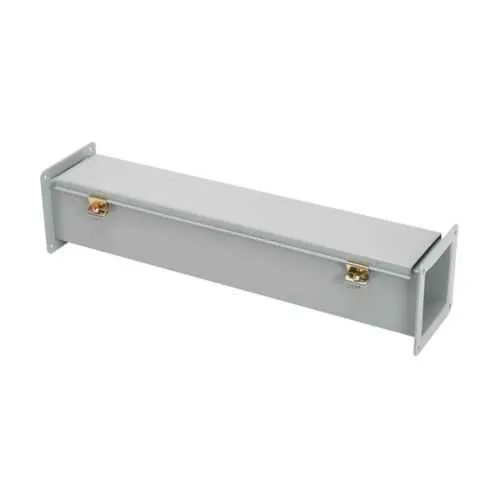

Eaton 4448-12FW Wireway - NEMA 12 Steel Hinged Cover
Part Number: 4448-12FW
Quick Summary
Eaton 4448-12FW wireway provides reliable, protected cable routing for industrial control panels and equipment. When wiring routes face dust, moisture, or frequent access, downtime and maintenance costs spike. With CSA C22.2 and UL Listed certifications and a NEMA 12 enclosure, the system delivers dependable protection and regulatory compliance. Constructed from 14-gauge steel with an ANSI 61 gray finish, it combines rugged durability with precise fabrication. The hinged cover and heavy-duty clamps enable fast access during commissioning and service, reducing labor time on site. This solution supports safe, organized wiring networks in manufacturing and processing environments, delivering predictable performance and a clear path to compliant, scalable installations.
Product Information
Extended Description
4448-12FW Eaton: Eaton B-Line series wireway, 4" height, 48" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
4448-12FW
UPC
782051109603
Product Length/Depth
48 in
Product Height
4 in
Product Width
4 in
Product Weight
20.276 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured with heavy-duty hinges&screw clamps
Type
12FW wireway
Feature: Rugged steel construction with 14 gauge thickness provides long-term protection against impact and corrosion. Business Impact: reduces field repairs and downtime while extending life-cycle costs. Application: ideal for harsh factory floors and control room enclosures where durability matters. Feature: Hinged cover with heavy-duty hinges and screw clamps enables quick, tool-free access to internal wiring. Business Impact: accelerates maintenance cycles and improves technician safety. Application: suited for frequent inspections and rewirings in panel assemblies. Feature: NEMA 12 enclosure rating combined with ANSI 61 gray finish delivers dust and light splash protection with a professional, code-compliant appearance. Business Impact: minimizes ingress-related failures and simplifies documentation for audits. Application: suitable for general-purpose electrical and control wiring in industrial spaces. Feature: Wireway hanger mounting method simplifies installation and reduces hardware requirements. Business Impact: lowers installation time and labor costs while ensuring stable routing. Application: convenient for retrofit projects and new builds alike. Feature: Seamless poured-in-place seams and 12FW wireway type ensure consistent, leak-free performance. Business Impact: improves reliability and eliminates loose-seam gaps that can trap contaminants. Application: ideal for systems requiring robust, maintainable wire management in tight spaces.
Get a Quick Quote for a Eaton 4448-12FW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4448-12FW?
Enquire Now
FAQs
The 4448-12FW uses a wireway hanger mounting method, designed to integrate with standard panel racking and support structures. Its hinged cover and heavy-duty clamps facilitate straightforward integration with existing backboards and partition layouts. Compatibility considerations include enclosure dimensions, space for routing cables, and ensuring sufficient clearance for hinge operation during service.
Key specs include 4 in height, 4 in width, and 48 in length, with a 14 gauge steel body and ANSI 61 gray finish. The 12FW wireway type, hinged closure, and NEMA 12 rating collectively protect cables from dust and minor splashes while enabling efficient access for maintenance, inspection, and upgrades without compromising enclosure integrity.
Yes. The NEMA 12-rated enclosure provides dust and light moisture protection, while the 14 gauge steel construction delivers rugged durability for manufacturing floors and process lines. The hinged cover with heavy-duty clamps supports frequent access during routine maintenance, reducing downtime and improving reliability in demanding environments.
The product is CSA C22.2 and UL Listed, signaling compliance with recognized safety and performance standards. These certifications help ensure regulator alignment for electrical installations, simplify audit and maintenance cycles, and support procurement decisions when pursuing code-compliant panel assemblies and facility-wide safety programs.
By combining durable steel construction, a hinged cover for quick access, and a NEMA 12 rating, the 4448-12FW minimizes maintenance time and unplanned downtime. The predictable installation footprint and compatibility with wireway hangers also reduce installation labor and post-install service costs, delivering a favorable return through extended service life and lower ongoing maintenance spend.
