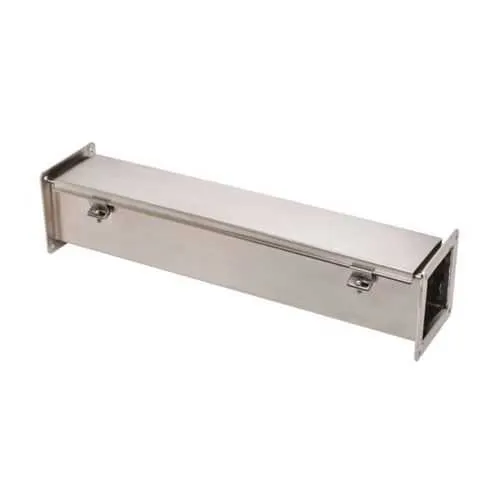

Eaton 4460-4XSFW Wireway - NEMA 4X Rated Stainless
Part Number: 4460-4XSFW
Quick Summary
Eaton 4460-4XSFW wireway enables clean, routed cable management for control panels and factory wiring corridors. It addresses the common pain of exposed, easily damaged cabling in busy industrial environments by providing a durable, accessible solution. This unit is NEMA 4X rated and constructed from 304 stainless steel with a 16 gauge wall, UL Listed, and CSA C22.2 certified to ensure reliability in demanding settings. By delivering a hinged access, robust finish, and straightforward mounting, this wireway supports long-term maintenance efficiency and lower lifecycle costs while integrating seamlessly into existing B-Line systems and wireway hangers.
Product Information
Extended Description
4460-4XSFW Eaton: Eaton B-Line series wireway, 4" height, 60" length, 4" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
4460-4XSFW
UPC
782051134292
Product Length/Depth
60 in
Product Height
4 in
Product Width
4 in
Product Weight
19.533 lb
Certifications
CSA C22.2. UL Listed
Material thickness
16 gauge
Finish color
#4 brushed
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured by hinges, screwclamps&s.s. hardware
Type
4XSFW wireway
Feature is 60 inch long, 4 inch high, 4 inch wide wireway with 16 gauge wall and 304 stainless steel construction for exceptional durability. Business impact is improved protection for sensitive cables and reduced risk of corrosion in challenging environments, translating to fewer replacements and lower total cost of ownership. Applications span control panels, machine enclosures, and plant wiring runs, enabling rapid installation and scalable layouts. The hinged cover and screw clamps with stainless hardware allow quick access for maintenance, minimizing downtime and accelerating troubleshooting. Compatibility with wireway hangers and seamless poured-in-place design improves rigidity and alignment, while the #4 brushed finish provides a professional, low-reflection surface suitable for high-visibility installations. This design also supports compliant installation with UL and CSA certifications, helping facilities meet regulatory requirements and streamline audits.
Get a Quick Quote for a Eaton 4460-4XSFW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4460-4XSFW?
Enquire Now
FAQs
For a reliable installation, plan a 60 inch run and use compatible wireway hangers at regular intervals. Ensure hinge clearance and proper alignment of the hinged cover with the jamb. Secure with stainless steel screw clamps and hardware, verify the 4x4 cross-section, and confirm UL/CSA labeling is visible from the installed location to support compliance.
Engineers should confirm length, height, width, and wall thickness: 60 inches long, 4 inches high, and 4 inches wide with 16 gauge walls. The material is 304 stainless steel with a #4 brushed finish. The assembly uses a hinged closure, wireway hanger mounting, and achieves NEMA 4X protection, weighing about 19.533 pounds per unit.
Yes. The wireway is NEMA 4X rated and made from corrosion-resistant 304 stainless steel, which is ideal for washdown areas and outdoor installations. The hinged cover provides easy access for routine maintenance while maintaining a sealed enclosure, and the stainless hardware resists rust under demanding conditions.
The 4460-4XSFW carries UL-listed and CSA C22.2 certifications, confirming adherence to recognized safety standards. These certifications support regulatory compliance in many regions, simplify audits, and reassure buyers that the wireway is suitable for integration into compliant control panels and industrial installations.
The stainless construction and NEMA 4X protection reduce corrosion-related replacements and downtime. The hinged cover and accessible design shorten maintenance cycles, lowering labor costs. While initial pricing may be higher than basic aluminum options, lifecycle cost is reduced through longer service life and lower expected downtime in harsh environments.
