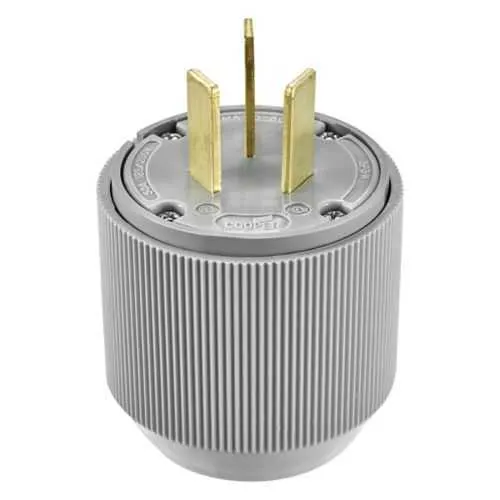

Eaton 4524N Auto Grip Plug - 50 A cULus Listed
Part Number: 4524N
Quick Summary
The Eaton 4524N Auto Grip Plug delivers a rugged, back-wire connection for three-wire industrial outlets. Engineers frequently contend with loose terminations and inconsistent torque that cause downtime and safety risk. It is cULus Listed, underscoring compliance with essential safety standards for industrial environments. With secure back-wire termination, brass contacts, and a thermoplastic body, it supports faster installations and dependable long-term operation. Businesses gain reliability and compliance while reducing field rework through consistent torque and robust construction. The design aligns with NEMA straight blade configurations (10-50P) and supports common industrial power distribution setups. For procurement teams, this means consistent vendor performance, easier stocking, and fewer field returns due to mismatch.
Product Information
Extended Description
4524N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 50A, Industrial, 125/250V, Back wire, Gray, Brass, Thermoplastic with neoprene gasket, 10-50P, Screw, Vinyl, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
4524N
UPC
040893019826
Product Length/Depth
6.938 in
Product Height
3.375 in
Product Width
3.61 in
Product Weight
0.76 lb
Certifications
cULus Listed
Device type
Plug
Type
Plug
Amperage Rating
50 A
Voltage rating
125/250 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Three-pole
Style type
Straight body
Material
Vinyl
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
10-50P
Torque rating
30-35 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic with neoprene gasket
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section B
Eaton Specification Sheet - 4524N
The 4524N features an extra heavy-duty industrial plug design with brass contacts rated for 50 A at 125/250 V. The rugged thermoplastic body, paired with a neoprene gasket, provides solid electrical performance while resisting moisture and dust ingress. This combination drives improved connection integrity under high-vibration environments, reducing field faults and maintenance costs in continuous-running systems such as conveyors and presses. Back-wire termination enables faster, more reliable terminations when installing panels. This method reduces field torque variability and minimizes loosened connections that cause downtime. The result is quicker commissioning and higher first-pass test success in control cabinets and motor control centers. The unit uses a three-pole, three-wire configuration with NEMA 10-50P compatibility and straight blade design. This alignment simplifies replacements and stocking by matching common receptacles across industrial facilities. It also supports #12-4 AWG wiring with a secure, screw-cap option for added installation flexibility. Brass contact material delivers corrosion resistance and low voltage drop, contributing to long-term reliability in harsh environments. The thermoplastic body with neoprene gasket resists oils, dust, and moisture, aiding compliance with general electrical safety requirements. Torque rating of 30-35 lbf-in ensures repeatable terminations across crews and shifts. Core-pack packaging and color-coded gray vinyl housing help with inventory management and field identification. The overall footprint (6.938 in length, 3.375 in height, 3.61 in width) supports easy mounting in tight panels. Together, these features reduce installation time and spare-part complexity for industrial automation projects.
Get a Quick Quote for a Eaton 4524N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 4524N?
Enquire Now
FAQs
The 4524N supports both back-wire and screw termination methods, enabling flexible field installations. It is designed for #12-4 AWG conductors and backs up with a 6.938 in depth, facilitating straightforward panel wiring and secure terminations. This dual approach reduces wiring errors and speeds up commissioning in control cabinets and power distribution enclosures.
The plug is rated for 50 A at 125/250 V with a three-wire, three-pole configuration (NEMA 10-50P). Brass contacts provide low resistance and durable contact life, while the back-wire or screw termination options support reliable connections under demanding industrial loads, reducing voltage drop and improving overall equipment performance.
Yes. The 4524N is cULus Listed, indicating conformance to key safety standards for industrial equipment. Its thermoplastic body and neoprene gasket offer moisture and dust resistance, and brass contacts enhance durability under vibration. This combination makes it well-suited for factory floors, assembly lines, and rugged power distribution applications.
The 4524N is designed to integrate with Eaton Arrow Hart components and standard NEMA straight-blade receptacles, simplifying replacements and stocking. Its back-wire option plus screw terminals provide installation flexibility in control cabinets and power panels, while core-pack packaging supports efficient warehousing and faster procurement for ongoing projects.
By delivering secure terminations, repeatable torque, and durable materials, the 4524N reduces downtime, minimizes rework, and extends service life. Quick installation, fewer field returns due to mismatches, and lower maintenance costs contribute to a favorable total cost of ownership in high-demand automation lines.
