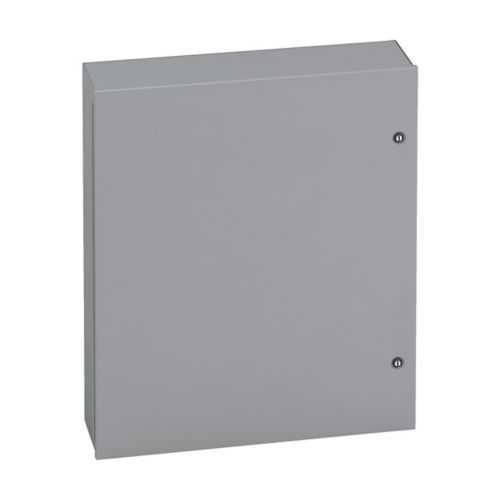

Eaton 483613-1 Panel Enclosure - NEMA 1
Part Number: 483613-1
Quick Summary
Eaton B-Line Type 1 panel enclosures protect indoor electrical gear while fitting compact wall layouts in industrial facilities. These rugged carbon steel enclosures address the common challenges of space constraints, safety compliance, and maintenance downtime. With UL 50, CSA C22.2 and NEMA 1 certifications, they meet essential regulatory requirements for general-purpose indoor service. The 483613-1 unit is designed for reliable wall-mount installation with a hinged cover and a medium single door, delivering durable protection in a standardized ANSI 61 gray finish. By combining sturdy construction with straightforward installation, they support scalable automation projects and reduce total cost of ownership for panel installations.
Product Information
Extended Description
483613-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 48" height, 13" length, 36" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
483613-1
UPC
782051088922
Product Length/Depth
13 in
Product Height
48 in
Product Width
36 in
Product Weight
140.2 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Sturdy carbon steel construction with 14 gauge wall thickness; Benefit: Provides robust mechanical protection against impact and wear, extending enclosure lifespan in busy facilities; Application: Indoor electrical panels in manufacturing lines and distribution rooms. Feature: NEMA Rating 1 with UL 50 and CSA C22.2 certifications; Benefit: Ensures regulatory compliance and safe, dependable operation in general indoor environments, lowering risk and audit findings; Application: General-purpose control panels in controlled spaces. Feature: Hinged cover and medium single door; Benefit: Quick, tool-free access speeds routine maintenance and troubleshooting; Application: Servo drives, PLC cabinets, and terminal arrays. Feature: Wall-mount capability with keyhole slots; Benefit: Flexible mounting options and faster installation, reducing project lead times; Application: Wall-mounted control enclosures in retrofit projects. Feature: ANSI 61 gray finish and 14 gauge carbon steel; Benefit: Durable, corrosion-resistant appearance with easy paint compatibility, supporting long-term aesthetics in plant interiors; Application: Indoor industrial facilities requiring consistent, compliant enclosure styling. Feature: Dimensions of 48 in H x 36 in W x 13 in D and weight around 140.2 lb; Benefit: Substantial internal space for components while maintaining manageable onsite handling; Application: Housing multiple DIN rail devices and terminal blocks. Feature: 1 enclosure with hinge closure; Benefit: Simplified security and access control for small-to-medium installations; Application: Standalone or modular panel assemblies.
Get a Quick Quote for a Eaton 483613-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 483613-1?
Enquire Now
FAQs
To install the 483613-1, plan wall mounting using the built-in keyhole slots and hinge-access door. The enclosure weighs about 140.2 lb, so use appropriate lifting tools and anchors suitable for carbon steel. Ensure clearances for service access and confirm indoor, general-purpose use per NEMA 1 guidelines.
This enclosure carries UL 50, CSA C22.2 certifications and a NEMA 1 rating. These certifications verify safe construction, electrical safety, and suitability for indoor general-purpose environments, reducing regulatory risk and simplifying compliance during audits and inspections.
No. With a NEMA 1 rating, the enclosure is intended for interior, general-purpose use. For outdoor or harsher environments, consider NEMA 3R/4 or other IP-rated enclosures designed for moisture, dust, and weather exposure.
The hinged cover and single door provide rapid, tool-free access to internal components, reducing downtime during maintenance and upgrades. This design supports efficient wiring, easier inspections, and straightforward component replacements in continuous-operation facilities.
With its 48 in H x 36 in W x 13 in D footprint and 14 gauge carbon steel construction, the enclosure offers substantial internal space for add-on components while maintaining a predictable form factor. The wall-mount design and keyhole mounting slots simplify phased expansions and retrofits in growing automation projects.
