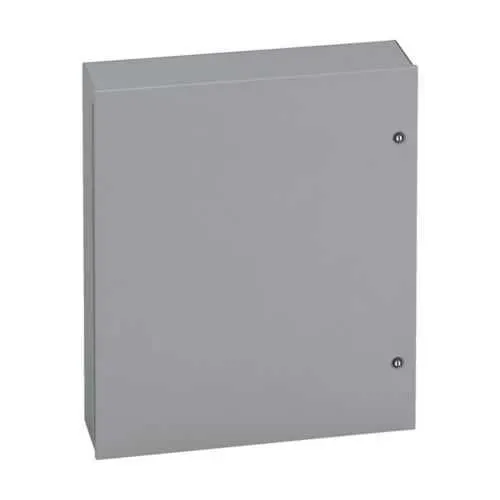

Eaton 483617-1 Panel Enclosures - NEMA 1 UL 50
Part Number: 483617-1
Quick Summary
The Eaton B-Line Type 1 panel enclosures protect electrical controls in industrial environments. Installing rugged, code-compliant enclosures can be challenging when space is tight and access is difficult. UL 50, CSA C22.2, and NEMA 1 certifications ensure reliable protection and regulatory compliance for wall-mounted applications. Built from carbon steel with a 14-gauge wall, they offer dependable durability even in demanding facilities. The hinged cover, wall-mount capability, and keyhole slots simplify installation and field adjustments while maintaining security. This enclosure line supports efficient panel layouts and long-term total cost of ownership through standardized dimensions and consistent finish.
Product Information
Extended Description
483617-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 48" height, 17" length, 36" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
483617-1
UPC
782051088885
Product Length/Depth
17 in
Product Height
48 in
Product Width
36 in
Product Weight
155.2 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature: Carbon steel construction at 14 gauge provides high strength and predictable protection in manufacturing environments. Business Impact: Reduces corrosion-related downtime and extends service life, lowering maintenance costs. Application: Ideal for wall-mounted control panels in factory floors where harsh conditions and frequent access are common. Feature: Generous 48 in height, 36 in width, and 17 in depth with a 155.2 lb weight. Business Impact: Accommodates larger controllers and multiple devices, enabling compact, organized layouts and stable mounting. Application: Electrical distribution and machine controls on production lines. Feature: ANSI 61 gray painted finish offers corrosion resistance and consistent aesthetics. Business Impact: Maintains enclosure integrity under indoor environments and reduces repainting needs. Application: Indoor manufacturing and service areas where cleanability and uniform appearance matter. Feature: Hinged door with medium single-door design, wall mounting, and keyhole slots. Business Impact: Simplifies installation, service access, and security without specialized hardware. Application: Routine maintenance and quick panel changes in busy facilities. Feature: UL 50, CSA C22.2 certifications and NEMA 1 rating ensure regulatory compliance and safe operation. Business Impact: Lowers risk of non-compliance penalties and supports safe, standardized installations. Application: General-purpose control panels in compliant industrial environments.
