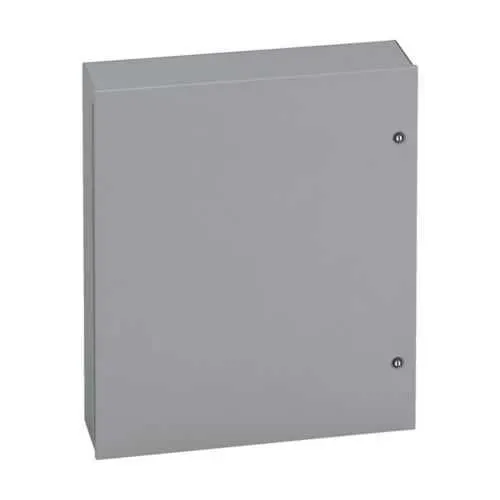

Eaton 48369-1 Type 1 Panel Enclosures - NEMA 1
Part Number: 48369-1
Quick Summary
The Eaton 48369-1 Type 1 panel enclosures protect electrical gear in industrial control panels. The design helps address the challenge of balancing safety with installation speed and regulatory compliance in busy plant environments. These enclosures carry UL 50, CSA C22.2, and NEMA ratings to support essential safety and performance benchmarks for indoor electrical infrastructure. By delivering a robust, wall-mounted solution with a durable carbon steel build, they streamline panel layouts, simplify maintenance access, and reduce project risk. For teams prioritizing reliability, standardization, and overall lifecycle costs, this enclosure supports faster deployment and predictable upkeep alongside other B-Line solutions.
Product Information
Extended Description
48369-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 48" height, 9" length, 36" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
48369-1
UPC
782051039702
Product Length/Depth
9 in
Product Height
48 in
Product Width
36 in
Product Weight
125.2 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Keyhole slots
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Size and structural strength enable efficient space planning and heavy wiring support: with 48 inches in height, 36 inches in width, and 9 inches of depth, the enclosure accommodates mid- to large-size control panels while maintaining a compact footprint. The 14-gauge carbon steel construction delivers solid mechanical protection, contributing to higher uptime and safer service without frequent replacements. The hinged cover and medium single door provide secure enclosure access while minimizing service interruptions during maintenance and rearrangements. Wall-mount capability with keyhole slots simplifies installation and retrofit workflows, reducing site labor and permitting flexible positioning on existing structures. Finish and standards—ANSI 61 gray painted surface and UL 50, CSA C22.2, NEMA 1 compliance—help ensure uniform appearance, corrosion resistance, and regulatory conformity across facilities. Weight of 125.2 lb informs handling planning and safety during installation, while compatibility with standard B-Line components supports scalable, modular electrical infrastructure projects.
Get a Quick Quote for a Eaton 48369-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 48369-1?
Enquire Now
FAQs
The enclosure mounts to a wall using the built-in keyhole slots. Start by selecting a compliant wall with adequate load capacity for the 125.2 lb unit, then align the enclosure, secure with appropriate fasteners, and hang the cabinet via the keyhole openings. Ensure the door is hinged for convenient access during installation and maintenance.
The 48369-1 carries UL 50, CSA C22.2, and NEMA 1 ratings, indicating compliance with essential safety and performance standards for indoor electrical enclosures in industrial environments.
No. With a NEMA 1 rating, the enclosure is intended for indoor use where protection from routine dust and incidental contact is required. For outdoor or harsher environments, consider NEMA 3R or higher-rated enclosures and additional protective measures.
The enclosure measures 48 inches high, 36 inches wide, and 9 inches deep, weighing 125.2 pounds. Plan for two-person handling or mechanical assistance to ensure safe transport and installation.
Ideal for indoor industrial control panels, manufacturing lines, and process automation facilities that require durable carbon steel enclosures with reliable access, standardization, and compliance with UL 50, CSA C22.2, and NEMA 1 requirements.
