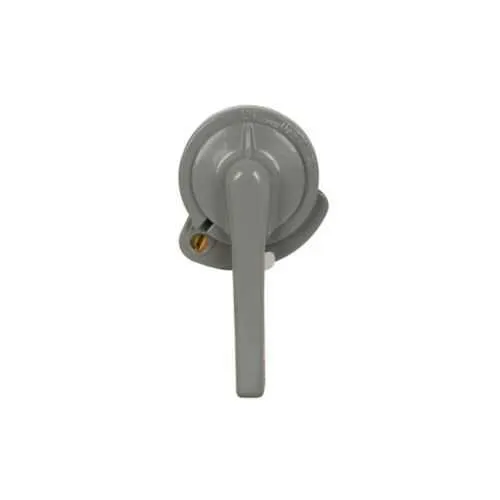

Eaton 504C323G07 Disconnect Switch Handle - Padlockable
Part Number: 504C323G07
Quick Summary
Eaton 504C323G07 is a molded case circuit breaker handle mechanism for Vis-Flex DE-ION switches in marine electrical systems. Engineers often struggle with secure lockout and padlockable requirements in saltwater environments, risking downtime and safety gaps. Note: Certifications such as CE, IP ratings, and SIL vary by market; confirm with Eaton for your region. Together with its padlockable design and Vis-Flex compatibility, it delivers safer lockout/tagout and streamlined installation for marine and industrial buyers. By staying aligned with Eaton's warranty terms, customers gain predictable service windows and reduced lifecycle risk. In practice, the pistol-style round handle supports quick, ergonomic operation under demanding conditions.
Product Information
Extended Description
504C323G07 Eaton: MCCB Miscellaneous Handle Mechanism Parts, Disconnect Switch Handle, Pistol, Shape Round, Padlockable, 504C Model, Used with Visi-Flex DE-ION Type Disconnect Switch
Product Name
Eaton Navy & Marine molded case circuit breaker handle mechanism
Catalog Number
504C323G07
UPC
786679027004
Product Length/Depth
6.2 in
Product Height
5 in
Product Width
5 in
Product Weight
0.85 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Used with
Visi-Flex DE-ION type disconnect switch
Type
Disconnect switch handle
Special features
Handle assembly, pistol, shape round
Lockout type
Padlockable
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - 504C323G07
Feature → Padlockable lockout capability. Business Impact → Ensures secure maintenance shutoffs and reduces the risk of accidental energization. Application → Marine and offshore installations using Vis-Flex DE-ION disconnect switches. Paragraph 2: Feature → Pistol-shaped round handle for quick, ergonomic operation. Business Impact → Improves operator efficiency and reduces fatigue in tight spaces aboard ships. Application → Navy and offshore electrical panels and maintenance work. Paragraph 3: Feature → Compatibility with Vis-Flex DE-ION disconnect switches. Business Impact → Simplifies installation, minimizes part mismatch, and lowers training time. Application → Retrofit projects and new builds in rugged marine environments. Paragraph 4: Feature → Rugged construction and handle assembly design for harsh conditions. Business Impact → Enhances reliability and reduces maintenance calls in salt spray and vibration. Application → Offshore platforms and industrial marine facilities. Paragraph 5: Feature → Clear warranty and support alignment (Eaton 25-000 policy). Business Impact → Provides predictable coverage and easier budgeting for lifecycle costs. Application → Procurement and long-term service planning in heavy-duty electrical systems.
Get a Quick Quote for a Eaton 504C323G07
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 504C323G07?
Enquire Now
FAQs
Yes, the 504C323G07 is designed to be used with Vis-Flex DE-ION type disconnect switches. It provides a secure handle mechanism suitable for marine environments and supports standard lockout/tagout practices. Proper alignment during installation ensures reliable mechanical engagement and safe operation within naval and offshore electrical panels.
The handle measures 6.2 inches in length, 5 inches in width, and 5 inches in height, with a weight of 0.85 pounds. These dimensions support compact installation in restricted spaces typical of shipboard and offshore electrical gear, while maintaining sufficient handle leverage for reliable operation.
Yes. The 504C323G07 features a padlockable lockout capability, enabling secure maintenance shutoffs and helping enforce lockout/tagout compliance. This is especially important for marine and industrial applications where downtime and safety incidents directly impact operations and regulatory adherence.
The part is covered under Eaton’s standard warranty policy, starting at one year from installation or eighteen months from shipment, whichever occurs first. For additional support, consult Eaton’s catalog and reach out through official distributor channels to verify region-specific terms and service options.
This padlockable disconnect switch handle is best suited for Vis-Flex DE-ION disconnects in navy and marine electrical systems, offshore platforms, and rugged industrial environments. Its design emphasizes safety, reliability, and ease of maintenance in challenging SALT spray, vibration, and confined-space conditions.
