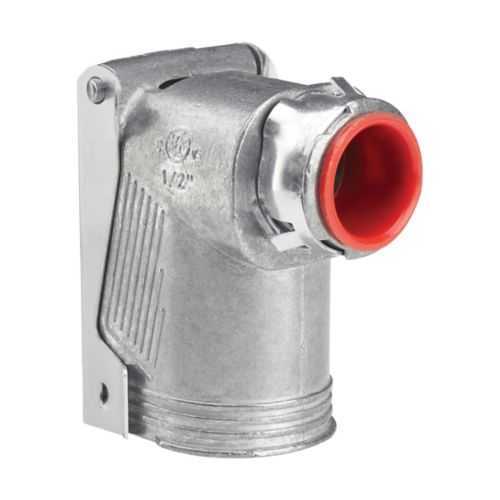

Eaton 50MCQ90 Quick-Lok Pro Connector - 90° NEC/CEC
Part Number: 50MCQ90
Quick Summary
Eaton 50MCQ90 Quick-Lok Pro connector is a rugged AC/MC and FMC armored cable connector designed for industrial wiring applications. Field installers often face slow, error-prone terminations and inconsistent sealing, which can lead to downtime and rework. This model meets NEC/CEC standards and UL Canada certification, making it suitable for ordinary/non-hazardous locations while delivering reliable performance. With a 1/2 inch trade size and a robust zinc die cast body, it supports durable terminations in control panels, junction boxes, and enclosures. By combining fast installation with proven compliance, it helps engineers and procurement teams reduce cycle times and improve project ROI without sacrificing reliability.
Product Information
Extended Description
50MCQ90 Eaton: Eaton Crouse-Hinds series Quick-Lok Pro connector, AC/MC and FMC, 90° angle, Zinc die cast, 1/2"
Product Name
Eaton Crouse-Hinds series Quick-Lok Pro connector
Catalog Number
50MCQ90
UPC
662277071772
Product Length/Depth
7.4 in
Product Height
1.99 in
Product Width
3.43 in
Product Weight
3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
AC/MC and FMC
Connector type
90° angle
Material
Zinc die cast
Trade size
1/2"
Eaton Crouse-Hinds 50MCQ90 3D drawing
Crouse-Hinds series Quick-Lok Pro Connectors - AC/MC and FMC catalog page
Quick-Lok Pro Connectors - AC/MC and FMC Canadian certification
Quick-Lok Pro Connectors - AC/MC and FMC Canadian certification
Eaton Specification Sheet - 50MCQ90
The 90° angle design reduces bending and routing complexity in tight panel spaces, delivering faster installations and cleaner wiring layouts, which translates to lower labor costs and fewer field errors. The zinc die cast construction provides rugged durability against industrial vibration and impact, extending device life in demanding environments and lowering replacement frequency. With a 1/2" trade size, the connector fits standard armor profiles, enabling straightforward compatibility with common AC/MC and FMC cables and minimizing the need for adapters or re-termination. NEC/CEC compliance ensures code-conformant terminations, reducing audit issues and streamlining inspections across projects. Area classification of Ordinary/Non-Hazardous Locations expands usable applications, supporting safer, non-hazardous installations without special enclosures. The Quick-Lok Pro family is designed for fast field assembly, which boosts installation efficiency and helps procurement plans meet tight schedules. Compatibility with both AC/MC and FMC cables minimizes inventory complexity and supports a unified conduit strategy across future deployments.
Get a Quick Quote for a Eaton 50MCQ90
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 50MCQ90?
Enquire Now
FAQs
The 50MCQ90 supports AC/MC and FMC armored cables with a 1/2 inch trade size. Its 90° angle and zinc die cast body are engineered for reliable terminations in standard enclosures, panels, and junction boxes, minimizing the need for additional adapters.
It is certified to NEC/CEC standards and suitable for Ordinary/Non-Hazardous Locations. Canadian certification is also documented, aligning the product with cross-border regulatory requirements for safe, compliant installations.
The Quick-Lok Pro design simplifies field assembly, reducing tool time and rework. The 7.4 in length and compact 3 lb weight enable easy handling in cramped spaces, while the zinc die cast body resists impact and vibration for long-term reliability.
Yes. The connector is designed for AC/MC and FMC cables and features a standard 1/2" trade size, ensuring straightforward compatibility with common armor types and existing conduit fittings used in typical industrial installations.
Eaton provides multiple downloads, including 3D CAD drawings, catalog pages, and the official specification sheet. These resources support precise project planning, BIM integration, and supplier comparisons for informed procurement decisions.
