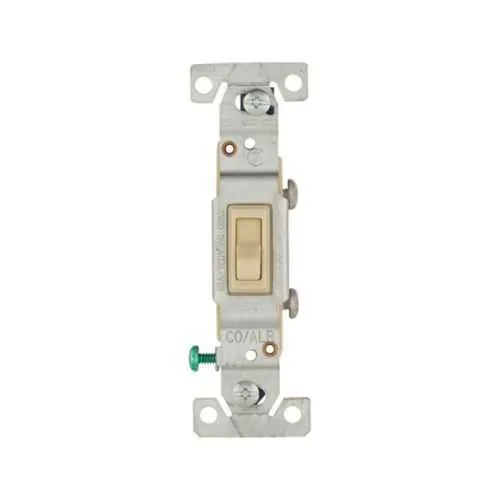

Eaton 5221-7V-BU Toggle Switch - UL 6241-05 Federal Spec
Part Number: 5221-7V-BU
Quick Summary
The Eaton toggle switch 5221-7V-BU delivers dependable single-pole control for lighting, fans, and motor-related loads in residential and light commercial installations. When wiring in restricted spaces or flush-mount panels, technicians often struggle with bulky devices that don’t fit or tolerate mixed load types; this model’s compact form and side-wire terminals help streamline installation. This device meets UL Federal Specification Classification 6241-05, with a 15A, 120V rating and brass terminal enclosure, ensuring reliable performance under a broad range of loads. Its polycarbonate body and ivory color provide durable, code-compliant operation in commercial environments. By aligning with standard wiring practices, it reduces downtime and improves project timelines while supporting energy-efficient control strategies for motors and lighting.
Product Information
Extended Description
5221-7V-BU Eaton: Eaton toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120V, Side wire, Screw, Ivory, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, Polycarbonate
Product Name
Eaton toggle switch
Catalog Number
5221-7V-BU
UPC
032664752162
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL Federal Specification Classification 6241 05
Special features
Bulk
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Side wire
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
Motor Control LED Fan HAL MLV ELV INC CFL FLR
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Color
Ivory
Flush mounting and side-wire terminals enable a compact, space-saving installation. This design reduces panel depth requirements and simplifies field wiring, cutting installation time and minimizing wiring errors. It’s ideal for residential light-control and fan circuits in tight spaces where a neat, reliable switch is essential. 15A at 120V rating delivers robust power handling. This capability supports a broad load spectrum, including LED, CFL, incandescent, and motor-control loads such as fan motors. In practice, it reduces the need for separate devices, improves project timelines, and aligns with standard wiring practices for safer, code-compliant installations. Brass terminal enclosure with screw connections creates secure, low-resistance terminations. The durable connection reduces maintenance costs and vibration-induced loosening. This is beneficial in commercial panels and enclosures where reliable contact timing is critical for uptime. Polycarbonate body and ivory color provide durable, aesthetically acceptable hardware that resists impact and offers long service life. The material choice supports better resistance to accidental bumps in busy facilities, while the neutral ivory finish blends with common interior switchplates, reducing the need for color-matching across a job. UL Federal Specification Classification 6241-05 compliance ensures procurement confidence and traceability. The device’s compatibility with motor-control, LED, and various AC loads makes it suitable for building retrofits and new builds, helping procurement teams standardize stock and reduce spare-part variety, with measurable savings over the project lifecycle.
Get a Quick Quote for a Eaton 5221-7V-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5221-7V-BU?
Enquire Now
FAQs
The 5221-7V-BU uses side-wire connections with screw terminals and accepts #14-10 AWG conductors. Torque is specified at 14 lbf-in for a secure, vibration-resistant connection. This design simplifies field wiring and reduces the risk of loose terminations. It’s well-suited for flush installations in panels where space is limited and neat routing is essential.
Yes. It is rated at 15A and 120V, designed for single-pole switching, and supports a broad load spectrum, including LED, CFL, incandescent, and motor-control loads such as fan motors. This makes it a versatile choice for retrofit projects and new installations where dependable hot-to-load switching is required, with compatibility for standard residential wiring practices.
It carries UL/Federal Specification Classification 6241-05, reflecting compliance with established wiring devices standards. This certification supports code-friendly procurement and reduces risk in projects requiring formal documentation. For buyers, the certification combines with its 120V/15A rating to ensure reliable performance in both new builds and retrofit work while meeting commercial and residential installation requirements.
For flush installation, the device features a compact profile and side-wire wiring. Plan for a 0.88 in width, 3.28 in height, and 1.31 in depth footprint to fit standard wall boxes. A brass terminal enclosure with screw terminals provides secure connections, while the polycarbonate body resists impact. Use #14-10 AWG conductors and torque to 14 lbf-in for best results.
Load type compatibility includes Motor Control, LED, Fan, Halogen, MLV, ELV, CFL, and incandescent loads, making this switch adaptable across varied applications. By supporting multiple load types, it reduces the need for different devices in a project, saving inventory and procurement time. The durable polycarbonate body and brass terminals also minimize maintenance and downtime in busy facilities.
