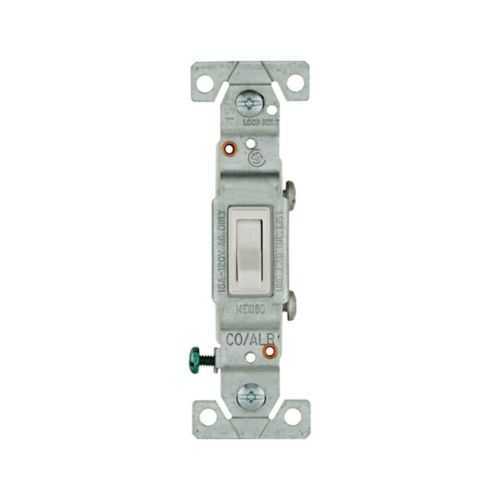

Eaton 5221-7W-BU Toggle Switch - UL 6241 05 Certified
Part Number: 5221-7W-BU
Quick Summary
Eaton toggle switch provides reliable on/off control for residential wiring and lighting loads. This model is designed to simplify installation while delivering predictable, long-term performance. Many projects suffer from compatibility issues and fragile terminations in flush-mount panels; this unit addresses those pain points with a robust, side-wire, screw-terminal design. It is UL listed and compliant with Federal Specification 6241 05, reinforcing safety and reliability in motor, fan, LED, and lighting circuits. The 5221-7W-BU supports a wide load family and 120 V operation, enabling quick, code-compliant wiring. By pairing compact dimensions with a durable polycarbonate body and brass terminals, it offers dependable service in residential settings while reducing retrofit costs and downtime.
Product Information
Extended Description
5221-7W-BU Eaton: Eaton toggle switch, #14-10 AWG, 15A, Flush, 120V, Side wire, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, Polycarbonate
Product Name
Eaton toggle switch
Catalog Number
5221-7W-BU
UPC
032664752193
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL Federal Specification Classification 6241 05
Special features
Bulk
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Side wire
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
INC CFL MLV FLR Motor Control Fan LED ELV HAL
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Color
White
Feature: 15A at 120V single-pole with flush mounting and side-wire connections. Business Impact: Handles standard residential lighting and small motor loads with low risk of nuisance trips, enabling clean, space-efficient panel layouts. Application: Ideal for indoor wall boxes, fan controls, and lighting circuits where a slim, unobtrusive switch is preferred. Feature: Rugged polycarbonate body with brass terminal enclosure. Business Impact: Delivers chemical and corrosion resistance with strong heat tolerance, improving uptime in basements, garages, or utility rooms. Application: Suitable for high-use residential panels and light commercial hand-off points. Feature: Side-wire wiring compatible with #14-10 AWG and screw terminals. Business Impact: Simplifies field wiring, reduces installation time, and minimizes wiring errors, lowering labor costs. Application: Quick retrofit in existing installations or new-builds with common AWG ranges. Feature: Broad load compatibility including INC CFL MLV FLR Motor Control Fan LED ELV HAL. Business Impact: Reduces part count by supporting multiple loads from a single switch, boosting inventory efficiency and project flexibility. Application: Versatile control across lighting, fans, LEDs, and low-voltage drive scenarios. Feature: Certifications and compliance: UL listing and Federal Specification 6241 05. Business Impact: Provides regulatory assurance and audit-ready documentation, reducing risk and rework during code inspections. Application: Suitable for residential and light commercial circuits that demand proven safety and conformity.
Get a Quick Quote for a Eaton 5221-7W-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5221-7W-BU?
Enquire Now
FAQs
The 5221-7W-BU uses a flush-mount design with side-wire connections and screw terminals. Plan for a 1-pole configuration, ensure #14-10 AWG conductors, and torque to 14 lbf‑inch for reliable terminal integrity. Mounting depth is compact, enabling space-efficient panel layouts in residential enclosures, and its brass terminals support secure, corrosion-resistant terminations.
This model is rated for 15A at 120V and configured as a single-pole switch. It supports a broad range of loads including incandescent, CFL, LED, ELV, MLV, and motor-related loads such as fans, motors, and lighting. Its load-type compatibility reduces the need for multiple devices in a given panel setup.
Yes. With a 15A/120V rating, single-pole operation, and flush mounting, it is well suited for residential lighting and small motor-control applications, as well as light commercial panels. Its durable polycarbonate body and brass terminals provide long-term reliability in typical indoor environments.
The switch is UL listed and complies with Federal Specification 6241 05, ensuring safety and conformity to applicable government and industry standards. These certifications simplify audits, improve buyer confidence, and support code-compliant installations across residential and light commercial projects.
Benefits include durable construction with a polycarbonate body and brass terminals that resist wear and corrosion, reducing maintenance intervals. The wide load compatibility minimizes part diversity, lowering inventory costs. The straightforward side-wire installation reduces labor time, delivering a faster return on investment on retrofits and new installations.
