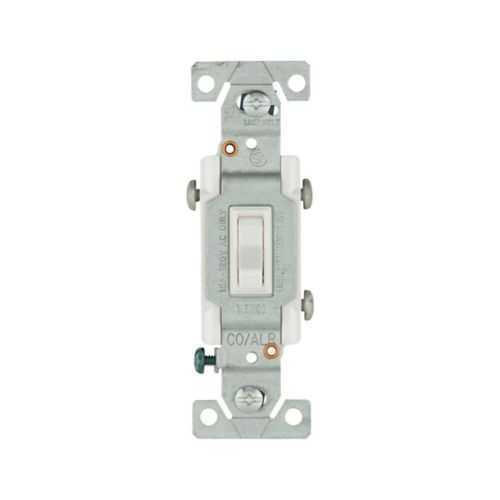

Eaton 5223-7W-BU Toggle Switch - Residential UL 6241 05
Part Number: 5223-7W-BU
Quick Summary
Eaton toggle switch delivers reliable residential lighting control for wall-mounted circuits. In retrofit projects, tight spaces and mixed wiring methods can slow installation, but this model’s side-wire terminals and screw connections simplify field wiring. It carries UL Federal Specification Classification 6241 05 and is suited for standard residential wiring, delivering safety and regulatory compliance. Built for contractors and procurement teams, this 15A, 120V, three-way capable unit reduces stocking diversity by covering common lighting loads. Its polycarbonate body and brass terminal enclosure offer durability in busy electrical environments, while a white finish blends with typical wall decor. This combination translates to faster installs, fewer call-backs, and reliable long-term operation for residential projects.
Product Information
Extended Description
5223-7W-BU Eaton: Eaton toggle switch, 15A, Residential, Wall, 120V, Side wire, Screw, White, Three-Way
Product Name
Eaton toggle switch
Catalog Number
5223-7W-BU
UPC
032664752209
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL Federal Specification Classification 6241 05
Special features
Bulk
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Side wire
Switch type
Three-way
Mounting method
Wall
Connector type
Screw
Load type
ELV INC HAL FLR Motor Control MLV CFL LED Fan
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Terminal enclosure material
Brass
Color
White
Feature 1: Amperage rating of 15A at 120V. Business impact: Supports standard residential lighting circuits with margin for multiple load types, reducing nuisance tripping and service calls. Application: Ideal for living rooms, hallways, and bedrooms where reliable, code-compliant control is essential. Feature 2: Three-way capability with single-pole support. Business impact: Enables multi-location control without carrying multiple devices, lowering inventory and installation time. Application: Multi-location hallway and stairwell lighting where coordinated switching is required. Feature 3: Side-wire wiring and screw terminals for #14-10 AWG. Business impact: Fast, secure terminations that minimize wiring errors and rework. Application: New installations and retrofit projects across standard residential circuits. Feature 4: Durable polycarbonate housing and brass terminal enclosure. Business impact: High-impact resistance and corrosion-resistant connections reduce maintenance cycles. Application: High-traffic areas like kitchens and entryways where switches endure frequent use. Feature 5: Load-type compatibility across ELV, INC, HAL, FLR, MLV, CFL, LED, and Fan. Business impact: Broad compatibility reduces the need for multiple devices and simplifies procurement. Application: Modern homes with mixed lighting technologies. Feature 6: UL 6241 05 classification and compact wall-mount design. Business impact: Regulatory assurance supports spec-compliant projects and streamlined approvals. Application: Residential new-builds and retrofit sites seeking proven safety and fit.
Get a Quick Quote for a Eaton 5223-7W-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5223-7W-BU?
Enquire Now
FAQs
Begin by turning off power at the breaker. Remove the existing switch and verify the box has space for a standard single-gang device. Use side-wire terminals or the included screw terminals for conductors up to #14-10 AWG, tighten to the specified torque (14 lbf-in), and mount the switch in the wall box. If configuring as a three-way circuit, connect the travelers per standard three-way wiring guidance. Restore power and test the circuit for proper operation. This model’s brass terminal enclosure and polycarbonate body contribute to a durable, vibration-resistant installation and long-term reliability.
The 5223-7W-BU is designed as a three-way capable toggle switch while still supporting single-pole operation, enabling multi-location control without additional devices. This reduces parts stock and simplifies wiring in stairwells or large rooms. Its robust terminals and rated 15A/120V ensure consistent performance when used with commonly wired lighting loads and compatible traveler configurations.
Yes. The switch provides broad load-type compatibility including LED, CFL, and traditional incandescent or halogen lighting. This versatility minimizes the need for multiple devices in mixed-load environments and supports modern residential lighting without sacrificing reliability. When wiring LED/CFL loads, ensure proper dimmer or switch compatibility with your specific fixtures and adhere to the 15A, 120V rating.
This model carries UL Federal Specification Classification 6241 05, indicating compliance with stringent safety and performance standards for residential wiring devices. Certification reduces project risk, streamlines procurement, and supports code compliance in new installations or retrofits. Relying on UL 6241 05 certified switches helps ensure consistent quality and safer, long-term operation.
The switch’s durable polycarbonate housing and brass terminal enclosure minimize maintenance needs and service calls in high-traffic areas. Its 15A/120V rating and three-way capability reduce part variety, lowering total inventory. Quick, secure wiring with side-wire connections saves installation time, delivering a faster return on investment through reduced labor costs and improved system reliability.
