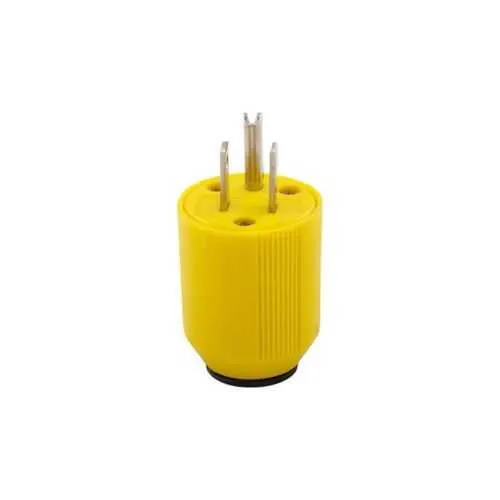

Eaton 5266NCR Plug - Corrosion Resistant 15A/125V, cULus
Part Number: 5266NCR
Quick Summary
Eaton 5266NCR corrosion resistant straight blade plug provides reliable, plug-in connectivity for industrial equipment. In harsh environments, corrosion and wire fatigue can cause outages and expensive downtime, so a rugged, long-life solution is essential. This plug combines a heavy-duty industrial specification grade with a nylon body that stands up to corrosive conditions, RoHS compliance, and cULus safety certification for peace of mind across supply chains. It supports back-wire wiring with #18-12 AWG conductors, 15A at 125V, and a two-pole, three-wire grounding configuration for standard 5-15P applications. The yellow color enhances visibility in cluttered electrical zones, while the 14 lbf-in torque rating promotes consistent, secure terminations. These attributes translate to lower maintenance costs and improved equipment uptime.
Product Information
Extended Description
5266NCR Eaton: Eaton Arrow Hart corrosion resistant straight blade plug, #18-12 AWG, 15A, Industrial, 125V, Back wire, Yellow, Brass, Corrosion resistant, Nylon, 5-15P, Two-pole, three-wire, grounding, Screw, Nylon, Core pack
Product Name
Eaton Arrow Hart corrosion resistant straight blade plug
Catalog Number
5266NCR
UPC
040893017655
Product Length/Depth
1.91 in
Product Height
4.13 in
Product Width
1.78 in
Product Weight
0.181 lb
Compliances
RoHS Compliant
Certifications
cULus Listed Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Environmental conditions
Corrosive
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Material
Nylon
Packaging type
Core pack
Environmental resistance
Corrosion resistant
Color
Yellow
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Complex environment devices brochure
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5266NCR
Feature: Corrosion-resistant nylon body delivers extended service life in corrosive environments. Benefit: Reduces replacement frequency and maintenance costs, boosting uptime for industrial equipment. Application: Suitable for plants with chemical exposure or washdown zones where connector longevity matters. Feature: 15A at 125V electrical rating supports typical industrial loads without overdesigning the circuit. Benefit: Enables safer, compliant power delivery to standard equipment while minimizing wasteful overspecification. Application: Tools, motors, and control devices in general-purpose industrial settings. Feature: Back-wire wiring method with #18-12 AWG conductors and screw terminals. Benefit: Faster field terminations with reliable, solid connections and reduced installation time. Application: On-site electrical tie-ins where quick wiring is essential. Feature: High-visibility yellow housing and robust screw-term connection. Benefit: Improves installation accuracy in busy environments and ensures durable mechanical retention. Application: Harsh plant floors, outdoor-rated spaces, and equipment bays requiring quick identification. Feature: RoHS compliance, cULus listing, and Federal Specification 6221 02. Benefit: Supports regulatory compliance and procurement processes, reducing risk in audits and standards-based sourcing. Application: Automotive, industrial, and facilities projects with strict safety requirements. Feature: NEMA 5-15P compatibility with two-pole, three-wire grounding and back-wire option. Benefit: Seamless integration with common receptacles and equipment designed for 125V systems, minimizing adapter needs. Application: General-purpose industrial outlets and equipment with standard 5-15P plugs.
Get a Quick Quote for a Eaton 5266NCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5266NCR?
Enquire Now
FAQs
The 5266NCR uses back-wire wiring with #18-12 AWG conductors and accepts three wires in a two-pole, three-wire grounding configuration. It features screw terminals and a torque rating of 14 lbf-in to ensure secure terminations. This makes field installations straightforward and compliant with standard 5-15P equipment.
The plug uses a nylon body with corrosion-resistant properties, designed to withstand caustic or humid industrial environments. This reduces maintenance downtime, extends service life, and lowers total cost of ownership by minimizing frequent replacements in harsh plants.
Yes. It is a NEMA 5-15P configured plug intended for industrial applications, with a two-pole, three-wire grounding arrangement. Its back-wire option and screw connections support common equipment and receptacles, simplifying integration into existing power chains.
The 5266NCR is RoHS compliant and cULus Listed, with Federal Specification Classification 6221 02. These certifications confirm safety, regulatory compliance, and suitability for procurement in regulated industries, reducing risk in audits and supplier qualification processes.
By combining corrosion resistance, a durable nylon body, and reliable back-wire terminations, the plug minimizes downtime and maintenance costs. Its 15A/125V rating aligns with typical industrial loads, reducing the need for over-specification, while clear color coding and secure screw terminations lower installation errors and lifecycle expenses.
