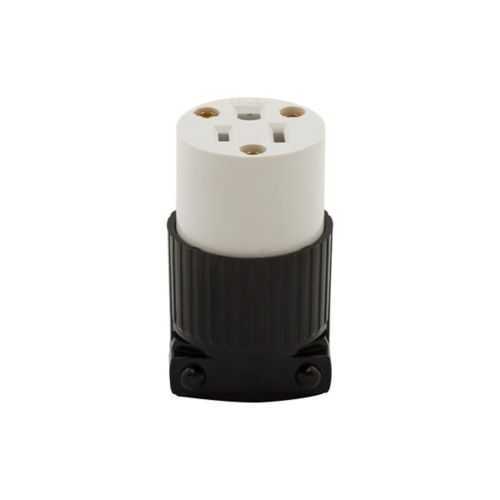

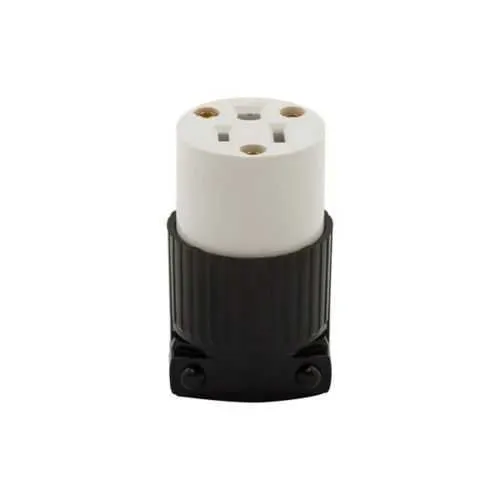

Eaton 5269 Arrow Hart Connector - UL/NOM 6221 Spec
Part Number: 5269
Quick Summary
Eaton Arrow Hart ultra grip straight blade connector is designed for industrial wiring applications. Engineers often struggle with secure termination of small-diameter conductors in cramped control panels, leading to intermittent connections. This model carries UL and NOM Federal Specification Classification 6221 02 certifications, along with 125V 15A ratings, ensuring reliability in harsh environments. With a brass contact and nylon face supported by thermoplastic/polycarbonate body, it resists wear in tough environments, reducing maintenance. Its back-wire capability and color-coded construction simplify installation, while compatibility with #18-12 AWG and two-pole grounding configurations support fast, compliant panel wiring. The overall design delivers safety, durability, and cost savings for industrial wiring devices.
Product Information
Extended Description
5269 Eaton: Eaton Arrow Hart ultra grip straight blade connector, #18-12 AWG, 15A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Thermoplastic, Polycarbonate, Core pack
Product Name
Eaton Arrow Hart ultra grip straight blade connector
Catalog Number
5269
UPC
032664392405
Product Length/Depth
1.91 in
Product Height
4.13 in
Product Width
1.78 in
Product Weight
0.165 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
15A
NEMA configuration
5-15R
Voltage rating
125V
Wiring method
Back wire
Color
White Black
Contact material
Brass
Face/body material
Nylon
Material
Thermoplastic, Polycarbonate
Packaging type
Core pack
Allowable wire size
#18-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Connector
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Connector
Wiring Devices Buyer’s Guide
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5269
Back-wire termination reduces field assembly time and minimizes loose connections, translating to lower labor costs and improved reliability in panel wiring. This design addresses common issues where screw terminations loosen under vibration, ensuring stable connections for industrial equipment. The 5269 supports #18-12 AWG conductors with a 0.33-0.66 inch cord range, enabling flexible wiring layouts in compact enclosures and control cabinets. A two-pole, three-wire grounding receptacle with an extra heavy-duty industrial specification grade provides dependable performance in demanding environments, reducing downtime and replacement costs. The brass contact and nylon face paired with a thermoplastic, polycarbonate housing deliver durable, corrosion-resistant performance, improving long-term maintenance intervals. Color-coded white and black aids quick identification, decreasing wiring errors during installations and field retrofits. Compatible with standard 5-15R NEMA configurations, it integrates smoothly with common wiring devices and control panels. The back-wire method also simplifies retrofits, making upgrades faster and more cost-effective for equipment operators and electricians alike.
Get a Quick Quote for a Eaton 5269
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5269?
Enquire Now
FAQs
Installers should use the back-wire termination, inserting the stripped conductor directly into the terminal with the screw secured. This method offers a secure, vibration-resistant connection suitable for control panels and compact enclosures.
The connector is rated for 15A at 125V and uses a two-pole, three-wire grounding configuration (NEMA 5-15R). It accepts #18-12 AWG conductors and supports back-wire termination for reliable panel wiring.
Yes. The 5269 is designed for industrial use with UL and NOM Federal Specification Classification 6221 02 certifications, ensuring regulatory compliance and dependable performance in rugged applications.
The connector uses brass contacts for reliable conductivity, a nylon face, and a thermoplastic/polycarbonate body for durability and resistance to wear in demanding environments, reducing maintenance intervals.
Yes. The color-coded white/black body and back-wire termination simplify identification and installation, minimizing mis-wiring risks during upgrades and retrofits in industrial control panels.
