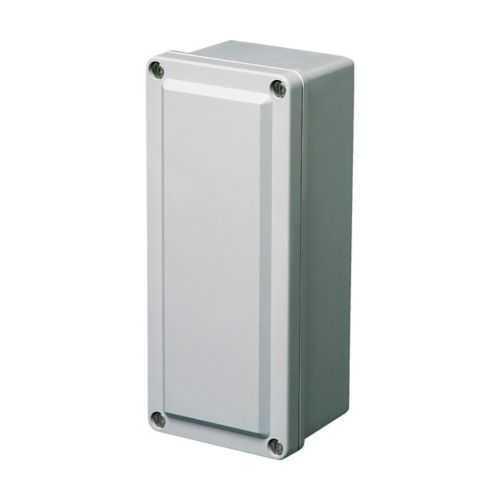

Eaton 532-4XFSC JIC panel enclosure - NEMA 4X fiberglass
Part Number: 532-4XFSC
Quick Summary
The Eaton 532-4XFSC JIC panel enclosure protects control wiring in rugged industrial panels. In harsh environments, operators contend with corrosion, limited access, and the need for reliable seals. It carries UL 50, NEMA 4X, and CSA C22.2 certifications, ensuring safe, compliant enclosure performance. Built from fiberglass, it offers corrosion resistance and lighter handling, while wall mounting and optional external feet simplify installation and future upgrades; this fiberglass enclosure aligns with the Eaton B-Line ecosystem and provides dependable, long-term value. The wall-mount design is space-efficient for control rooms, with options for external feet that simplify vibration-sensitive installations in manufacturing lines. Its medium single door format supports easy access without compromising enclosure integrity.
Product Information
Extended Description
532-4XFSC Eaton: Eaton B-Line series JIC panel enclosure, 5.97" height, 3.14" length, 3.63" width, NEMA 4X, Screw cover, 4XFSC enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
532-4XFSC
UPC
782051523393
Product Length/Depth
3.14 in
Product Height
5.97 in
Product Width
3.63 in
Product Weight
1 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFSC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
Optional external mounting feet
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction with a seamless poured-in-place gasket provides durable environmental sealing. Business Impact: This combination offers superior corrosion resistance, lighter weight, and extended service life, reducing maintenance costs and downtime. Application: Ideal for chemical processing plants, water treatment, and outdoor installations where metal enclosures would corrode or add weight. Feature: NEMA 4X rating paired with UL 50 and CSA C22.2 certifications ensures electrical protection against washdown, dust, and moisture. Business Impact: Compliance accelerates approvals, minimizes regulatory risk, and streamlines inspections. Application: Suitable for harsh production floors, food and beverage processing, and outdoor control panels in fluctuating climates. Feature: Screw cover and wall-mount design with optional external mounting feet. Business Impact: Enables fast, tool-free access and flexible installation, reducing field labor and rework. Application: Wall-mounted panels in switchgear rooms and retrofit projects where mounting options and space are constrained. Feature: Medium single door model 4XFSC with dimensions of 5.97 in height, 3.14 in depth, and 3.63 in width. Business Impact: Maximizes interior usable space while maintaining a compact footprint. Application: Small- to mid-size control panels where space is at a premium. Feature: Fiberglass enclosure weight listed as 1 lb and gray unfinished finish. Business Impact: Easier transport, faster installation, and reduced shipping costs; field touch-up or painting is straightforward. Application: Rapid deployment in modular automation cabinets, lab benches, and installation sites requiring easy handling.
Get a Quick Quote for a Eaton 532-4XFSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 532-4XFSC?
Enquire Now
FAQs
This enclosure is designed for wall mounting and offers an optional external mounting feet kit. It uses a screw-cover for rapid service access and features a medium single-door configuration to maximize interior space without sacrificing enclosure integrity. For installation, align mounting feet correctly, verify gasket seals, and position the unit to protect wiring from moisture and dust while meeting NEMA 4X protection requirements.
Key specs include a height of 5.97 in, depth of 3.14 in, and width of 3.63 in, with a weight of 1 lb. The enclosure is made from fiberglass with an unfinished gray finish, uses a screw cover, and is rated UL 50 with NEMA 4X and CSA C22.2 certifications. These features support durable, compliant control panel protection in demanding environments.
Yes. The NEMA 4X rating and fiberglass construction make it suitable for outdoor and washdown environments, providing protection against moisture, dust, and corrosion. For best results, mount it per the instruction manual, use the gasket correctly, and consider optional external feet for stable outdoor installation on walls or supports.
The enclosure meets UL 50, NEMA 4X, and CSA C22.2 standards, confirming mechanical integrity and electrical enclosure protection. These certifications support regulatory compliance for industrial installations, facilitate inspections, and help ensure safe operation for control panels in harsh or wet environments.
Fiberglass enclosures resist corrosion far better than metal, reducing maintenance frequency and replacement costs in aggressive environments. The lighter weight simplifies handling and shipping, and the seamless gasket minimizes leaks. Over the life of a control panel, the enclosure contributes to lower total cost of ownership due to longer service intervals and easier field servicing.
