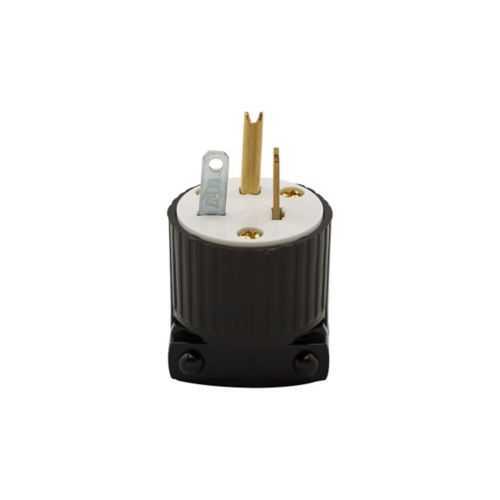

Eaton 5366 Arrow Hart Ultra Grip Straight Blade Plug - UL NOM 6221 02
Part Number: 5366
Quick Summary
The Eaton Arrow Hart ultra grip straight blade plug is a rugged 20A, 125V connector designed for industrial wiring. Its back-wire termination addresses field installation frustrations where terminals loosen under vibration and frequent panel removals. Certified to UL NOM Federal Specification Classification 6221 02 with a durable nylon body and brass contacts. NEMA 5-20P configuration supports common industrial power layouts, while the color options and robust construction promote safer, standardized wiring. With reliable termination options and a core-pack packaging approach, this plug fits well in Wiring Devices and industrial connectivity programs. Engineers and procurement teams gain lower maintenance costs and faster installation, improving project timelines. This combination strengthens compliance while supporting scalable, repeatable wiring strategies across facilities.
Product Information
Extended Description
5366 Eaton: Eaton Arrow Hart ultra grip straight blade plug, #16-12 AWG, 20A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart ultra grip straight blade plug
Catalog Number
5366
UPC
032664393808
Product Length/Depth
2.75 in
Product Height
6.5 in
Product Width
3.5 in
Product Weight
0.12 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
20A
NEMA configuration
5-20P
Voltage rating
125V
Wiring method
Back wire
Color
Black White
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Wiring Devices Buyer’s Guide
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5366
Feature: Nylon body and brass contact materials provide high strength, corrosion resistance, and long service life. Benefit: Reduced maintenance and fewer field failures in demanding environments, translating to lower total cost of ownership for industrial wiring projects. Application: Control panels and machine enclosures where durable terminations are critical. Feature: Back-wire and screw-termination options offer flexible installation. Benefit: Faster, secure terminations that stay tight through vibration, minimizing rework during panel upgrades. Application: Industrial wiring in equipment housings and switchgear where vibration is common. Feature: Accepts #16-12 AWG wires with a cord range of 0.33–0.66 inches. Benefit: Broad compatibility with standard field wiring practices, simplifying stocking and field labor. Application: Wiring runs in conveyors, presses, and automation stations. Feature: 20A at 125V with NEMA 5-20P configuration. Benefit: Supports common high-demand industrial loads while preserving plug–receptacle compatibility. Application: Power feeds to motors, controllers, and control panels. Feature: Extra heavy-duty industrial specification grade and nylon face/body construction. Benefit: Superior performance under harsh factory conditions, including chemical exposure and temperature variation. Application: Heavy manufacturing, packaging lines, and material handling. Feature: Core-pack packaging and color options (Black/White) aid inventory control and code compliance. Benefit: Simplified procurement, faster identification, and reduced error during wiring projects. Application: Stocking for large facilities and multi-site installations.
Get a Quick Quote for a Eaton 5366
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5366?
Enquire Now
FAQs
The 5366 accepts solid #16-12 AWG conductors via back-wire and provides a secure screw-terminal option. Proper stripping length and clean insertion ensure a solid clamp, reducing the chance of loose connections in vibration-prone panels. This makes field wiring faster and more reliable for industrial control circuits.
Yes. The 5366 is a two-pole, three-wire grounding straight-blade plug rated at 20A and 125V, designed for NEMA 5-20P configurations. It aligns with standard industrial power layouts, enabling safe and consistent connections in control panels and equipment enclosures.
The plug carries UL NOM Federal Specification Classification 6221 02, confirming compliance with established electrical safety and performance criteria for industrial wiring devices, which helps streamline regulatory approvals and supplier qualification in manufacturing environments.
The 5366 features a nylon body with brass contacts, designed for back-wire or screw termination, and supports #16-12 AWG with a cord range of 0.33–0.66 inches. Its robust nylon/Brass construction and the standard configuration help ensure compatibility with common panel cutouts and protective enclosures used in industrial facilities.
With durable nylon construction, secure terminations, and vibration resistance, the 5366 reduces field rework and downtime, improving maintenance efficiency. The combination of core-pack packaging and standard wiring compatibility also lowers stocking costs and speeds installation, delivering cost savings over long project lifecycles in heavy-duty manufacturing environments.
