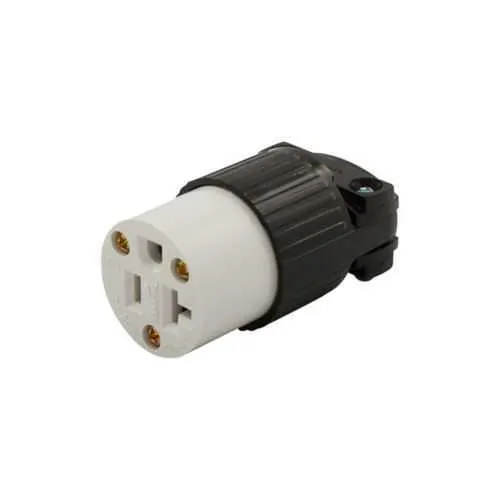

Eaton 5369 Arrow Hart straight-blade connector - cULus Listed
Part Number: 5369
Quick Summary
The Eaton Arrow Hart ultra grip straight blade connector is designed to secure #16-12 AWG conductors in industrial control panels. This minimizes incorrect wire terminations and reduces rework in high-mix, low-batch manufacturing environments. Key certifications include UL NOM, Federal Specification Classification 6221 02, and cULus Listed, ensuring safety and performance. From its nylon body to brass contacts, it resists heat, vibration, and contamination while maintaining reliable terminations. Back-wire compatibility and a compact 6.5 by 3.5 by 1.5 inch form simplify installation and inventory planning. Its two-pole, three-wire receptacle with grounding supports safer equipment, while the 0.33-0.66 inch cord range suits a range of industrial cables. Designed for back-wire screw terminations, this connector reduces field labor and ensures repeatable, code-compliant assemblies. Engineers value its rugged construction and proven Eaton durability on the factory floor.
Product Information
Extended Description
5369 Eaton: Eaton Arrow Hart ultra grip straight blade connector, #16-12 AWG, 20A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-20R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart ultra grip straight blade connector
Catalog Number
5369
UPC
032664390609
Product Length/Depth
6.5 in
Product Height
1.5 in
Product Width
3.5 in
Product Weight
0.176 lb
Certifications
UL NOM Federal Specification Classification 6221 02 cULus Listed
Amperage Rating
20A
NEMA configuration
5-20R
Voltage rating
125V
Wiring method
Back wire
Color
White Black
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Connector
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Connector
Wiring Devices Buyer’s Guide
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5369
Feature: Amperage rating of 20A and voltage rating of 125V with back-wire wiring. Business impact: Delivers reliable performance for control panels, reducing mis-termination risk and rework. Application: Suitable for #16-12 AWG conductors in industrial equipment and power distribution blocks. Feature: Back-wire wiring method paired with a screw connection for secure terminations. Business impact: Cuts installation time and improves consistency across technicians. Application: Used in industrial control panels, motor starters, and equipment housings. Feature: Nylon body and brass contacts provide durability and corrosion resistance. Business impact: Withstands heat and vibration while maintaining low contact resistance. Application: Harsh industrial environments, where longevity matters. Feature: Certifications including UL NOM Classification 6221 02 and cULus Listed. Business impact: Ensures regulatory compliance and safe operation in regulated facilities. Application: Required in many manufacturing and process environments. Feature: Cord range of 0.33–0.66 inches and straight blade, two-pole design. Business impact: Supports a broad range of wires and simple integration into existing harnesses. Application: Panel wiring and equipment enclosures where space is constrained. Feature: Core pack packaging and color options (White/Black) enable efficient stocking and quick identification. Business impact: Reduces waste and speeds kitting in high-mupply environments. Application: Inventory planning for large assemblies and field service kits.
Get a Quick Quote for a Eaton 5369
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5369?
Enquire Now
FAQs
Begin by ensuring the wire insulation is stripped to the specified length and the conductor is clean. Insert the stripped wires into the back-wire terminals or screw lugs as indicated, then tighten to the recommended torque. Verify insulation clearance and conduct a continuity check to confirm a solid termination before powering the circuit.
The 5369 carries UL NOM Classification 6221-02 and is cULus Listed, with UL and Federal Specification references. These certifications demonstrate conformance to safety and performance standards for industrial wiring devices, helping you meet regulatory requirements and reduce risk during audits and inspections.
Yes. The receptacle is designed as two-pole, three-wire with grounding, providing a dedicated path to earth for fault conditions. This enhances protection for operators and equipment, supporting safer startup sequences and compliant enclosure wiring in control systems.
The connector is rated for 20A at 125V with back-wire termination. This makes it suitable for standard industrial control loads and machinery harnesses. When selecting, ensure your circuit load, wire gauge (#16-12 AWG), and environmental conditions fall within these ratings to maintain safe operation.
The 5369 reduces field wiring time with back-wire and screw-term compatibility, lowering labor costs and commissioning time. Its durable nylon body and brass contacts resist wear in vibration-heavy facilities, reducing replacement frequency and downtime—yielding measurable savings over the lifecycle of control panels and industrial equipment.
