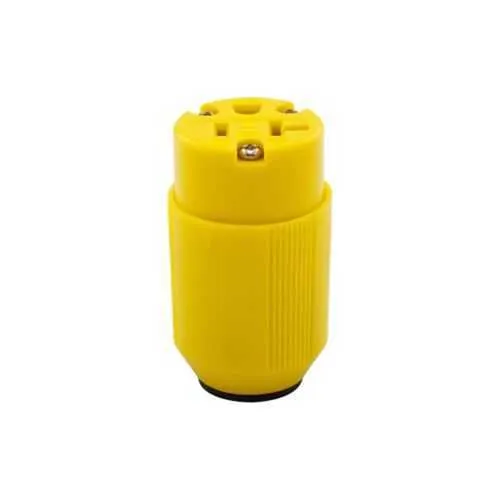

Eaton 5369NCR Straight Blade Connector - cULus Listed
Part Number: 5369NCR
Quick Summary
Eaton Arrow Hart corrosion resistant straight blade connector provides durable, reliable power connections for industrial equipment wiring. Many engineers face corrosion, cluttered back-wire setups, and inconsistent panel fit that slow installation and raise maintenance costs. This model carries RoHS compliance and is cULus Listed, with a nickel-plated brass contact and a corrosion-resistant nylon body engineered for heavy-duty industrial environments. The 5369NCR supports back wiring with 20A at 125V and a two-pole, three-wire grounding configuration, making it a safer, more efficient choice for control panels, machinery, and automation equipment. By combining robust materials with straightforward installation, it reduces downtime and extends service life while aligning with standard wiring practices and procurement requirements.
Product Information
Extended Description
5369NCR Eaton: Eaton Arrow Hart corrosion resistant straight blade connector,#16-12 AWG,20A,Industrial,125V,Back wire,Yellow,Nickel-plated brass,Corrosion resistant,Nylon,5-20R,Two-pole,three-wire,grounding,Screw,0.33-0.66",Nylon,Core pack
Product Name
Eaton Arrow Hart corrosion resistant straight blade connector
Catalog Number
5369NCR
UPC
040893018904
Product Length/Depth
4.25 in
Product Height
1.75 in
Product Width
2 in
Product Weight
0.4 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Device type
Connector
Type
Connector
Amperage Rating
20A
Voltage rating
125V
Contact material
Nickel plated brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Environmental conditions
Corrosive
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.33-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Environmental resistance
Corrosion resistant
Color
Yellow
Connection type
Screw
Allowable wire size
#16-12 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Complex environment devices brochure
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5369NCR
Corrosion-resistant nylon body with nickel-plated brass contacts delivers extended service life in harsh environments, reducing replacement costs and downtime in industrial settings. Back-wire wiring with a screw connection and a torque rating of 14 lbf-in provides a secure, vibration-resistant connection that supports reliable operation in control panels and automation cabinets. The 20A, 125V, two-pole, three-wire grounding (NEMA 5-20R) configuration ensures compatibility with common cord sets and equipment, simplifying installation across machinery and panel assemblies. The yellow, nylon housing supports quick visual identification and compatibility with core-pack packaging for efficient stocking and field deployment. Compliance factors like RoHS and cULus listing streamline procurement, while the overall design aligns with heavy-duty industrial specification requirements for safer, compliant wiring.
Get a Quick Quote for a Eaton 5369NCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5369NCR?
Enquire Now
FAQs
Install using the back-wire method with the screw terminals. Ensure the wiring uses #16-12 AWG conductors, tighten to 14 lbf-in torque, and verify the two-pole, three-wire grounding configuration (5-20R). Mount the connector on a suitable panel cutout, then secure with the provided hardware and verify proper polarity before energizing.
The 5369NCR is rated for 20A at 125V, supports #16-12 AWG conductors, and features a two-pole, three-wire grounding receptacle (NEMA 5-20R). It uses nickel-plated brass contacts and a Nylon body, providing robust performance in industrial environments.
Yes. The connector features a corrosion-resistant nylon body and nickel-plated brass contacts, designed for industrial applications where exposure to chemicals or moisture is possible, helping to extend service life and reduce replacement costs.
The 5369NCR is RoHS compliant and cULus Listed, meeting core safety and environmental standards for industrial wiring and panel assemblies, which simplifies procurement and regulatory compliance for equipment installations.
The corrosion-resistant materials, secure back-wire connections, and standard NEMA configuration reduce maintenance downtime and replacement frequency. This translates to lower lifecycle costs, safer operation, and quicker field service for control panels and automation equipment.
