Eaton 5466AN Angled plug - UL NOM 6221 02 Certification
Part Number: 5466AN
Quick Summary
The Eaton 5466AN Angled plug provides back-wire, 20A power connections for industrial equipment. In harsh plants, loose terminations derail productivity and create safety risks, so reliable connectors matter. It carries UL and NOM listings with Federal Specification Classification 6221 02 and RoHS compliance, signaling readiness for regulated environments. Built for Arrow Hart wiring devices, its nylon body and brass contacts deliver durability without sacrificing performance. For procurement teams, the back-wire method, 0.33–0.66 inch wire range, and 7.5 inch length streamline panel assemblies and reduce maintenance across industrial applications. This combination supports faster install times, lower field service costs, and dependable operation in control panels, motors, and equipment racks.
Product Information
Extended Description
5466AN Eaton: Eaton Arrow Hart ultra grip straight blade angled plug, #16-12 AWG, 20A, Industrial, 250V, Back wire, Black and white, Brass, Nylon, 6-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

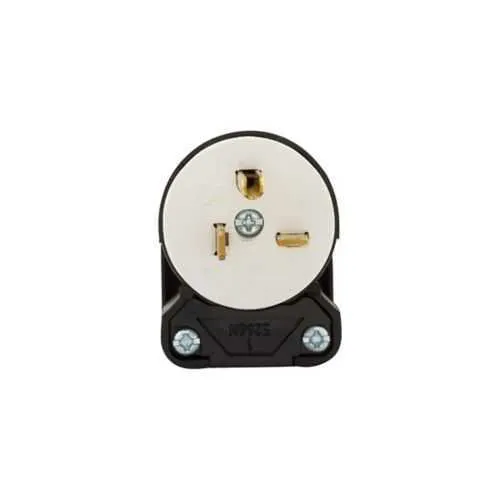

Eaton Arrow Hart ultra grip straight blade angled plug
Catalog Number
5466AN
UPC
032664519536
Product Length/Depth
7.5 in
Product Height
1.5 in
Product Width
4.5 in
Product Weight
0.105 lb
Compliances
RoHS Compliant
Certifications
UL NOM Federal Specification Classification 6221 02
Amperage Rating
20A
NEMA configuration
6-20P
Torque rating
14 lbf-inch
Voltage rating
250V
Wiring method
Back wire
Color
Black and white
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#16-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty industrial specification grade
Device type
Angled plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Angled body
Type
Angled plug
Arrow Hart Buyers Guide B-12
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5466AN
Feature: Amperage and voltage rating of 20A at 250V. Business Impact: Enables safe handling of standard industrial loads while maintaining a robust safety margin. Application: Suitable for 6-20P receptacles in control panels and motor starters, reducing the need for parallel connectors. The specification supports measurable improvements in electrical performance and compliance. Feature: Back-wire termination for #16-12 AWG conductors. Business Impact: Simplifies installation, improves termination consistency, and lowers labor time by eliminating punch-down steps. Application: Quick field terminations in panel assemblies and equipment racks without sacrificing reliability. Feature: Nylon face/body with brass contact material. Business Impact: Delivers durable, corrosion-resistant performance in harsh environments, extending service life and reducing maintenance cycles. Application: Industrial wiring devices exposed to vibration and temperature swings. Feature: Cord range 0.33–0.66 inches in diameter. Business Impact: Accommodates a broad set of acceptable conductors, enabling flexible wiring strategies and inventory simplification. Application: Wiring runs from control panels to machines with varying cable diameters. Feature: NEMA configuration 6-20P, straight blade angled plug, and two-pole design. Business Impact: Ensures compatibility with common industrial power systems while maintaining secure grounding and reduced mis-wiring risk. Application: Panel-mounted power inputs in manufacturing lines and equipment enclosures. Feature: Device grade and packaging (Extra heavy-duty industrial spec; core pack). Business Impact: Delivers proven ruggedness for long service life and easy, waste-reducing stocking. Application: High-use environments where downtime costs matter. Feature: Compliance and certifications (RoHS, UL NOM 6221 02). Business Impact: Supports regulatory conformity and risk mitigation across supply chains. Application: Environments governed by RoHS and safety standards.
Get a Quick Quote for a Eaton 5466AN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5466AN?
Enquire Now
FAQs
The 5466AN uses back-wire termination designed for #16-12 AWG conductors and supports 20A at 250V with a 6-20P receptacle configuration. It fits standard industrial panels and control enclosures, provided there is clearance for a 7.5 inch depth and a cord diameter within 0.33–0.66 inches. Torque targets of 14 lbf-in are recommended to ensure secure terminations.
Ideal for industrial power distribution and control panels, the 5466AN serves motors, equipment racks, and other heavy-duty equipment. Its two-pole, three-wire grounded design, back-wire termination, and 250V rating make it a robust solution for harsh manufacturing environments where reliability and ease of installation are critical.
The 5466AN is UL listed, NOM recognized, and aligned with Federal Specification Classification 6221 02, along with RoHS compliance. These certifications validate safety, material restrictions, and regulatory readiness for regulated industrial environments.
Durable nylon body and brass contacts resist wear and corrosion, while back-wire termination simplifies secure conductor connections. The plug’s 14 lbf-in torque rating ensures consistent clamping force, reducing loose-term connections that often cause downtime in control panels and machinery.
Regular inspections should verify that terminations remain tight (approx. 14 lbf-in torque), cords stay within the 0.33–0.66 inch range, and the nylon body shows no cracks or signs of wear. Replace any damaged components promptly to maintain safety, compliance, and dependable operation in industrial environments.
