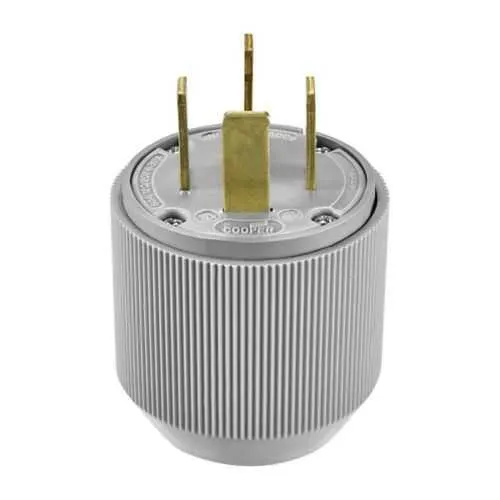

Eaton 5517N Plug - 60A, 120/208V, UL/NOM 6233
Part Number: 5517N
Quick Summary
The Eaton Arrow Hart extra heavy-duty auto grip plug provides rugged, reliable power connections for industrial equipment and control panels. When high-current connections loosen or back-wire terminals corrode in harsh environments, downtime and maintenance costs rise. UL listing, NOM compliance, and Federal Specification 6233 underline safety and compatibility with industrial standards. Designed for back-wire installations on four-pole, non-grounding configurations, it supports efficient installation in power distribution assemblies while delivering robust torque, corrosion resistance, and long-term performance for demanding environments.
Product Information
Extended Description
5517N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 60A, Industrial, 120/208V, Back wire, Gray, Brass, Thermoplastic, 18-60P, Four-pole, four-wire, non grounding, Screw, Thermoplastic, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
5517N
UPC
040893019994
Product Length/Depth
6.938 in
Product Height
3.375 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
UL NOM Federal Specification Classification 6233 01
Device type
Plug
Type
PLug
Amperage Rating
60A
Voltage rating
120/208 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
4
Number Of Poles
Four-pole
Style type
Power, Straight body
Material
Thermoplastic
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
18-60P
Torque rating
30-35 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Four-pole, four-wire, non grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section B
Eaton Specification Sheet - 5517N
The plug's extra heavy-duty auto grip mechanism delivers a secure grip that resists vibration, reducing connection failures and maintenance costs in demanding environments. This translates to faster commissioning and fewer field repairs on panel feeders and industrial equipment. The 60A, 120/208V rating supports high-load devices without oversized harnesses, improving efficiency and reducing the need for multiple parallel connections in motor control centers and manufacturing lines. Brass contact material and a thermoplastic body provide durability and corrosion resistance, enhancing conductivity and lifespan in dirty or humid plant settings used in control panels and power distribution enclosures. A torque rating of 30-35 lbf-in ensures proper termination with screw connections, while back-wire capability for #12-4 AWG simplifies field installs and minimizes rework during startup. The non-grounding four-pole, 18-60P configuration guarantees compatibility with standard 4-wire systems, ensuring regulatory compliance in factory environments. Gray thermoplastic construction offers visibility and ease of handling, while core-pack packaging supports organized stock and controlled distribution in large facilities.
Get a Quick Quote for a Eaton 5517N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5517N?
Enquire Now
FAQs
To install the 5517N, prepare #12-4 AWG conductors, loosen the back-wire terminals, insert conductors fully, and tighten to achieve a secure connection within the specified torque range of 30-35 lbf-inch. Verify correct polarity and ensure the four-pole configuration matches the 18-60P receptacle. This back-wire method simplifies field terminations and reduces installation time in control panels.
Yes. The 5517N is rated for 60A at 120/208V and features a four-pole, four-wire non-grounding design with back-wire capability, making it compatible with standard industrial power distribution and 18-60P NEMA configurations.
The 5517N carries UL and NOM certifications and aligns with Federal Specification 6233, Class 01, providing assurance of safety and industrial compatibility in demanding environments.
It is ideal for heavy machinery, motor control panels, and other industrial equipment requiring a robust 4-wire, 60A connection. Its back-wire capability and four-pole design support reliable power distribution in harsh manufacturing settings.
The auto grip mechanism reduces the risk of secondary looseness due to vibration, speeds up installations, and lowers rework rates during commissioning, delivering consistent, durable terminations in industrial environments.
