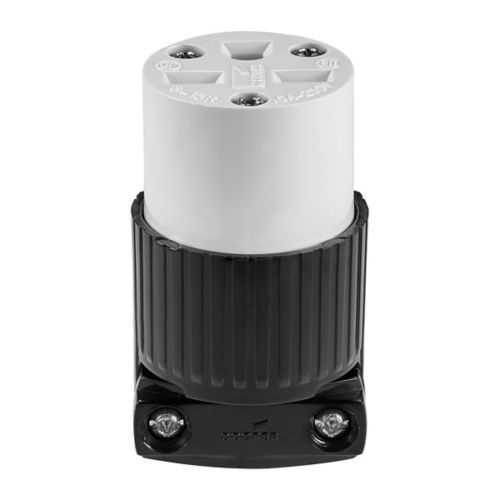

Eaton 5669 Connector - Severe Duty 6-15R UL 6221
Part Number: 5669
Quick Summary
Eaton 5669 Connector is a severe-duty straight blade connector designed for industrial wiring. It delivers robust performance in harsh environments where reliability matters most for control panels and machinery. Engineers often struggle with corrosion, loose terminations, and incompatible wire sizes during panel upgrades, which can cause downtime. This connector combines nickel-plated brass contacts, a corrosion-resistant nylon body, and a back-wire termination to address these challenges, while UL NOM Federal Specification Classification 6221 02 adds confidence in compliance. With a 15A, 250V rating and support for #18-12 AWG in a two-pole, three-wire configuration, it streamlines installation and reduces field service time. Core-pack packaging further simplifies stocking for procurement teams and OEM engineering programs.
Product Information
Extended Description
5669 Eaton: Eaton Arrow Hart severe duty straight blade connector,#18-12 AWG,15A,Industrial,250V,Back wire,Black and white,Nickel-plated brass,Corrosion Resistant,Nylon,6-15R,Two pole,three wire,grounding,Screw,0.38-1" in diameter,Nylon,Core pack
Product Name
Eaton Arrow Hart severe duty straight blade connector
Catalog Number
5669
UPC
032664392504
Product Length/Depth
6.5 in
Product Height
1.5 in
Product Width
3.5 in
Product Weight
0.165 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Connector
Type
Complex environment
Amperage Rating
15A
Voltage rating
250V
Contact material
Nickel-plated brass
Application
Industrial
Device grade
Severe duty
Wiring method
Back wire
Environmental conditions
Corrosive
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.38-1" in diameter
Material
Nylon
Packaging type
Core pack
Environmental resistance
Corrosion resistant
Color
Black White
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
6-15R
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Wiring Devices Buyer’s Guide
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 5669
Feature: Severe-duty straight blade design with nickel-plated brass contacts. Impact: Provides durable electrical continuity and excellent corrosion resistance in tough industrial settings, lowering maintenance frequency and replacement risk. Application: Suitable for rugged control panels, machine tools, and outdoor equipment where reliability is critical. Feature: Nylon body with back-wire termination and a cord range of 0.38-1 inches. Impact: Simplifies field terminations and provides secure screw connections, reducing installation time and rework. Application: Industrial power connections in harsh environments where space is tight. Feature: 15A at 250V, NEMA 6-15R compatibility; UL NOM 6221 02 certification. Impact: Ensures safe, code-compliant power distribution for equipment and panels. Application: Control circuits and machinery wiring in factories. Feature: Core-pack packaging and standard receptacle configuration (Two-pole, three-wire grounding). Impact: Faster stocking and consistent field replacements. Application: OEM panel assemblies and service spare parts for industrial customers. Feature: Corrosion-resistant nickel-plated brass and color options Black White. Impact: Longer service life in corrosive environments reduces maintenance. Application: Environments with moisture, chemicals, or wash-down requirements.
Get a Quick Quote for a Eaton 5669
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5669?
Enquire Now
FAQs
To install, strip the #18-12 AWG conductors to match the back-wire terminals, insert them into the rear slots, and tighten the securing screws to create a solid connection. Ensure the wiring matches the 6-15R configuration and verify the polarity and grounding are correctly established. This method provides a fast, secure termination in industrial panels.
The 5669 is rated for 15A at 250V and accommodates #18-12 AWG conductors. It is a two-pole, three-wire receptacle with grounding, designed for industrial applications and back-wire termination. Its robust ratings support reliable operation in demanding control and power distribution scenarios.
Yes, the 5669 is designed for a 6-15R receptacle. It uses a two-pole, three-wire grounding arrangement and is intended for industrial environments, including corrosive or harsh settings. The combination of nylon body and nickel-plated brass contacts provides reliable performance in challenging conditions.
The 5669 carries UL NOM certification and Federal Specification Classification 6221 02, validating compliance with safety and performance standards for industrial wiring devices. These certifications help ensure reliability, reduce compliance risk, and support procurement in regulated environments.
Expect longer service life due to corrosion-resistant nickel-plated brass contacts and a durable nylon body, which reduces maintenance intervals. The back-wire design speeds field terminations, lowering labor costs during installation, while core-pack packaging simplifies stocking, supporting lower lifecycle costs for OEMs and maintenance teams.
