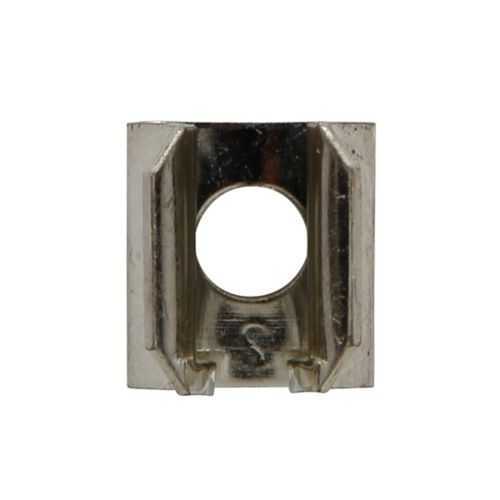

Eaton 5674-01 fuse clip - RoHS Compliant, 9/32–9/16 fuses
Part Number: 5674-01
Quick Summary
The Eaton Bussmann 5600 fuse clip securely holds 9/32, 13/32, and 9/16 inch fuses in protection assemblies. In many panel-mounted or compact power-distribution setups, misalignment and contact wear can lead to nuisance trips and reduced fuse life. This part is RoHS compliant per factory documentation; additional certifications such as CE, SIL, or IP ratings are available on request with official Eaton datasheets. Using this fuse clip with the Bussmann series supports reliable protection and fast replacement, while the compact form and BeCu silver finish help minimize resistance and heat buildup in dense installations. For designers and maintenance teams, this translates to fewer spare parts, faster changeouts, and improved uptime across critical lines.
Product Information
Extended Description
5674-01 Eaton: Eaton Bussmann series 5600 fuse clip, With end stop, Non-indicating, Beryllium copper, Silver finish, Used with 9/32", 13/32", and 9/16" diameter fuses
Product Name
Eaton Bussmann series 5600 fuse clip
Catalog Number
5674-01
UPC
051712739245
EAN
5027590252928
Product Length/Depth
0.38 in
Product Height
0.52 in
Product Width
0.356 in
Product Weight
0.4 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Material
Beryllium copper Silver finish
Fuse indicator
Non-indicating
Special features
With end stop
Used with
Used with 9/32", 13/32", and 9/16" diameter fuses
5674-01~FUSECLIP 9/32
5674-01~FUSECLIP 9/32
Bussmann series Fuseology
Eaton Specification Sheet - 5674-01
Feature: BeCu contact with a silver finish delivers durable electrical conductivity and corrosion resistance. Business Impact: lower contact resistance translates to stable voltage, reduced hotspots, and longer fuse life in high-load circuits. Application: ideal for Bussmann 5600 fuse clips in automotive and industrial fuse blocks, where tight installation tolerances matter. Feature: End-stop design ensures precise seating and prevents over-insertion. Business Impact: reduces mis-seating, reciprocal wear, and nuisance trips, boosting uptime. Application: valuable in compact panels and high-density electrical cabinets. Feature: Non-indicating construction with RoHS compliance and BeCu silver finish. Business Impact: simplifies maintenance workflows and regulatory compliance, reducing total cost of ownership. Application: used with 9/32", 13/32", and 9/16" diameter fuses in protection circuits. Feature: Small footprint (0.38 in length, 0.52 in height, 0.356 in width) and light 0.4 lb weight. Business Impact: enables efficient panel layout, faster assembly, and lower enclosure costs. Application: suitable for space-constrained fuse blocks in industrial and commercial deployments. Feature: Compatibility with Eaton/Bussmann 5600 series. Business Impact: minimizes replacement errors and ensures consistent performance across the protection network. Application: supports standardized fuse protection in multi-circuit panels and service cabinets. These features collectively enhance fuse seating reliability, reduce downtime, and improve overall power-system availability in complex electrical installations.
Get a Quick Quote for a Eaton 5674-01
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5674-01?
Enquire Now
FAQs
The 5674-01 fuse clip is designed to accommodate 9/32, 13/32, and 9/16 inch diameter fuses, aligning with common Bussmann 5600-series devices. It provides a secure seating mechanism suitable for automotive and industrial protection blocks. When selecting a clip, verify the fuse diameter and panel clearance to ensure reliable seating and easy replacement in dense enclosures.
Yes. The 5674-01 fuse clip is RoHS compliant per factory documentation, supporting environmental and regulatory requirements across manufacturing sites. For additional regulatory certifications such as CE, SIL, or IP ratings, refer to official Eaton datasheets or contact Eaton support to confirm current certifications and applicable installation notes for your region.
The end-stop design ensures precise seating and prevents over-insertion, reducing misalignment and contact wear. During installation, confirm fuse diameter matches the clip and that the clip sits squarely in the fuse block to avoid binding. The BeCu contact with a silver finish provides consistent contact pressure, enhancing reliability in high-density panels and reducing maintenance needs over time.
Product length is 0.38 inches, height 0.52 inches, width 0.356 inches, and the clip weighs about 0.4 pounds. These compact dimensions support tight panel layouts, enabling dense electrical cabinets without sacrificing fuse seating integrity. The BeCu construction and silver finish also contribute to good mating properties and durability in vibration-prone environments.
You can access Eaton’s catalogs and datasheets via the downloads section: 5674-01~FUSECLIP 9/32, 5674-01~FUSECLIP 9/32 (PDFs), Bussmann series Fuseology video, and Eaton Specification Sheet for 5674-01. These resources provide technical details, installation guidance, and performance data to support design and procurement workflows.
