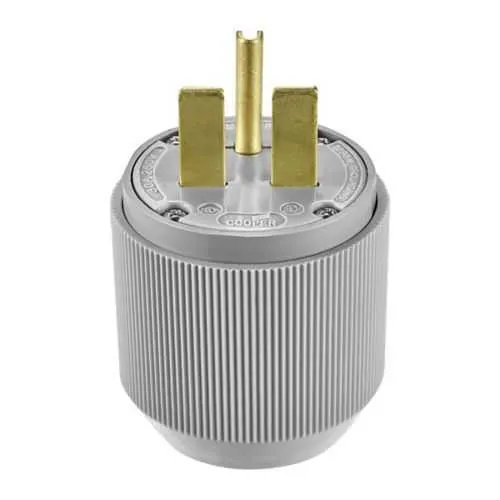

Eaton 5701N Plug - cULus Listed
Part Number: 5701N
Quick Summary
Eaton 5701N plug is an extra heavy-duty auto grip plug designed for industrial power connections. In demanding environments, installers struggle with secure terminations and back-wire compatibility that slow commissioning. This device carries cULus Listed, NOM and Federal Specification Classification 6221 02, signaling strong safety and regulatory alignment for plant networks. With a 30A, 250V rating and a 6-30P NEMA configuration, it supports common industrial loads while a nylon body and brass contacts resist wear. Designed for back-wire wiring of #12-4 AWG, this plug reduces field faults and simplifies maintenance, delivering reliable performance across manufacturing lines and heavy equipment installations.
Product Information
Extended Description
5701N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 30A, Industrial, 250V, Back wire, Gray, Brass, Nylon, 6-30P, Two-pole, three-wire, grounding, Screw, Nylon, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
5701N
UPC
040893020099
Product Length/Depth
6.938 in
Product Height
3.375 in
Product Width
3.61 in
Product Weight
0.805 lb
Certifications
cULus Listed NOM Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
30A
Voltage rating
250V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Power, Straight body
Material
Nylon
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
6-30P
Torque rating
20-24 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section A
Eaton Specification Sheet - 5701N
Feature: Extra heavy-duty auto grip design provides secure, vibration-resistant terminations. Business impact: Reduces loosening in high-vibration environments and minimizes downtime during commissioning. Application: Motor drives, conveyors, and heavy-duty equipment in manufacturing settings. Long-tail keywords: auto grip plug, vibration-resistant connector, industrial power plug.Feature: Back-wire wiring supports #12-4 AWG conductors. Business impact: Faster, cleaner terminations with fewer crimping errors and field faults. Application: Field-service and panel wiring for industrial controls. Long-tail keywords: back-wire terminations, #12-4 AWG, field wiring.Feature: 30A at 250V with two-pole, three-wire grounding configuration (6-30P). Business impact: Handles typical industrial loads with grounding for safety and compliance. Application: Power distribution to motors and industrial equipment. Long-tail keywords: 6-30P configuration, industrial receptacle, two-pole three-wire.Feature: Nylon body with brass contacts and screw connection. Business impact: Durable, corrosion-resistant components extend service life and reduce replacement costs. Application: Harsh manufacturing environments and frequent connection cycles. Long-tail keywords: nylon body, brass contacts, screw termination.Feature: Certifications and regulatory alignment (cULus Listed, NOM, Federal Spec 6221 02). Business impact: Simplifies procurement and ensures compliance for controlled environments and approved panels. Application: Regulatory-compliant installations in plants and facilities. Long-tail keywords: cULus Listed, NOM, Federal Specification 6221 02.
Get a Quick Quote for a Eaton 5701N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5701N?
Enquire Now
FAQs
The 5701N uses back-wire termination compatible with #12-4 AWG conductors. To install, strip the conductor to the manufacturer’s specified length, insert into the back-wire clamp, and snug the screw to the torque range of 20-24 lbf-in. This method provides a secure, reliable termination with reduced field wiring errors in industrial panels.
The 5701N is rated for 30A at 250V, with a 6-30P NEMA configuration. It supports two-pole, three-wire grounding circuitry and uses brass contact materials for reliable conductivity. The device is designed for industrial loads and is compatible with #12-4 AWG wiring under back-wire termination.
Yes. The 5701N features an extra heavy-duty nylon body and brass contacts, offering durability in vibration-prone plants. Its NEMA 6-30P configuration supports common industrial equipment connections, while the grounding design provides safety in control panels and harsh environments, reducing maintenance and downtime.
The 5701N carries cULus Listed, NOM, and Federal Specification Classification 6221 02 certifications. These indicate compliance with U.S. and Canadian electrical safety standards, environmental suitability, and regulatory requirements, which simplifies procurement, reduces risk in audits, and ensures compatibility with widely adopted industrial codes.
The plug’s durable nylon body, brass contacts, and robust torque rating of 20-24 lbf-in minimize wear and terminal loosening, lowering maintenance cycles. Back-wire termination speeds field wiring and reduces commissioning time, contributing to lower labor costs and improved uptime over the device’s service life.
