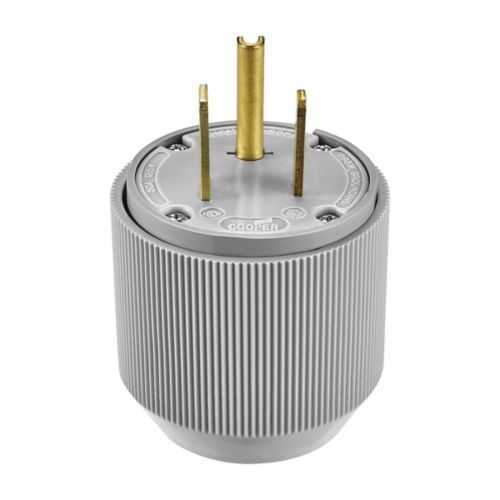

Eaton 5712N Plug - cULus Listed, 50A/125V Auto-Grip
Part Number: 5712N
Quick Summary
5712N plug from Eaton provides heavy-duty power connections for industrial equipment. In harsh environments, wiring fatigue and loose terminations drive costly downtime, which this design minimizes. Certified cULus Listed, NOM, and Federal Specification Classification 6221 02 ensure compliance and traceability across North American sites. Back-wire capability and a nylon body with brass contacts deliver secure, reusable connections in demanding installations. Designed for industrial distribution, it supports safe, scalable power delivery and streamlined procurement.
Product Information
Extended Description
5712N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 50A, Industrial, 125V, Back wire, Gray, Brass, Nylon, 5-50P, Two-pole, three-wire, grounding, Screw, Nylon, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
5712N
UPC
040893020358
Product Length/Depth
6.938 in
Product Height
3.375 in
Product Width
3.61 in
Product Weight
1.05 lb
Certifications
cULus Listed NOM Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
50 A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Power, Straight body
Material
Nylon
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
5-50P
Torque rating
30-35 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section A
Eaton Specification Sheet - 5712N
Feature: 50 A, 125 V rating; Business Impact: handles high-load equipment while reducing the need for multiple devices and parallel circuits; Application: motors, welders, and heavy-duty feeders in manufacturing. Feature: Back-wire with screw termination; Business Impact: faster, error-free field terminations that stay tight over time; Application: control panels and machine connections. Feature: NEMA configuration 5-50P; Business Impact: ensures compatibility with common industrial plugs and receptacles, reducing inventory variety; Application: power distribution in power shops and assembly lines. Feature: Nylon body with brass contacts; Business Impact: durable, corrosion-resistant performance and long service life; Application: harsh industrial environments with frequent plugging and unplugging. Feature: Torque rating 30-35 lbf-in; Business Impact: predictable installation without over-tightening, protecting conductors; Application: maintenance procedures and field replacements. Feature: Certifications cULus Listed, NOM, Federal Specification 6221 02; Business Impact: regulatory compliance and easier audits; Application: NEC/UL compliance for plant-wide electrical installations. Feature: Core pack packaging; Business Impact: reduced waste and efficient stock management; Application: procurement and warehouse operations.
Get a Quick Quote for a Eaton 5712N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 5712N?
Enquire Now
FAQs
For back-wire terminations, ensure conductors are clean and properly stripped to the recommended length, insert into the back-wire clamps, and torque screws to 30-35 in-lbf to achieve a secure clamp without damaging conductors. This method reduces field errors and speeds up installation in control panels and enclosures.
The 5712N is rated for 50 A at 125 V and uses brass contact material with a nylon body, providing robust current handling, resistance to wear, and long-term reliability for high-load devices such as motors and machinery feeding in manufacturing environments.
Yes. It uses a two-pole, three-wire grounding configuration with NEMA 5-50P compatibility and back-wire screw terminations, facilitating integration with common industrial power distribution layouts and minimizing panel adaptation risk.
The plug is cULus Listed, NOM certified, and aligned with Federal Specification Classification 6221 02. These certifications support NEC/UL compliance, enable broader product acceptance, and simplify regulatory audits across North American facilities.
The auto-grip design and secure screw back-wire terminations reduce loose connections and maintenance calls, improving uptime. Its durable nylon/brass construction resists wear, lowering replacement frequency and contributing to lower total cost of ownership over the equipment lifecycle.
