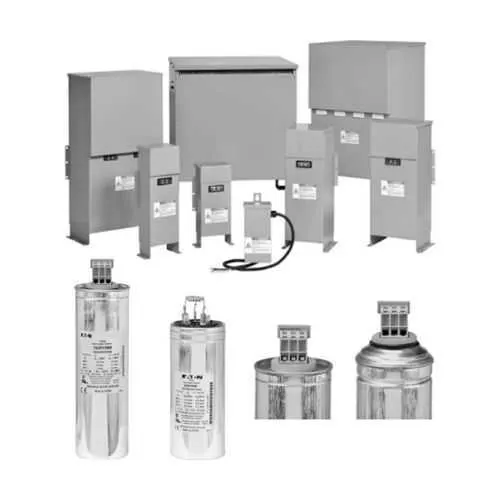

Eaton LV Unipak capacitor bank 600413MVF3 - 4160V
Part Number: 600413MVF3
Quick Summary
Eaton LV Unipak capacitor bank delivers fixed-capacitor power factor correction for industrial power systems. Users often wrestle with weatherproofing, maintenance access, and reliable fault isolation in outdoor installations. The unit uses NEMA 1, NEMA 3R, and NEMA 12 enclosures to enable indoor and outdoor use, with gasketed seals, a viewing window, and flexible top- and side-entry options. Built around the UNIVAR XV type with three-fuse protection and a 600 kVAR rating, it supports efficient, safe operation while meeting industry standards. This combination helps plants reduce energy costs, improve voltage stability, and simplify maintenance, delivering scalable, long-term value for energy-intensive processes.
Product Information
Extended Description
600413MVF3 Eaton: Eaton LV Unipak capacitor bank, 4160V, Three-phase, 600 kVAR, Three-fuse, NEMA 1, 3R, and 12, 14 ga. steel finished with durable baked-on enamel, Viewing window, top and side entry, removable front cover
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
600413MVF3
UPC
786685260617
Product Length/Depth
20.42 in
Product Height
41.94 in
Product Width
20.26 in
Product Weight
238 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Catalog Notes
The wiring enclosure is gasketed to create a weatherproof, dustproof seal. Universal mounting flanges are provided for floor installation. The elimation of knockouts permits indoor/outdoor use.
Type
UNIVAR XV
Fuse type
Three-fuse
Options
Viewing window, top and side entry, removable front cover
Phase
Three-phase
Product Category
Fixed Capacitor Banks
Voltage rating
4160 V
Enclosure
NEMA 1, NEMA 3R, NEMA, NEMA 12
Enclosure material
14 gauge steel finished with durable baked-on enamel
Rating
600 kVAR
UNIVAR XV fixed-capacitor design provides precise reactive power control, reducing kVAR demand and easing utility penalties. The business impact is measurable energy efficiency and lower operating costs for motors and drives in manufacturing, processing, and distribution facilities. In practice, this configuration supports reliable voltage stability and smoother operation of switchgear, enabling planners to optimize capacitor bank placement for specific load profiles. Top- and side-entry options, along with a viewing window, reduce field downtime by enabling quick status checks and faster fault isolation. Removable front covers simplify routine inspection and maintenance, minimizing service time and exposure to energized components. The enclosure’s weatherproof, gasketed design, and NEMA ratings enable indoor and outdoor installations, improving retrofit feasibility and reducing installation risk. 14 gauge steel with durable baked-on enamel provides corrosion resistance in harsh environments, while universal mounting flanges support stable floor installation and flexible layout. With a 600 kVAR rating and three-fuse protection, operators gain predictable protection and easier maintenance planning. The warranty, Eaton’s policy 25-000, reinforces long-term asset reliability and service support for energy-intensive facilities.
Get a Quick Quote for a Eaton 600413MVF3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 600413MVF3?
Enquire Now
FAQs
The unit supports flexible installation with top- and side-entry options and a gasketed wiring enclosure for indoor or outdoor use. Ensure adequate clearances for servicing, verify panel alignment with floor mounting flanges, and confirm that the enclosure rating (NEMA 1/3R/12) matches the site conditions. Plan for access to the removable front cover for routine maintenance and inspections.
Key specs include 4160 V three-phase operation, a 600 kVAR rating, UNIVAR XV configuration, and three-fuse protection. The catalog notes indicate a viewing window option and top/side entry, with a 20.42 in length, 41.94 in height, and 20.26 in width footprint, designed to integrate with typical LV switchgear.
Yes. The enclosure is gasketed for weatherproof and dustproof performance, with NEMA ratings enabling indoor/outdoor applications. Knockouts are eliminated to maintain a sealed environment, while the viewing window and front cover facilitate safe outdoor servicing and status checks without exposing energised components.
Eaton provides a warranty per policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This warranty supports field reliability, covers manufacturing defects, and aligns with standard industry expectations for fixed capacitor banks in industrial settings.
By delivering fixed, three-phase power factor correction at 4160 V with a 600 kVAR rating, the unit reduces reactive power draw, lowers utility penalties, and improves motor efficiency. The combination of reliable serviceability, durable enclosure design, and scalable PF correction supports faster payback in energy-intensive applications such as manufacturing, processing, and heavy-duty pumping systems.
