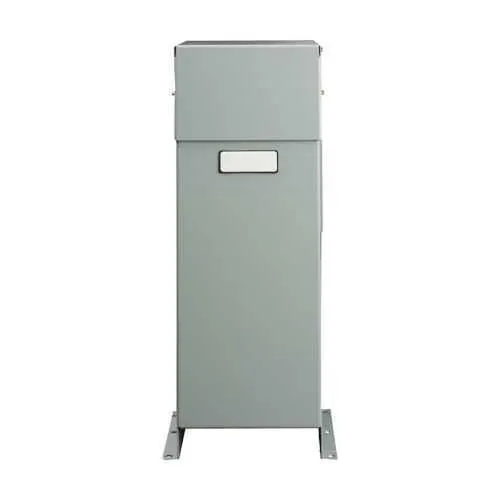

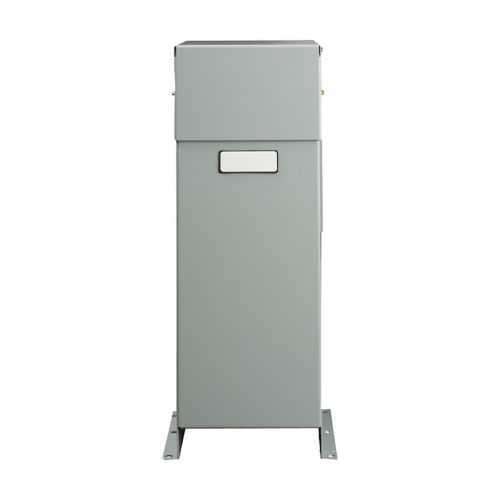

Eaton 60232HMURF LV Unipak capacitor bank - CSA/UL
Part Number: 60232HMURF
Quick Summary
Eaton LV Unipak capacitor bank is a reliable three-phase reactive power solution for 240V industrial power systems. In demanding facilities, poor power factor and voltage instability can erode efficiency and uptime. This unit carries CSA Certified and UL Listed certifications, ensuring compliance in critical installations and regulated environments. Its compact footprint and fixed-filter design enable straightforward installation into existing switchgear or panel boards, reducing retrofit time. By delivering consistent power factor correction and harmonic mitigation, this capacitor bank translates into lower energy costs, improved equipment performance, and predictable operation across manufacturing floors.
Product Information
Extended Description
60232HMURF Eaton: Eaton LV Unipak capacitor bank, Fixed Filter, 60 kvar 240V 3ph
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
60232HMURF
UPC
786685139616
Product Length/Depth
19.3 in
Product Height
36 in
Product Width
9.5 in
Product Weight
110.8 lb
Certifications
CSA Certified UL Listed
Phase
Three-phase
Voltage rating
240V
kVA rating
60 kVA
Fixed-filter design minimizes harmonic distortion and resonance in the supply. This improves reliability by reducing overheating and voltage ripple, which translates to longer life for transformers and switchgear and lower maintenance costs. It is especially beneficial in facilities with multiple VFDs and switching devices, enabling smoother operation of drives and pumps and reducing downtime. The 60 kVA rating provides adequate corrective capacity for mid-size loads, helping facilities reach target power factors more consistently and lowering penalty risk on utilities. Three-phase 240V operation matches common industrial distribution, allowing straightforward integration into standard panel boards and switchgear with minimal cabling complexity. The compact footprint, with dimensions around 19.3 in L, 9.5 in W, and 36 in H, simplifies installation in space-constrained electrical rooms and reduces enclosure costs. CSA Certified UL Listed certifications offer procurement confidence and regulatory compliance, supporting audits and safety requirements across multiple jurisdictions. Weighing about 110.8 lb, the unit strikes a balance between robust reliability and manageable handling during installation, enabling safer, faster field operations and predictable lifecycle planning.
Get a Quick Quote for a Eaton 60232HMURF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60232HMURF?
Enquire Now
FAQs
Installation starts with de-energizing the panel and confirming the electrical room has space for a 19.3 in deep, 9.5 in wide, 36 in tall unit weighing approximately 110.8 lb. Mount the bank in a suitable enclosure or panel board, connect to the 240V three-phase bus with properly rated lugs, and follow the Eaton datasheet for terminal torque and wiring schemes. Ensure lockout/tagout and verify clearances for cooling and service access. The fixed-filter design simplifies integration by reducing external harmonic suppression components. Always refer to the Eaton 60232HMURF specification sheet for exact wiring diagrams and torque values.
Expect improved power factor and reduced reactive power demand, which lowers utility penalties and can improve voltage regulation under load. The fixed-filter design helps mitigate harmonic disturbances from drives and motor loads, contributing to smoother operation of upstream transformers and switchgear. In practical terms, facilities with medium-sized motor drives and pumps can see more stable voltage profiles, reduced heat in electrical equipment, and measurable energy savings when the bank is correctly sized for the load.
Yes. The unit ships as CSA Certified and UL Listed, aligning with common electrical codes and safety standards for industrial installations. These certifications support compliance during audits and in environments with strict procurement requirements. When selecting, confirm regional code requirements and ensure the capacitor bank is compatible with your panel or switchgear rating and enclosure size for safe operation.
The capacitor bank measures 19.3 inches in length (depth), 9.5 inches in width, and 36 inches in height, with a weight of about 110.8 pounds. Plan for sufficient mounting space, robust support within the cabinet, and clearance for serviceable connections and cooling. Accurate fit helps minimize installation time and avoids rework in constrained electrical rooms.
Maintenance is typically limited to periodic connection checks, visual inspection of the bank and enclosure, and verification that cooling paths remain unobstructed. The fixed-filter design reduces ongoing harmonic management costs and supports energy efficiency, contributing to a favorable ROI through energy savings and improved equipment reliability. Leverage the CSA UL certifications and Eaton datasheet as references for maintenance intervals and lifecycle expectations.
