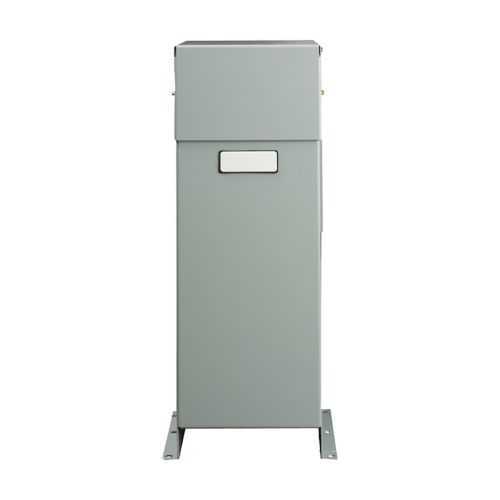

Eaton 60232HMURFY LV Unipak capacitor bank - Detuned 60 kVAR
Part Number: 60232HMURFY
Quick Summary
60232HMURFY Eaton LV Unipak capacitor bank is designed to mitigate harmonics in low-voltage industrial power systems. Harmonics can drive overheating, shorten equipment life, and cause unnecessary tripping and energy losses, a frequent pain point for plant engineers. It carries UL 508A, CSA Std. C22.2 No. 190, IEEE Std. 18, and UL 810 certifications to ensure safety and performance across control panels and feeders. With 60 kVAR at 240V, three-phase 60 Hz operation, and 4.2 H tuning, this detuned Unipak bank delivers reliable power quality while simplifying installation and ongoing maintenance for industrial sites. Its modular design supports retrofit projects, reducing downtime during upgrades.
Product Information
Extended Description
60232HMURFY Eaton: Eaton LV Unipak capacitor bank, Fixed UNIPAK harmonic filter, Detuned, 60 kVAR, 240V, 144A, Three-phase, 60 Hz, 4.2 Harmonic tuning
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
60232HMURFY
UPC
786685878492
Product Length/Depth
33 in
Product Height
36 in
Product Width
21 in
Product Weight
280 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the product or eighteen (18) months from the date of shipment of the product, whichever occurs first. Plus 5 years on capacitor cells.
Certifications
UL 508A CSA Std. C22.2 No. 190 IEEE Std. 18 UL 810
Type
Detuned
Amperage Rating
144A
Frequency rating
60 Hz
Phase
Three-phase
Tuning
4.2H
Voltage rating
240V
kVA rating
60 KVR
Eaton Specification Sheet - 60232HMURFY
Selling Policy 25-000 - Distribution and Control Products and Services
Detuned UNIPAK construction targets specific harmonic profiles, delivering a consistent current waveform that minimizes peak distortions and reduces stray reactive energy. This translates into lower transformer and busbar losses, extended capacitor life, and fewer unplanned outages caused by overheating. In practice, manufacturing floors and data centers benefit from stable voltage profiles, smoother motor operation, and more reliable power delivery. The 60 kVAR rating at 240V, combined with three-phase 60 Hz operation, provides ample mitigation without oversized equipment. The 4.2 H tuning helps tailor reactance to the site, improving PF correction without triggering resonance issues. Operators gain predictable performance across load variations, supporting compliance with voltage disturbance limits and metering accuracy. This predictability also simplifies seasonal adjustments and reduces the need for frequent recalibration. Certifications and safety validations—UL 508A, CSA Std. C22.2 No. 190, IEEE Std. 18, UL 810—ease engineering approvals and supplier risk, while the unit’s robust dimensions and weight enable reliable field installation. Warranty and service options reflect Eaton’s commitment to lifecycle reliability and reduced maintenance costs, with performance-supported service intervals. Physical footprint, compatibility with standard LV enclosures, and clear electrical ratings make 60232HMURFY a practical choice for new builds and retrofit projects alike.
Get a Quick Quote for a Eaton 60232HMURFY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60232HMURFY?
Enquire Now
FAQs
60232HMURFY is designed for three-phase 240V systems and aligns with standard Eaton LV enclosures used in industrial facilities. It fits alongside common switchgear and control panels, with dimensions 33 in L x 36 in H x 21 in W and a weight of 280 lb, facilitating straightforward siting. Ensure mounting clearance, proper grounding, and verify enclosure ratings match installation conditions.
Key specifications include a 60 kVAR rating, 240V voltage rating, 144A current rating, three-phase configuration, 60 Hz frequency, and 4.2 H tuning. This combination provides robust harmonic filtering with predictable impedance behavior, supporting improved PF, reduced distortion, and safer operation of downstream equipment under variable loads.
The unit carries UL 508A, CSA Std. C22.2 No. 190, IEEE Std. 18, and UL 810 certifications. These approvals validate construction quality, electrical safety, and enclosure performance, simplifying engineering approvals, supplier qualification, and compliance audits in industrial environments.
The warranty covers one year from installation or eighteen months from shipment, whichever occurs first, with an additional five-year warranty on capacitor cells. This structure reinforces reliability and offers protection against early component aging, supporting a lower total cost of ownership over the system lifecycle.
Detuned filtering targets specific harmonic bands, reducing current distortion and improving voltage waveforms. Benefits include lower transformer losses, longer capacitor life, fewer outages, improved motor and drive performance, and easier compliance with power quality standards—whether in manufacturing, data centers, or facilities with non-linear loads.
