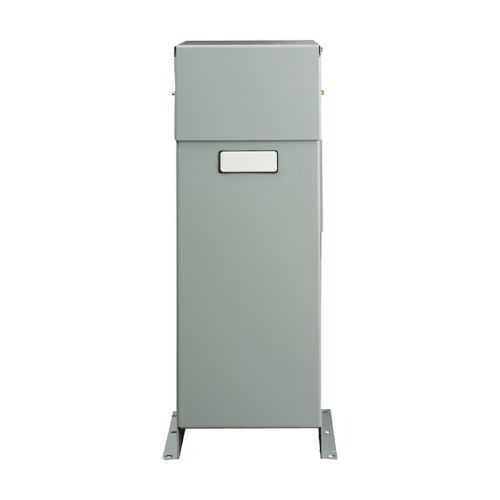

Eaton 6023HURF LV Unipak Capacitor Bank - CSA UL Listed
Part Number: 6023HURF
Quick Summary
Eaton 6023HURF LV Unipak capacitor bank provides fixed capacitive support for three-phase power factor correction in industrial electrical systems. Engineers often struggle with inaccurate kVAR estimates, voltage mismatches, and downtime from noisy protection schemes. CSA Certified and UL Listed, with a NEMA 1 indoor enclosure, support safe, compliant installation. This solution also delivers predictable kVAR scaling for 240V installations and reduces operating costs through efficient reactive power management.
Product Information
Extended Description
6023HURF Eaton: Eaton LV Unipak capacitor bank, UNIPAK with Heavy-Duty Cells, LV Fixed Capacitor Systems, 144A, 240V, Three-phase, 60 kVAR, Protected, Neon red blown-fuse indicating lights, Three slottedblade-type fuses, NEMA 1, C2 Frame
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
6023HURF
UPC
786689319977
Product Length/Depth
9.5 in
Product Height
36 in
Product Width
19.3 in
Product Weight
52.8 lb
Certifications
CSA Certified UL Listed
Catalog Notes
Multiply the 240V kVAR rating by 0.75 to calculate the kVAR value at 208V
Type
LV Fixed Capacitor
Amperage Rating
144A
Phase
Three-phase
Voltage rating
240V
Enclosure
NEMA 1
kVA rating
60 kVA
Fixed LV Unipak capacitor bank design delivers reliable power factor correction with predictable kVAR at 240V, reducing reactive power and lowering energy costs for large motor loads. This translates to lower utility penalties and improved plant efficiency in manufacturing environments. Applications include panel boards and LV switchgear in three-phase 240V systems.Protection and visibility features include neon red blown-fuse indicating lights and three slotted-blade fuses, delivering fast fault visibility and safer service, minimizing unplanned downtime. The NEMA 1 enclosure enables indoor installation with straightforward wiring and maintenance access in factories and control rooms.Certifications and compliance are supported by CSA Certified UL Listed ratings, providing procurement confidence and regulatory alignment for regulated facilities. The heavy-duty cells and robust construction are designed for demanding industrial use, ensuring long-term reliability in harsh environments while maintaining electrical safety standards.The catalog notes clarify voltage planning, indicating how to adjust kVAR from 240V to 208V using the 0.75 factor, which simplifies system design and improves project accuracy. This capacity aligns with power factor correction needs for large equipment fleets and assists engineers in meeting energy efficiency targets.Installation compatibility and ROI considerations are enhanced by features such as a compact footprint, clear fault indicators, and standard 240V three-phase operation, enabling faster deployments and predictable return on investment in facilities with significant reactive power demand.
Get a Quick Quote for a Eaton 6023HURF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6023HURF?
Enquire Now
FAQs
The 6023HURF is designed for indoor LV distribution panels, mounting in standard 600-V class switchgear. Its NEMA 1 enclosure fits inside cabinet spaces alongside other capacitor banks, with three slotted-blade fuses and neon indicator lights providing clear fault status. Practical compatibility with common panel boards minimizes rewiring and simplifies upgrades.
Key specs: 60 kVA, 144 A, 240V, three-phase, LV fixed capacitor. To estimate kVAR at 208V, multiply the 240V kVAR by 0.75 per catalog notes. This ensures correct reactive support in equipment fed from 208V systems and aids accurate capacitor sizing for facility power factor projects.
Yes. The unit uses a NEMA 1 enclosure designed for indoor installations such as machine rooms and switchgear rooms. It includes protective features like neon fuse indicators and protected three-blade fuses, reducing exposure to dust and direct weather while providing straightforward maintenance access.
The 6023HURF is CSA Certified and UL Listed, aligning with common industrial procurement standards. These certifications simplify supplier qualification, ensure safety compliance, and support qualification documentation for regulatory audits and electrical installations.
Neon red blown-fuse indicating lights enable quick fault identification, reducing mean time to repair. The three slotted-blade fuses offer fast protection and predictable replacement cycles, helping maintenance teams plan outages during scheduled downtimes. Overall, these features support improved reliability and shorter downtime, contributing to favorable ROI in facilities with high motor loads.
