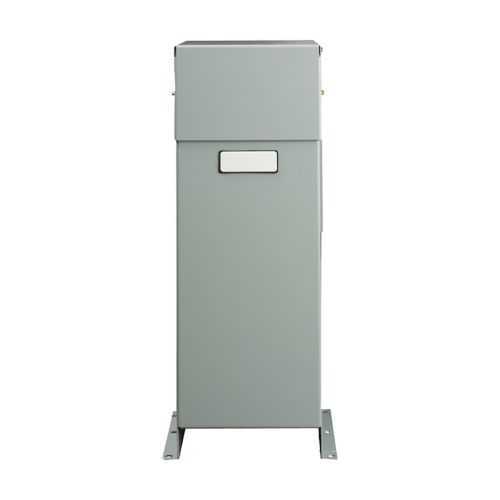

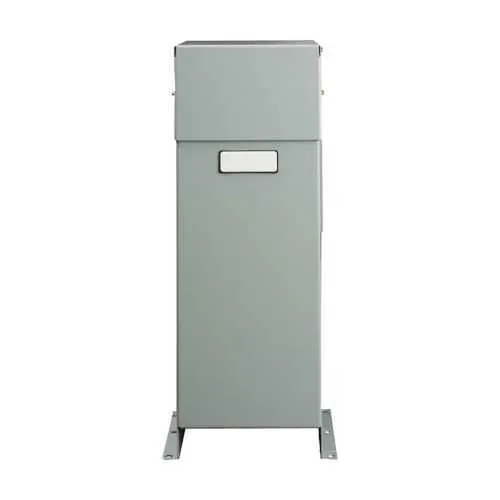

Eaton 60432HMURFY LV Unipak capacitor bank - UL 810/UL 508A
Part Number: 60432HMURFY
Quick Summary
The Eaton LV Unipak capacitor bank is designed to improve power quality in electrical systems used across manufacturing, processing, and data-center environments. Harmonic distortion and reactive power waste can drive up energy costs and shorten equipment life, making reliable filters essential. This unit uses a detuned filter tuned to 4.2 H for 60 Hz, with a 60 kVAR rating at 480 V, and is UL 810, CSA, IEEE 18, UL 508A certified. Its modular size and clear installation requirements help mechanical and electrical teams plan space, wiring, and maintenance without surprises. In short, it supports uptime, energy efficiency, and compliance while offering straightforward service and a credible warranty.
Product Information
Extended Description
60432HMURFY Eaton: Eaton LV Unipak capacitor bank, Fixed UNIPAK harmonic filter, Detuned, 60 kVAR, 480V, 72A, Three-phase, 60 Hz, 4.2 Harmonic tuning
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
60432HMURFY
UPC
786685878584
Product Length/Depth
40 in
Product Height
42 in
Product Width
48 in
Product Weight
260 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the product or eighteen (18) months from the date of shipment of the product, whichever occurs first. Plus 5 years on capacitor cells.
Certifications
UL 810 CSA Std. C22.2 No. 190 IEEE Std. 18 UL 508A
Type
Detuned
Amperage Rating
72A
Frequency rating
60 Hz
Phase
Three-phase
Tuning
4.2H
Voltage rating
480 V
kVA rating
60 KVR
Eaton Specification Sheet - 60432HMURFY
Selling Policy 25-000 - Distribution and Control Products and Services
Detuned harmonic filtering is at the heart of this capacitor bank, delivering targeted reactive power compensation that reduces harmonic currents and voltage distortion on feeders serving motors and drives. The 4.2 H tuning at 60 Hz shifts resonance away from dominant harmonics, stabilizing voltages and allowing downstream equipment to operate more predictably under varying load. This approach is particularly advantageous in facilities with high motor starting currents, mixed load profiles, and variable process demands, where unmitigated harmonics can drive losses and shorten component life. With a 60 kVAR rating and a 72 A amperage capacity in a 480 V three-phase system, the unit delivers meaningful reactive power compensation without oversizing the hardware. The resulting improvement in power factor reduces energy charges, lowers transformer and switchgear heating, and can extend the life of cable insulation. The fixed UNIPAK design provides consistent performance across installations and simplifies procurement, installation, and long-term maintenance planning. Certifications play a critical role in project approval and compliance, and this model carries UL 810 and UL 508A safety certifications, CSA Std. C22.2 No. 190, and IEEE Std. 18. These credentials support safe panel integration, equipment compatibility, and regulatory alignment across North American facilities. The warranty structure—one year from installation plus five years on capacitor cells—offers asset protection and predictable replacement cycles for maintenance budgets. Physical footprint and installation logistics are straightforward: dimensions of 40 in L, 42 in H, 48 in W and an approximate 260 lb weight enable planning around existing enclosures and room layouts. The unit is designed for 480 V systems and three-phase mains, which harmonizes with typical Eaton switchgear, filters, and bus structures. Its compatibility with Eaton products helps streamline engineering work, vendor handoffs, and service support throughout the asset lifecycle. Field technicians can perform testing without bespoke fixtures, and this consistent platform supports shift-based operations with minimal disruption.
Get a Quick Quote for a Eaton 60432HMURFY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60432HMURFY?
Enquire Now
FAQs
For proper installation, plan sufficient space around the unit (40 in L, 42 in H, 48 in W) and support a 260 lb weight. Connect to a 480 V three-phase supply with 72 A rating and ensure suitable bus connections and protective enclosures. Maintain required clearances for wiring access and follow the product’s documented mounting and wiring diagrams. Field tests and verification should follow standard commissioning procedures.
Detuned filtering shifts the system’s resonant point away from common harmonics, reducing current distortion and voltage fluctuation. The 4.2 H tuning at 60 Hz paired with a 60 kVAR rating delivers targeted reactive power compensation, improving power factor and lowering losses. This approach minimizes thermal stress on feeders and reduces nuisance trips in sensitive equipment, contributing to steadier operation during peak demand and variable loads.
UL 810 and UL 508A safety certifications assure electrical safety and panel integration compatibility, while CSA Std. C22.2 No. 190 confirms regional compliance. IEEE Std. 18 covers capacitor safety in utility and industrial environments. Collectively, these certifications simplify procurement, support installation with confidence, and help meet industrial and electrical codes across North America, reducing project risk and accelerating approvals.
Reactive power compensation at 480 V reduces system kVAR demand, improving power factor and lowering energy charges for motor-heavy loads. The unit’s detuned design reduces harmonic losses and voltage distortion, supporting longer equipment life. The warranty structure—one year from installation plus five years on capacitor cells—offers asset protection and predictable replacement cycles for maintenance budgets, improving total cost of ownership over the system lifecycle.
Yes. The 60432HMURFY is designed for three-phase, 480 V systems and aligns with Eaton Unipak line hardware for straightforward integration. Its standard connectors and mounting footprint support plug-and-play installation alongside Eaton switchgear and filter assemblies. Check the installation guidelines and ensure compatibility with your existing panel schedule and protection schemes to maintain a cohesive harmonic management strategy.
