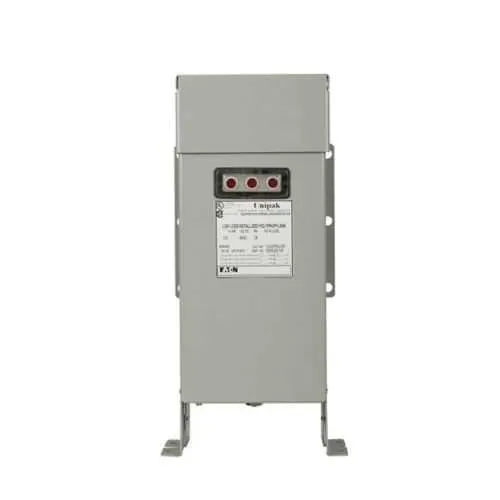

Eaton 6043HURF LV Unipak capacitor bank - CSA Certified UL Listed
Part Number: 6043HURF
Quick Summary
Engineered as an Eaton LV Unipak capacitor bank, it provides reactive power support for three-phase low-voltage systems. Many plants struggle with lagging power factor, voltage sags, and nuisance tripping as motors ramp up, driving energy waste. CSA Certified and UL Listed ensure safety and regulatory compliance, while the rugged NEMA 12 enclosure protects the bank in harsh industrial spaces. For procurement teams, the combination of a 60 kVAR rating and a 72 A current rating translates to meaningful energy savings and improved capacitor life. This design also leverages a heavy-duty cell architecture to reduce maintenance, making it a dependable choice for ongoing facility reliability.
Product Information
Extended Description
6043HURF Eaton: Eaton LV Unipak capacitor bank, UNIPAK with Heavy-Duty Cells, Low Voltage Fixed Capacitor Systems, 72A, 480V, Three-phase, 60 kVAR, NEMA 12, 14 ga. steel finished with durable powder coat finish, C1 Frame
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
6043HURF
UPC
782116079988
Product Length/Depth
10.6 in
Product Height
26.3 in
Product Width
12.1 in
Product Weight
52.8 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
Multiply the 240V kVAR rating by 0.75 to calculate the kVAR value at 208V.
Type
UNIPAK with Heavy-Duty Cells
Amperage Rating
72A
Phase
Three-phase
Product Category
Low Voltage Fixed Capacitor Systems
Voltage rating
480 V
Enclosure
NEMA 12
Enclosure material
14 gauge steel finished with durable powder coat finish
Frame size
C1
Rating
60 kVAR
Eaton Specification Sheet - 6043HURF
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: UNIPAK with Heavy-Duty Cells → Business Impact: Longer service life and reduced maintenance costs due to rugged construction → Application: Industrial facilities with high-duty cycling motors. Feature: 72 A Amperage Rating → Business Impact: Accurate sizing reduces oversizing, lowers energy waste, and improves system stability → Application: Motor drives, conveyors, and pumps in manufacturing. Feature: Three-phase 480 V System → Business Impact: Compatible with common plant distributions, simplifying retrofit and upgrades → Application: New builds and facility upgrades utilizing low-voltage fixed capacitor systems. Feature: NEMA 12 Enclosure with 14-gauge steel → Business Impact: Protected operation in dusty or indoor industrial environments, reducing exposure risk → Application: Factory floors, assembly lines, and processing plants. Feature: 60 kVAR Rating → Business Impact: Effective reactive power correction improves power factor and reduces utility penalties → Application: Peak-shaving and motor load balancing in large-scale equipment. Feature: Catalog Notes for 208 V → Business Impact: Clear guidance for voltage conversions minimizes estimation errors → Application: Projects where supply voltages vary or require 208 V adjustments. Feature: Certifications and Warranty → Business Impact: Compliance assurance and risk mitigation for procurement and maintenance planning → Application: Compliance-driven sourcing and long-term service planning.
Get a Quick Quote for a Eaton 6043HURF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6043HURF?
Enquire Now
FAQs
Yes. The 6043HURF is a three-phase, 480 V low-voltage fixed capacitor bank designed for reactive power correction. It aligns with typical plant distributions and can be integrated into existing motor and drive configurations. Ensure correct connection to the three-phase bus, adhere to Eaton installation guidelines, and verify clearance for the 26.3 inch height and 12.1 inch width.
The unit provides 60 kVAR at its 480 V rating with a 72 A amperage. For 208 V operation, use the catalog note: multiply the 240 V kVAR rating by 0.75 to estimate the kVAR. This helps sizing and planning for applications where voltage taps or transformer configurations yield different service voltages.
The 6043HURF uses a NEMA 12 enclosure and is built with 14-gauge steel finished with a durable powder coat. This combination delivers dust and particulate protection suitable for indoor industrial environments, helping minimize corrosion and physical damage while supporting long service life in manufacturing floors and warehouses.
This product is CSA Certified and UL Listed, providing recognized safety and performance validation for regulated environments. Procurement and facilities teams can rely on these certifications to meet internal compliance standards and to facilitate inspections, audits, and warranty claims with confidence.
The Eaton warranty policy 25-000 offers one year from installation or eighteen months from shipment, whichever occurs first. Plan for preventive maintenance and confirmer date-stamped installation records. This coverage supports defect-related service needs and reduces risk as part of total cost of ownership for low-voltage capacitor banks in continuous-operation facilities.
