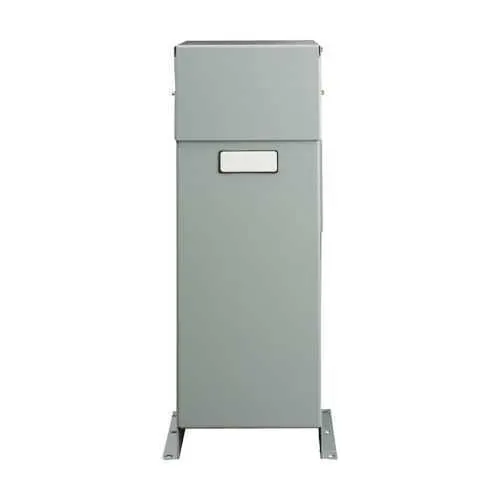

Eaton 60632HMURFY LV Unipak capacitor bank - Detuned
Part Number: 60632HMURFY
Quick Summary
Eaton 60632HMURFY LV Unipak capacitor bank is a detuned harmonic filter designed for three-phase 600 V power systems. Many facilities struggle with harmonic distortion and overheating in motor drives, which drives inefficiency and premature equipment wear. This unit carries UL 810, IEEE Std. 18, UL 508A, and CSA Std. C22.2 No. 190 certifications, ensuring safety and reliability in demanding industrial environments. In practice, it delivers power quality improvements and regulatory compliance while integrating with Eaton's LV Unipak family for streamlined installation and service, supporting ongoing reliability and lower total cost of ownership.
Product Information
Extended Description
60632HMURFY Eaton: Eaton LV Unipak capacitor bank, Fixed UNIPAK harmonic filter, Detuned, 60 kVAR, 600V, 59A, Three-phase, 60 Hz, 4.2 Harmonic tuning
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
60632HMURFY
UPC
786685878690
Product Length/Depth
32 in
Product Height
27 in
Product Width
21 in
Product Weight
220 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the product or eighteen (18) months from the date of shipment of the product, whichever occurs first. Plus 5 years on capacitor cells.
Certifications
UL 810 IEEE Std. 18 UL 508A CSA Std. C22.2 No. 190
Type
Detuned
Amperage Rating
59A
Frequency rating
60 Hz
Phase
Three-phase
Tuning
4.2H
Voltage rating
600 V
kVA rating
60 KVR
Detuned 4.2H harmonic tuning paired with a 60 kVAR rating delivers a clear business impact: cleaner power, reduced harmonic currents, and cooler operating equipment. This translates to measurable efficiency gains and improved motor longevity, especially in plants with heavy drive loads. The three-phase 600 V design and 59 A capacity ensure compatibility with typical industrial feeders, enabling straightforward system upgrades without major rewiring. The compact 32 in by 27 in by 21 in footprint and a 220 lb weight simplify installation in constrained spaces, reducing downtime during retrofits and panel upgrades. Compliance with UL 810, IEEE Std. 18, UL 508A, and CSA Std. C22.2 No. 190 lowers procurement risk and streamlines approvals for panel builders and integrators. The one-year warranty, plus five-year capacitor cell coverage, provides long-term asset protection and predictable maintenance planning. Designed for Eaton LV Unipak applications, it supports scalable harmonics control across multiple feeders and drives, offering reliable performance in modern factories.
Get a Quick Quote for a Eaton 60632HMURFY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60632HMURFY?
Enquire Now
FAQs
60632HMURFY is a three-phase, 600 V capacitor bank designed for integration with common LV switchgear and Eaton LV Unipak systems. It fits typical industrial panels and supports straightforward installation with standard wiring practices. Its compact footprint and standard voltage/current ratings help minimize retrofit complexity while maintaining compliance with UL and CSA standards.
Detuned 4.2H tuning shifts resonance away from dominant harmonic frequencies, reducing capacitor bank heating and voltage distortion. This results in lower Total Harmonic Distortion (THD), improved drive performance, and longer life for transformers and switchgear. It also helps minimize resonance risk when a facility runs multiple nonlinear loads like VFDs and rectifiers.
The unit carries UL 810, IEEE Std. 18, UL 508A, and CSA Std. C22.2 No. 190 certifications. These indicate compliance with safety standards for electrical equipment and control panels, easing commissioning, reducing procurement risk, and simplifying regulatory approvals for OEMs and panel builders.
Eaton offers a one-year warranty from installation or 18 months from shipment, whichever occurs first, with an additional five-year warranty on capacitor cells. For maintenance, monitor capacitor health, inspect connections, and verify tuning is intact after electrical events or drive commissioning to sustain reliability and performance.
Yes. With a 60 kVAR rating, 600 V operation, and detuned 4.2H tuning, the unit is well-suited for facilities with nonlinear loads and drives where power quality and uptime are critical. Its compact form factor and certified compliance support reliable integration into existing systems, helping maintain productivity and reduce unplanned outages.
