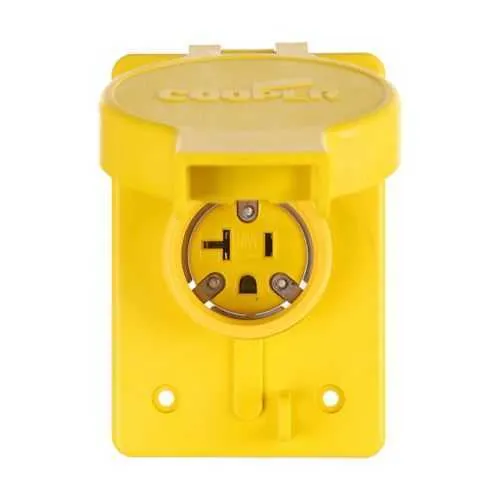

Eaton 60W33 Watertight Receptacle - IP66 cULus Listed
Part Number: 60W33
Quick Summary
Eaton 60W33 watertight straight blade single receptacle delivers 125V power for industrial panels. In damp or wet settings, moisture intrusion and corrosion drive maintenance costs and downtime. Its IP66 environmental rating and cULus listing help ensure safety and long service life in outdoor enclosures. Designed for quick, reliable panel installations, it supports #18-10 AWG back-wire terminations and a yellow, easily identifiable housing for safer, faster wiring in busy industrial environments.
Product Information
Extended Description
60W33 Eaton: Eaton Arrow Hart watertight straight blade single receptacle, #18-10 AWG, 20A, Industrial, Panel, 125V, Back wire, Yellow, Nickel-plated brass, IP66, Glass filled Nylon, 5-20R, Single, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade single receptacle
Catalog Number
60W33
UPC
040893687513
Product Length/Depth
3.1 in
Product Height
4.6 in
Product Width
4.25 in
Product Weight
0.25 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
5-20R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Single
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
Watertight IP66 design protects contacts in damp environments, reducing corrosion and downtime. This translates to longer service life and lower maintenance costs in washdown and outdoor installations. NEMA configuration 5-20R, 20A at 125V, two poles and three wires, ensures standard compatibility with common loads and existing electrical layouts. Back-wire termination and screw connections enable fast, secure field terminations, while the yellow housing enhances visibility during panel wiring in harsh environments. Nickel-plated brass contacts resist wear and corrosion, improving long-term conductivity, and the glass-filled nylon body provides rugged durability for industrial use. Panel mounting and core-pack packaging support efficient inventory management and rapid replacements in production lines, with packaging that simplifies stocking for contractors and OEMs. Torque guidance for #10-14 AWG and #8 AWG sizes helps installers avoid over-tightening, delivering safe, code-compliant terminations.
Get a Quick Quote for a Eaton 60W33
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W33?
Enquire Now
FAQs
The 60W33 is designed for panel mounting with back-wire or screw termination. It accepts #18-10 AWG conductors, and torque guidance is provided for #10-14 AWG (14-16 lbf-in) and #8 AWG (20 lbf-in). This combination supports fast, secure field terminations while maintaining reliable conductivity in demanding environments.
IP66 protection ensures robust resistance to dust ingress and powerful water jets, making the 60W33 suitable for damp and wet locations such as washdown areas and outdoor enclosures. This reduces the risk of moisture-related failures and extends service life in harsh industrial settings.
Yes. The unit is a two-pole, NEMA 5-20R receptacle rated for 20A at 125V, with back-wire and screw connection options. This aligns with common industrial loads and simplifies integration with existing control panels and equipment.
The 60W33 is cULus Listed, providing UL/CSA equivalence for safety and reliability in North American installations. Its IP66 rating additionally supports compliance for harsh environments, ensuring durable performance in damp or wet conditions.
The combination of IP66 protection, durable glass-filled nylon housing, and nickel-plated brass contacts reduces corrosion, maintenance, and replacement costs. Quick-install termination methods cut installation time, while panel-mount compatibility and core-pack packaging streamline sourcing and stocking for OEMs and maintenance teams, delivering measurable uptime and cost savings.
