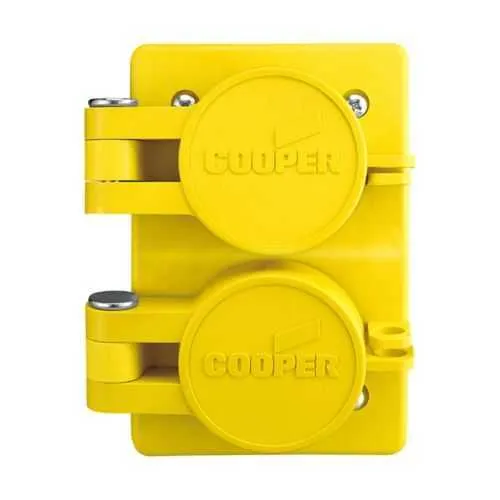

Eaton 60W33DPLX Watertight Duplex Receptacle - IP66
Part Number: 60W33DPLX
Quick Summary
The Eaton 60W33DPLX watertight straight blade duplex receptacle delivers reliable 125V power for demanding industrial panel and outdoor installations. In damp and washdown environments, moisture ingress and unreliable terminations are common pain points that slow maintenance. The unit carries IP66 environmental protection and is cULus Listed, helping meet stringent safety and performance standards in many facilities. Its panel-mount design with back-wire terminals streamlines wiring, reducing field labor and lifecycle costs, while the bright yellow housing improves visibility in cluttered equipment spaces. For engineers seeking durable, compliant power delivery in harsh environments, this receptacle offers a confident, long-term solution.
Product Information
Extended Description
60W33DPLX Eaton: Eaton Arrow Hart watertight straight blade duplex receptacle, #18-10 AWG, 20A, Industrial, Panel, 125V, Back wire, Yellow, Nickel-plated brass, IP66, Glass filled Nylon, 5-20R, Duplex, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade duplex receptacle
Catalog Number
60W33DPLX
UPC
040893687520
Product Length/Depth
3.62 in
Product Height
4.63 in
Product Width
4.25 in
Product Weight
1.2 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
5-20R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Duplex
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
IP66-watertight design with glass-filled nylon housing protects internal contacts from water and dust, translating to fewer field failures and longer service intervals in outdoor enclosures, washdown areas, and industrial plants. The 125V, 20A rating ensures compatibility with common panel power distribution tasks without overdesign, delivering dependable performance under load. NEMA 5-20R duplex configuration with back-wire connections and screw terminals enables fast, secure wiring for #18-10 AWG conductors, reducing installation time and improving terminations in cramped panels while maintaining code-compliant torque specs. Nickel-plated brass contacts provide corrosion resistance and low contact resistance, boosting reliability in humid or chemical-exposure environments, while the yellow housing aids identification during installation and maintenance. Compliant with cULus Listed and IP66, this receptacle is well-suited for industrial panels, outdoor fixtures, and wet-damp locations. Torque ratings specify 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG, ensuring proper installation across wire sizes. Core-pack packaging and a panel-mount design support bulk procurement and streamlined installation in high-volume environments, with back-wire wiring aligning to common 125V circuits and reducing the need for adapters.
Get a Quick Quote for a Eaton 60W33DPLX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W33DPLX?
Enquire Now
FAQs
The 60W33DPLX supports panel mounting with a back-wire wiring method, allowing #18-10 AWG conductors to be secured directly without compromising safety. The combination of back-wire and screw terminals provides flexibility for cramped panels and facilitates quick, repeatable terminations. Remember to observe the torque specification of 14-16 lbf-in for smaller conductors and 20 lbf-in for larger #8 AWG conductors to maintain code compliance.
This receptacle is rated for 125V, 20A with a NEMA 5-20R configuration, two-pole, three-wire. It is designed for industrial applications in damp or wet environments and carries IP66 protection. Use it in washdown areas, outdoor equipment enclosures, and panel assemblies where reliable, moisture-resistant power delivery is required.
Yes. The device features IP66 ingress protection and a glass-filled nylon body with nickel-plated brass contacts, specifically chosen to withstand damp, wet, and harsh industrial conditions. Its Watertight, straight blade duplex design minimizes moisture-related issues, making it ideal for outdoor installations, washdown stations, and rugged panels.
The 60W33DPLX is cULus Listed, confirming compliance with applicable U.S. and Canadian safety standards. Its IP66 rating provides robust environmental protection against dust and water ingress, supporting safe operation in challenging industrial environments and helping meet regulatory requirements for washdown and outdoor equipment.
In high-volume facilities, the back-wire termination and panel-mount design streamline installation, reducing field labor and downtime. The IP66 waterproofing lowers moisture-related failures, extending service intervals and reducing maintenance costs. With durable nickel-plated brass contacts and a glass-filled nylon body, long-term resistance to corrosion and impact translates to lower replacement rates and a favorable total cost of ownership.
