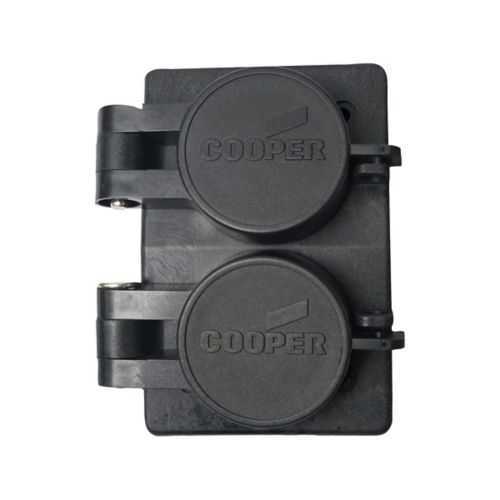

Eaton 60W33DPLXBK Watertight Duplex Receptacle - IP66
Part Number: 60W33DPLXBK
Quick Summary
Watertight duplex receptacle is a durable power connector designed for industrial panels and harsh environments. Engineers often contend with moisture ingress, corrosion, and downtime when selecting rugged, field-ready connectors. This model carries cULus listing and an IP66 rating for damp or wet locations, plus NEMA 5-20R compatibility to simplify panel wiring. Designed for panel mounting and back-wire termination, it reduces installation time and labor costs. Its glass-filled nylon housing and nickel-plated brass contacts deliver long-term durability in washdown environments, supporting reliability in demanding industrial applications and helping you meet stringent maintenance windows. Overall, it combines rugged performance with installation efficiency to boost uptime and safety in your electrical infrastructure.
Product Information
Extended Description
60W33DPLXBK Eaton: Eaton Arrow Hart watertight straight blade duplex receptacle, #18-10 AWG, 20A, Industrial, Panel, 125V, Back wire, Black, Nickel-plated brass, IP66, Glass filled Nylon, 5-20R, Duplex, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade duplex receptacle
Catalog Number
60W33DPLXBK
UPC
032664708534
Product Length/Depth
3.62 in
Product Height
4.63 in
Product Width
4.25 in
Product Weight
0.001 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
5-20R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Duplex
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
Feature: IP66 watertight protection with a two-pole, 3-wire NEMA 5-20R configuration. Business Impact: Protects equipment from moisture ingress and contaminants, reducing unplanned downtime in washdown areas and outdoor panels. Application: Industrial control panels and outdoor equipment where damp or wet conditions are present. Long-tail keywords: IP66 receptacle, watertight duplex, industrial panel mounting. Feature: 20A, 125V capability with back-wire and screw termination options. Business Impact: Flexible termination improves field adaptability and accelerates wiring during installation or retrofits. Application: Machinery feeds and power distribution in manufacturing lines. Long-tail keywords: 20A 125V receptacle, back-wire termination, screw terminals. Feature: Glass-filled nylon body and nickel-plated brass contacts. Business Impact: Enhanced durability and corrosion resistance for washdown environments, extending service life. Application: Harsh environments like food processing, water treatment, and outdoor enclosures. Long-tail keywords: glass-filled nylon, nickel-plated brass contacts, corrosion resistance. Feature: Torque-rated connections for #10-14 AWG and #8 AWG wires. Business Impact: Ensures reliable terminations with predictable install times, reducing rework. Application: Panel assembly and equipment wiring requiring precise torque control. Long-tail keywords: termination torque, lbf-in torque, AWG compatibility. Feature: Core pack packaging and panel-mount design. Business Impact: Streamlines stocking and reduces field handling time, improving project efficiency. Application: High-volume installations and service fleets. Long-tail keywords: core pack packaging, panel mounting receptacle, maintenance efficiency.
Get a Quick Quote for a Eaton 60W33DPLXBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W33DPLXBK?
Enquire Now
FAQs
The 60W33DPLXBK supports back-wire and screw termination methods, enabling flexible field wiring. It is designed for #18-10 AWG conductors with torque guidance: 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG. This mix reduces rework and ensures reliable, code-compliant terminations in industrial panels.
Key specs include 20A at 125V with a NEMA 5-20R two-pole configuration and three wires. The device is purpose-built for industrial use, offering a 125V rating and standard duplex receptacle functionality suitable for control panels, equipment feeds, and washdown environments.
Yes. The receptacle carries IP66 environmental protection, making it appropriate for damp and wet locations. Coupled with cULus listing, it supports reliable operation in challenging environments such as washdown zones, outdoor panels, and industrial enclosures while maintaining safety and compliance.
This model is cULus Listed and IP66 rated, with NEMA 5-20R compatibility. These certifications support compliance for installations in regulated facilities, providing assurance for enclosure protection, electrical safety, and durable performance in industrial settings.
The combination of IP66 protection, corrosion-resistant nickel-plated brass contacts, and a glass-filled nylon body reduces moisture-related failures and maintenance needs. Quick back-wire/screw terminations speed commissioning, lowering labor costs and downtime, which translates to a favorable return on investment in high-availability systems.
