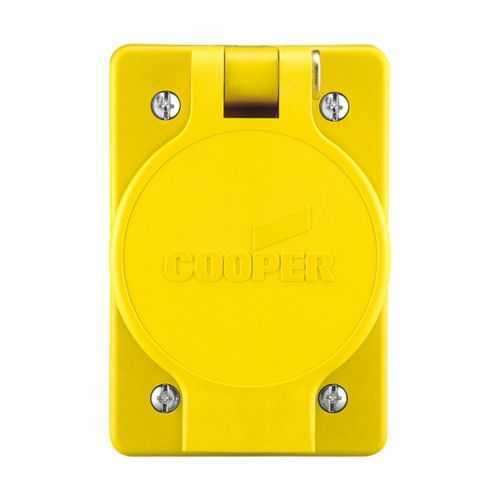

Eaton 60W47 watertight Receptacle - IP66
Part Number: 60W47
Quick Summary
Eaton 60W47 watertight receptacle provides reliable, IP66-rated power connections for damp industrial environments. In challenging outdoor or washdown settings, moisture intrusion can cause corrosion, intermittent contacts, and downtime. This cULus Listed unit uses a glass-filled nylon body with nickel-plated brass contacts, delivering robust performance at 125V and 15A in NEMA 5-15R configurations. Its panel-mount design with back-wire terminations simplifies installation, while a yellow housing enhances visibility in cluttered panels. Compatible with #18-10 AWG conductors, it supports secure field terminations and straightforward maintenance, helping you reduce risk and extend service life in demanding applications.
Product Information
Extended Description
60W47 Eaton: Eaton Arrow Hart watertight straight blade single receptacle, #18-10 AWG, 15A, Industrial, Panel, 125V, Back wire, Yellow, Nickel-plated brass, IP66, Glass filled Nylon, 5-15R, Single, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade single receptacle
Catalog Number
60W47
UPC
040893687476
Product Length/Depth
3.1 in
Product Height
4.6 in
Product Width
4.25 in
Product Weight
0.25 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
5-15R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Single
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
Feature → Business Impact → Application: The watertight construction with IP66 rating protects contacts from water and dust ingress, reducing failure rates in harsh environments and improving overall equipment uptime in industrial panels. This translates to lower maintenance costs and fewer unplanned shutdowns in production lines and outdoor enclosures. Feature → Business Impact → Application: Nickel-plated brass contacts deliver durable, low-resistance connections that resist corrosion, ensuring stable performance over time and less rework during assembly or service calls. Feature → Business Impact → Application: Glass-filled nylon housing provides high strength-to-weight ratio and chemical resistance, enabling longer service life in harsh washdown environments and conveyors. Feature → Business Impact → Application: Panel-mount installation with back-wire termination supports quick, tool-efficient wiring for #18-10 AWG conductors, reducing installation time and nesting friction in crowded panels. Feature → Business Impact → Application: 125V, 15A NEMA 5-15R configuration aligns with common industrial outlets, simplifying cross-compatibility with existing Eaton Arrow Hart accessories and ensuring reliable, code-compliant power distribution in damp/wet settings.
Get a Quick Quote for a Eaton 60W47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W47?
Enquire Now
FAQs
The 60W47 is rated for #18-10 AWG conductors and supports back-wire termination as well as screw connections, enabling fast, secure terminations in panel assemblies. This simplifies field wiring, reduces labor time, and helps ensure compliant, vibration-resistant connections in harsh environments.
Key specs include 125V operating voltage, 15A amperage, NEMA 5-15R configuration, and an IP66 environmental rating for damp/wet conditions. It is designed for two-pole operation with three wires, and is cULus Listed for industrial reliability in challenging settings.
The 60W47 is ideal for panel-mounted power receptacles in washdown areas, outdoor enclosures, conveyors, and other equipment exposed to moisture or dust. Its durable construction, IP66 rating, and compatibility with standard AWG ranges make it suitable for factory floors and rugged outdoor installations.
The 60W47 carries cULus Listing, confirming compliance with safety standards for North American markets. Its IP66 rating ensures splash and dust protection, while the NEMA 5-15R configuration aligns with common electrical infrastructure in industrial environments.
Durable nickel-plated brass contacts and a glass-filled nylon body resist corrosion and mechanical wear, reducing replacement frequency. The panel-mount, back-wire design minimizes installation time, and the rugged IP66 construction lowers downtime and maintenance costs in washdown lines and outdoor enclosures.
