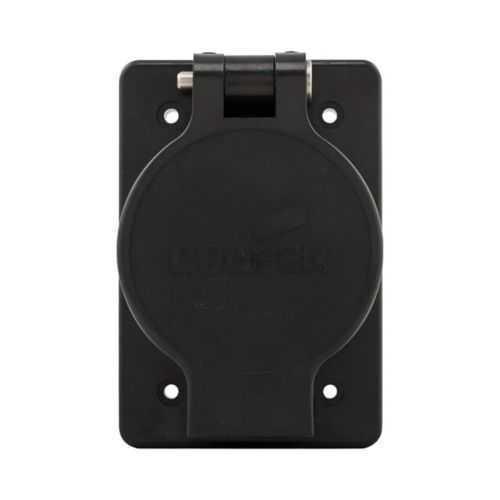

Eaton 60W48BK Watertight Receptacle - IP66
Part Number: 60W48BK
Quick Summary
Eaton 60W48BK watertight straight blade single receptacle provides a rugged power connection for industrial panels. In harsh environments, unreliable seals, corrosion, and back-wire wiring can trigger downtime and safety concerns. With IP66 environmental resistance and cULus listed certification, this receptacle stands up to damp or wet conditions while meeting safety standards. Panel builders and maintenance teams benefit from a straightforward back-wire and screw connection, enabling fast field terminations and reliable long-term performance. Its glass-filled nylon housing and nickel-plated brass contacts deliver durability in demanding applications, helping you reduce maintenance cycles and ensure compliant, consistent power delivery across machines and enclosures.
Product Information
Extended Description
60W48BK Eaton: Eaton Arrow Hart watertight straight blade single receptacle, #18-10 AWG, 20A, Industrial, Panel, 250V, Back wire, Black, Nickel-plated brass, IP66, Glass filled Nylon, 6-20R, Single, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade single receptacle
Catalog Number
60W48BK
UPC
032664708565
Product Length/Depth
3.1 in
Product Height
4.6 in
Product Width
4.25 in
Product Weight
0.001 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
6-20R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Single
Voltage rating
250V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
Feature: Watertight IP66 design protects against ingress in damp or wet environments. Benefit: Reduces unplanned downtime and extends equipment life by preventing corrosion and water intrusion. Application: Ideal for outdoor panels, washdown areas, and harsh factories where reliability matters. Feature: 250V, 20A, NEMA 6-20R two-pole configuration with three wires. Benefit: Supports standard industrial loads with correct electrical clearance and safe, code-compliant power distribution. Application: Motor starters, control panels, and equipment enclosures requiring robust supply to single receptacles. Feature: Back-wire plus screw connection and panel mounting. Benefit: Streamlines installation, improves terminations, and minimizes field wiring errors. Application: High-volume installations in manufacturing lines where speed and repeatability are critical. Feature: Glass-filled nylon face/body with nickel-plated brass contacts. Benefit: Delivers high mechanical strength, chemical resistance, and enduring conductivity in demanding environments. Application: Environments with frequent washdowns, UV exposure, or abrasive handling. Feature: cULus Listed and IP66-rated, with core-pack packaging. Benefit: Enhances compliance and procurement efficiency, reducing risk during audits and simplifying stocking. Application: Industrial supply chains and spec-driven projects that require traceable certifications and durable, ready-to-install components.
Get a Quick Quote for a Eaton 60W48BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W48BK?
Enquire Now
FAQs
The 60W48BK supports both back-wire and screw terminal connections, with panel-mount installation. This dual-terminal approach simplifies field terminations, enables secure, vibration-resistant connections, and reduces the time required for wiring multiple receptacles in industrial enclosures. It is compatible with #18-10 AWG conductors and designed for reliable long-term operation in demanding environments.
This receptacle is rated for 20A at 250V and uses a NEMA 6-20R two-pole configuration with three wires. Its compatibility includes industrial loads that require a single watertight receptacle with robust sealing and panel mounting. It supports standard control panels, motors, and equipment enclosures while meeting cULus safety standards.
Yes. The 60W48BK is IP66-rated for damp/wet environments, providing ingress protection against water and dust. Its glass-filled nylon body and nickel-plated brass contacts offer corrosion resistance, making it suitable for outdoor installations, washdown areas, and harsh factories where moisture exposure is common.
The receptacle is cULus Listed, underscoring compliance with North American safety standards. Its IP66 rating further demonstrates performance in damp/wet conditions. This combination supports regulatory acceptance in industrial facilities and helps streamline procurement and audits for electrical panel assemblies.
Expect long service life due to the nickel-plated brass contacts and glass-filled nylon housing, which resist wear and corrosion in tough environments. For maintenance, inspect the panel mounting and terminations during routine preventive checks, ensure the back-wire screws remain tight, and verify the IP66 seals remain intact after washing or exposure to moisture. Replacement parts are readily available from Eaton.
