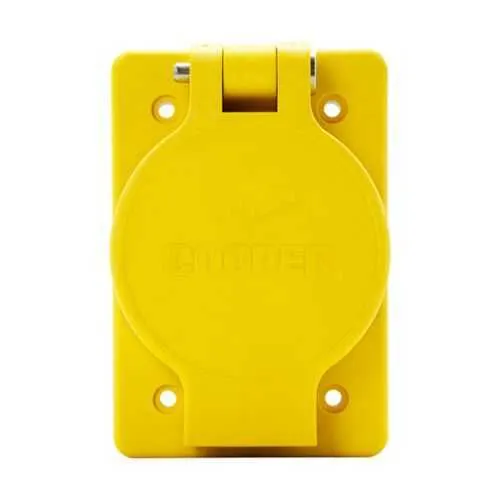

Eaton 60W49 Watertight Receptacle - IP66
Part Number: 60W49
Quick Summary
Eaton 60W49 watertight straight blade receptacle provides reliable panel-mount power connections for industrial equipment. In harsh environments, moisture, dust, and vibration can disrupt power delivery and trigger costly downtime. With cULus listing, IP66 protection, and a glass-filled nylon body, it keeps critical circuits safeguarded. Designed for back-wire panel installations using #18-10 AWG conductors, it delivers rugged, maintenance-friendly performance while meeting stringent safety standards. This combination translates to reduced service costs and higher uptime for facilities that depend on steady, safe electrical power in rugged conditions.
Product Information
Extended Description
60W49 Eaton: Eaton Arrow Hart watertight straight blade single receptacle, #18-10 AWG, 15A, Industrial, Panel, 250V, Back wire, Yellow, Nickel-plated brass, IP66, Glass filled Nylon, 6-15R, Single, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade single receptacle
Catalog Number
60W49
UPC
040893687490
Product Length/Depth
3.1 in
Product Height
4.6 in
Product Width
4.25 in
Product Weight
0.25 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
6-15R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Single
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
250V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
IP66 watertight rating protects the receptacle in damp or wet environments, reducing corrosion and failure risk while extending service intervals and uptime for outdoor equipment and washdown areas. Feature → Business Impact → Application: IP66 protection minimizes water ingress, lowering maintenance costs and unplanned downtime in rugged industrial locations like outdoor enclosures and chemical plants. Feature → Business Impact → Application: 15A, 250V, NEMA 6-15R configuration supports common industrial loads with reliable power delivery in control panels and vehicle charging stations. Feature → Business Impact → Application: Back-wire with screw terminals and #18-10 AWG compatibility speeds installation, reduces labor, and improves field reliability in panel-mount applications. Feature → Business Impact → Application: Glass-filled nylon body and nickel-plated brass contacts provide durability and corrosion resistance, extending life in harsh environments such as foundries and food-processing facilities. Feature → Business Impact → Application: Panel-mount, single-receptacle design simplifies wiring schemes and improves layout efficiency in industrial control panels, conveyor systems, and washdown-ready equipment. Feature → Business Impact → Application: cULus Listed certification ensures compliance with key electrical safety standards, supporting risk management and faster project approvals for regulated environments.
Get a Quick Quote for a Eaton 60W49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W49?
Enquire Now
FAQs
Installation is panel-mount with back-wire terminals and screw connections designed for #18-10 AWG conductors. Prepare the panel opening for a secure fit, connect conductors to the back-wire terminals, tighten to the recommended torque, and verify the IP66 sealing perimeter after mounting. Use the included core-pack configuration for field reliability and long service life.
60W49 is a two-pole, three-wire receptacle configured as a 6-15R, rated for 15A and 250V. It supports #18-10 AWG conductors with screw and back-wire connections. The unit is designed for industrial panels and is color-coded yellow with a nickel-plated brass contact system for durability.
Yes. The 60W49 carries IP66 environmental resistance and is specified for damp/wet conditions. Its glass-filled nylon body and nickel-plated contacts provide corrosion resistance, making it suitable for outdoor control panels, washdown zones, and other harsh industrial locations without compromising safety or performance.
The 60W49 is cULus Listed, confirming compliance with essential safety standards for North American markets. Its IP66 rating further certifies its suitability for damp and wet environments, while the overall construction meets industrial reliability requirements for rugged equipment and panel installations.
Industrial applications that require reliable, watertight power delivery in panels and enclosures benefit most. Use cases include outdoor control panels, washdown-ready machinery, conveyors, and equipment exposed to moisture, vibration, or dust, where quick, secure back-wire panel wiring and durable contacts reduce maintenance and extend uptime.
