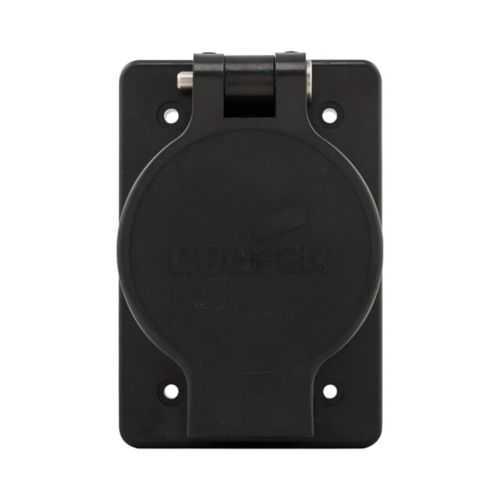

Eaton 60W49BK Watertight Receptacle - IP66 Rating
Part Number: 60W49BK
Quick Summary
Eaton Arrow Hart watertight straight blade single receptacle is a rugged 15A/250V outlet ideal for damp and wet industrial enclosures. Engineers and procurement teams often grapple with corrosion and unreliable connections in washdown environments, and this receptacle provides a sealed, IP66-rated solution with convenient back-wire termination. The unit carries cULus Listed protection and IP66 environmental resistance, ensuring dependable operation in challenging conditions. With its panel-mount design, nickel-plated brass contacts, and glass-filled nylon body, it delivers durable, low-maintenance power delivery for industrial equipment while offering straightforward installation and global compatibility. This combination helps maintain uptime and simplify sourcing across multiple facilities.
Product Information
Extended Description
60W49BK Eaton: Eaton Arrow Hart watertight straight blade single receptacle, #18-10 AWG, 15A, Industrial, Panel, 250V, Back wire, Black, Nickel-plated brass, IP66, Glass filled Nylon, 6-15R, Single, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade single receptacle
Catalog Number
60W49BK
UPC
032664708589
Product Length/Depth
3.1 in
Product Height
4.6 in
Product Width
4.25 in
Product Weight
0.28 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
6-15R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Single
Voltage rating
250V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
IP66-rated watertight protection minimizes ingress and corrosion risk, safeguarding critical controls in damp environments and reducing downtime in washdown settings. The result is improved reliability for industrial machinery and enclosure systems where moisture exposure is expected. Back-wire terminations support fast, error-free wiring for #18-10 AWG conductors, shortening install times and lowering field termination failure rates during panel upgrades or new installations. This receptacle’s NEMA 6-15R two-pole configuration delivers 15A at 250V, ensuring compatibility with common industrial cords and enabling robust power delivery to motors and controls in harsh environments. Nickel-plated brass contacts provide dependable conductivity and resistance to corrosion, extending service life in wet or humid areas and reducing maintenance costs. The glass-filled nylon housing adds ruggedness and chemical resistance, improving impact tolerance in rugged industrial panels. Panel mounting simplifies integration into standard electrical enclosures and supports scalable, modular installations across facilities.
Get a Quick Quote for a Eaton 60W49BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 60W49BK?
Enquire Now
FAQs
60W49BK supports back-wire termination for #18-10 AWG conductors and is designed for panel mounting with screw connections, enabling quick, secure installations in industrial enclosures without special tools or adapters.
The receptacle is 15A, 250V, with a NEMA configuration of 6-15R and two poles. It supports three wires and a single receptacle type suitable for industrial power delivery in harsh environments.
Yes. It features IP66 environmental resistance and is rated for damp and wet conditions, making it appropriate for washdown zones and outdoor/industrial enclosures where moisture exposure is common.
The unit is cULus Listed, indicating UL safety certification for North American usage, and it carries IP66 protection for environmental sealing, which helps ensure compliance and reliability in challenging industrial settings.
Nickel-plated brass contacts and glass-filled nylon construction provide durable conductivity and chemical resistance, reducing corrosion-related maintenance and extending service life in demanding environments, which translates to lower total cost of ownership.
