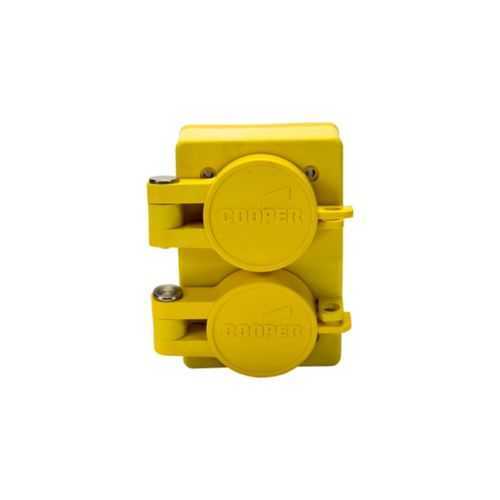

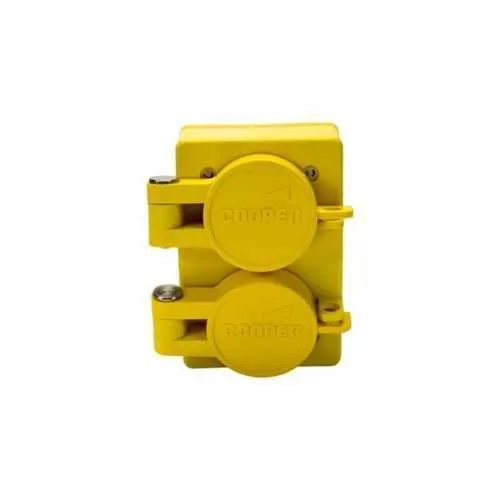

Eaton 60W49DPLX Watertight Duplex Receptacle - IP66
Part Number: 60W49DPLX
Quick Summary
The Eaton 60W49DPLX watertight duplex receptacle is a panel-mount power connection designed for harsh industrial environments. It addresses the recurring challenge of reliable terminations and ingress protection in damp, washdown, or outdoor locations. With IP66 protection and cULus Listed certification, this receptacle meets stringent safety and reliability standards. The combination of back-wire capability, a robust glass-filled nylon body, and nickel-plated brass contacts delivers durable, maintenance-friendly performance across demanding applications while supporting efficient installation and ongoing uptime for your equipment and panels.
Product Information
Extended Description
60W49DPLX Eaton: Eaton Arrow Hart watertight straight blade duplex receptacle, #18-10 AWG, 15A, Industrial, Panel, 250V, Back wire, Yellow, Nickel-plated brass, IP66, Glass filled Nylon, 6-15R, Duplex, Screw, Glass-filled nylon, Core pack
Product Name
Eaton Arrow Hart watertight straight blade duplex receptacle
Catalog Number
60W49DPLX
UPC
040893687506
Product Length/Depth
3.62 in
Product Height
4.63 in
Product Width
4.25 in
Product Weight
1.24 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
6-15R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Duplex
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
250V
Environmental conditions
Damp/wet
Environmental resistance
IP66
Allowable wire size
#18-10 AWG
Connection type
Screw
Mounting method
Panel
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Glass filled nylon
Material
Glass-filled nylon
Style type
Standard
Type
Complex environment
IP66 rated protection reduces water ingress and corrosion risk, delivering longer service life and lower maintenance costs in outdoor and washdown areas. This supports enhanced equipment availability and compliance for facilities with stringent environmental requirements. NEMA configuration 6-15R and a 15A at 250V rating align with common industrial loads, ensuring compatibility with motors, drives, and control circuits while minimizing spare part complexity. Back-wire and screw termination options enable versatile wiring in tight panels, speeding field assembly and reducing installation time. The glass-filled nylon housing and nickel-plated brass contacts provide robust chemical resistance and reduced wear, contributing to lower repair frequency in food processing, chemical, or rugged manufacturing settings. Color coding in yellow enhances visibility for safety programs and zone marking, aiding quick identification during maintenance. Panel-mount design and core-pack packaging streamline stocking, quotation accuracy, and on-site deployment for panel builders and integrators.
