Eaton 62A8002ACEM1 Pauluhn RigPro Linear Fluorescent - IP66
Part Number: 62A8002ACEM1
Quick Summary

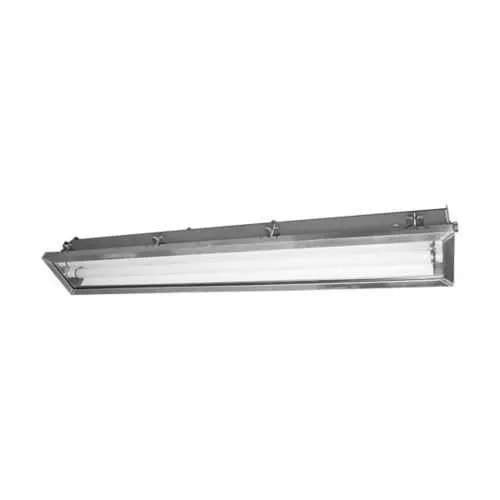

The Eaton 62A8002ACEM1 Pauluhn RigPro linear fluorescent fixture provides reliable lighting for hazardous-location areas. Facilities struggle with corrosion, vibration, and meeting NEC/CEC codes while maintaining uptime and safety in harsh environments. Key certifications—IP66 protection, a NEMA 4 enclosure, and NEC Class I Division 2 / Zone 2 ratings—support compliant operation in oil, gas, and chemical settings. Designed for hazardous locations, it can be equipped with an emergency battery back-up ballast and a 24W, 2 ft lamp to reduce downtime and maintenance costs. In practice, this combination translates to safer installations, quicker inspections, and a clearer path to compliance across industrial facilities.
Product Information
Extended Description
62A8002ACEM1 Eaton: Eaton Crouse-Hinds series Pauluhn RigPro linear fluorescent light fixture,1/2" entry ,50/60 Hz,2 ft lamp,Fluorescent,Clear polycarbonate lens,T12HO RDC,Al,Emergency battery back-up ballast,one lamp,277V maximum,Dead end,120-277 Vac,24W
Product Name
Eaton Crouse-Hinds series Pauluhn RigPro linear fluorescent light fixture
Catalog Number
62A8002ACEM1
UPC
662276384231
Product Length/Depth
24.5 in
Product Height
8 in
Product Width
7.25 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Light type
T12HO RDC
Lamp length
2 ft
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Style
Dead end
Wattage
24W
Lens material
Clear polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum
Crouse-Hinds series Pauluhn RigPro Linear Fluorescent catalog page
IF LBL1380 - Pauluhn RigPro Linear Fluorescent
Eaton Specification Sheet - 62A8002ACEM1
IP66 and NEMA 4 enclosure protection guard against dust, water ingress, and corrosion, reducing maintenance frequency and extending service life in wash-down and harsh environments. This robustness translates to lower total cost of ownership for hazardous-location lighting projects across chemical plants and offshore facilities. The business impact is proven uptime and safer work environments, especially where routine cleaning and exposure to moisture are common. Application focus includes industrial floors, corridors, and outdoor enclosures that demand durable illumination with minimal service interruptions. The enclosure also simplifies inspections by withstanding demanding conditions without compromising performance. Long-term reliability supports multi-site deployments with consistent performance in harsh settings.
Get a Quick Quote for a Eaton 62A8002ACEM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 62A8002ACEM1?
Enquire Now
FAQs
This fixture supports 1/2" conduit entries, a dead-end mounting style, and a 24W 2 ft fluorescent lamp (T12HO RDC) with 120–277 VAC operation at 50/60 Hz. The rugged aluminum housing and clear polycarbonate lens are designed to withstand Class I, Division 2 and Zone 2 conditions, simplifying retrofits and new installations in restricted areas.
The RigPro unit carries NEC/CEC compliance with Hazardous/Classified Location ratings, including Class I Division 2 and Zone 2, along with a NEMA 4 enclosure and IP66 ingress protection. These certifications validate suitability for oil, gas, chemical, and other hazardous settings, helping reduce regulatory risk and streamline project approvals.
The fixture includes an emergency battery back-up ballast for one-lamp operation, ensuring illumination during power interruptions. This enhances exit-path visibility and safety compliance in critical areas. For maintenance, the single-lamp configuration simplifies testing and reduces spare parts inventory while meeting safety standards in hazardous locations.
Yes. With Class I Division 2 / Zone 2 ratings, a rugged NEMA 4 enclosure, IP66 protection, and NEC/CEC compliance, it is well-suited for oil and gas environments where exposure to moisture, dust, and corrosive agents is common. The 24W, 2 ft lamp configuration provides efficient lighting for long runs without excessive power demand.
The unit measures approximately 24.5 in in length, 8 in height, and 7.25 in width, weighing about 17 lb. It features a 1/2" entry and dead-end style mounting, allowing flexible conduit termination and straightforward integration into existing hazardous-location electrical layouts while maintaining safety margins and space planning.
