Eaton 62A8004ADEM1 Linear Light Fixture - IP66
Part Number: 62A8004ADEM1
Quick Summary

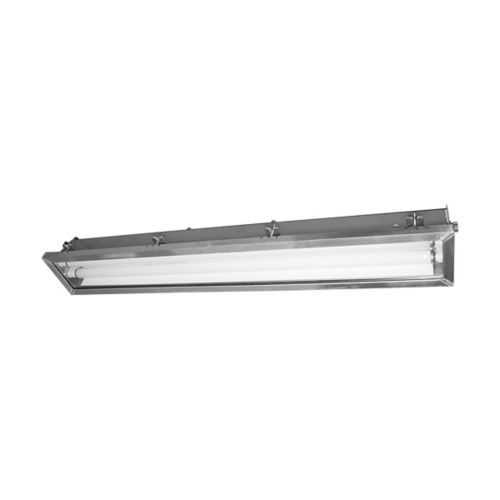

The Eaton 62A8004ADEM1 Linear Fluorescent Light Fixture delivers reliable illumination for hazardous and classified locations. This through-feed, 4 ft luminaire is designed to withstand demanding environments, reducing maintenance and downtime. Many facilities struggle with fixtures that fail in damp, dusty, or explosive atmospheres; this model addresses that by meeting IP66 ingress protection and NEC/CEC standards. With an aluminum housing, clear polycarbonate lens, and an emergency battery back-up ballast, it provides continuous lighting during power outages. Coupled with 120-277 Vac operation and 50/60 Hz compatibility, it supports common industrial power systems while delivering energy-efficient 48W performance. In short, it blends safety, reliability, and ease of installation to support steady production uptime.
Product Information
Extended Description
62A8004ADEM1 Eaton: Eaton Crouse-Hinds series Pauluhn RigPro linear fluorescent light fixture,1/2" entry ,50/60 Hz,4 ft lamp,Fluorescent,Clear polycarbonate lens,T12HO RDC,Al,Emergency battery back-up ballast,one lamp,277V maximum,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn RigPro linear fluorescent light fixture
Catalog Number
62A8004ADEM1
UPC
662276384309
Product Length/Depth
48.5 in
Product Height
8 in
Product Width
7.25 in
Product Weight
22.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Aluminum
Light type
T12HO RDC
Lamp length
4 ft
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Entry size
1/2"
Style
Through feed
Wattage
48W
Lens material
Clear polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum
Crouse-Hinds series Pauluhn RigPro Linear Fluorescent catalog page
IF LBL1380 - Pauluhn RigPro Linear Fluorescent
Eaton Specification Sheet - 62A8004ADEM1
IP66 ingress protection and hazardous location ratings enable installation in wash-down and harsh environments, reducing maintenance cycles and ensuring safety compliance in chemical plants, mining operations, and offshore facilities. The emergency battery back-up ballast maintains critical illumination during power outages, supporting safe egress and uninterrupted process control, which lowers downtime costs. The through-feed design with a 1/2" entry and 4 ft T12HO RDC lamp configuration offers flexible, scalable wiring and straightforward retrofits for long runs across plant aisles and service corridors. Aluminum housing with a clear polycarbonate lens provides corrosion resistance and high impact resistance, sustaining performance in dusty or corrosive atmospheres and minimizing replacement frequency. Compatibility with 120-277 Vac and 50/60 Hz supports diverse electrical systems, while NEC/CEC compliance underpins code-approved installations and enterprise safety programs. Overall, this fixture delivers reliable performance, easier maintenance, and measurable life-cycle cost reductions in demanding industrial environments.
Get a Quick Quote for a Eaton 62A8004ADEM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 62A8004ADEM1?
Enquire Now
FAQs
The 62A8004ADEM1 uses a through-feed design with a 1/2" entry and accepts a 4 ft T12HO RDC lamp, aligning with standard Pauluhn RigPro configurations. Its 120-277 Vac, 50/60 Hz operation supports common plant wiring, enabling straightforward retrofits and minimal rewiring during upgrades.
It carries NEC/CEC compliance with Hazardous/Classified Locations ratings including Class I, Division 2 and Zone 2, Class II Division 2, Class III, and a NEMA 4 enclosure with IP66 ingress protection, making it suitable for wash-down and rugged industrial environments.
Specifications include 4 ft length, 48W, 120-277 Vac input, 50/60 Hz operation, one-lamp configuration, and an emergency battery back-up ballast. The lens is clear polycarbonate and the housing is aluminum, with a 1/2" entry through-feed for flexible wiring routes.
Ideal for hazardous locations in chemical processing, oil & gas, mining, and heavy manufacturing, especially where wash-downs, dust, and moisture are present. The IP66/NEMA 4 ratings and rugged aluminum housing ensure long service life in tough environments.
Reduced downtime from reliable operation in hazardous environments, thanks to IP66/NEMA 4 protection and emergency lighting. The 48W efficiency, long service life, and low maintenance needs lower total cost of ownership while meeting code requirements for critical areas.
